ZS-X14 400W BLDC 3-Phase Brushless Motor Controller Driver Hallless DC Motor Drive Board #V5 1226165

ZS-X14 400W BLDC 3-Phase Brushless Motor Controller Driver Hallless DC Motor Drive Board #V5 1226165

25,000 IQD
25,000 IQD
Sale تم نفاذ المنتج
ZS-X14 400W BLDC 3-Phase Brushless Motor Controller Driver Hallless DC Motor Drive Board

كارت تشغيل محركات البرشليس بقدرة 400 واط بجهد من 6 الى 36 فولت وتيار 20 امبير

يتوفر بسعر 25,000 دينار

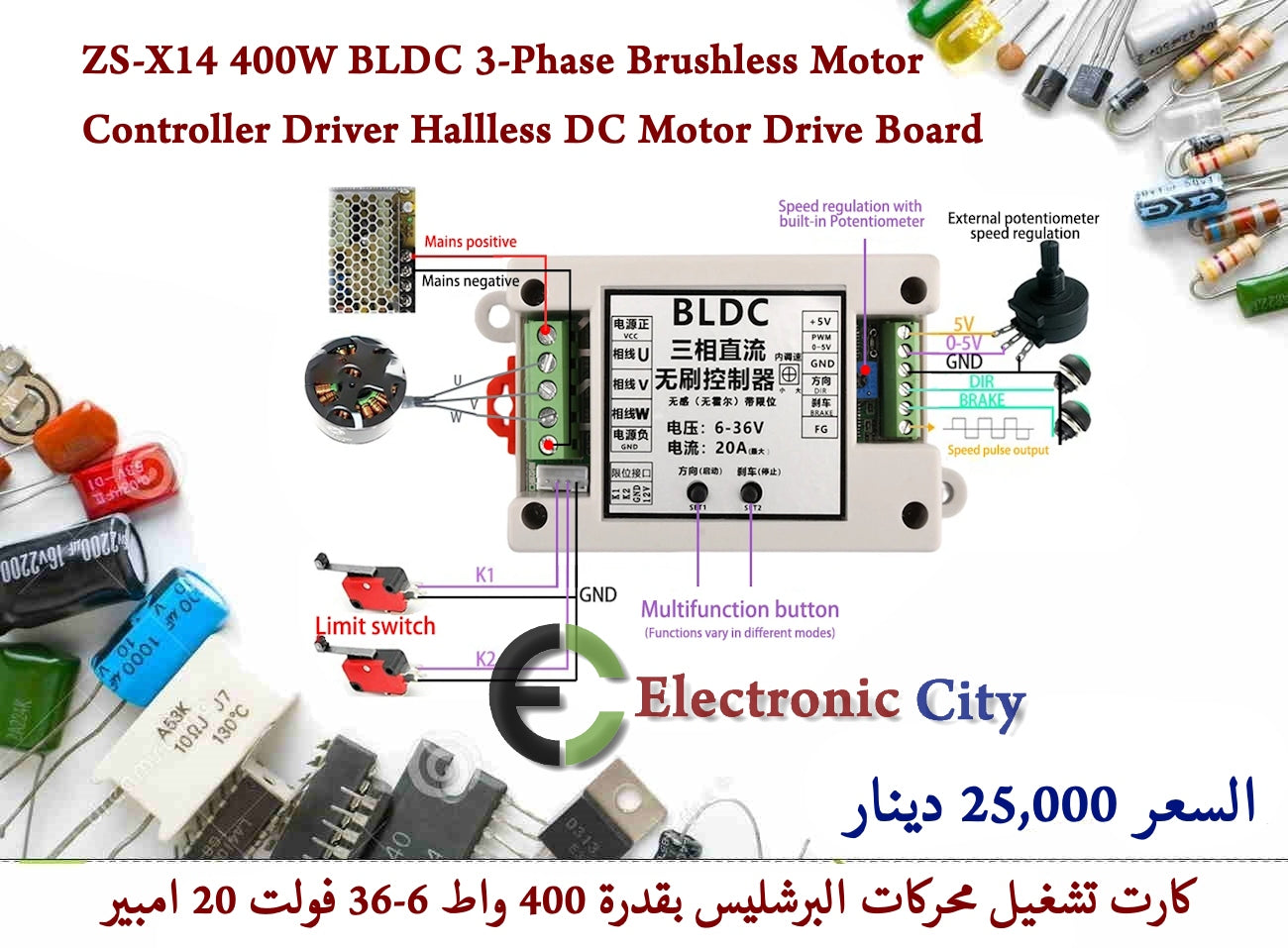

Interface Description:

1. U V W 3-phase DC output connected to brushless motor

2. 5V GND The motherboard comes with 5V (external output current within 100MA)

3. VCC GND drive main power supply (external DC power supply)

4. FG speed pulse signal output (the shop has matching tachometers for sale)

5. DIR forward and reverse control, low level active (external switch can be connected)

6. BRAKE brake control active brake active low level (external switch can be connected)

7.0-5V 1-4.2V PWM speed control signal three input terminals (the board comes with a potentiometer for speed control, or an external 0-5V analog PWM duty cycle signal input for speed control)


Motherboard Specifications:

Product name: ZS-X14

Working voltage: 6-30V (limit 36V)

Drive current: rated 18A, plus heat dissipation treatment 25A

Power: Rated 250W-300W, peak 400W (please leave a margin for use)

Overcurrent protection: yes

Locked rotor protection: yes (the current will automatically drop after the locked rotor and run in intervals)

Over-temperature protection: yes (over-temperature power is halved)

Maximum speed: 224000 RPM (2-pole motor), 74000 RPM (6-pole motor), 40000 RPM (12-pole motor), 35000RPM (14-pole motor)
