Electronic City المدينة الالكترونية

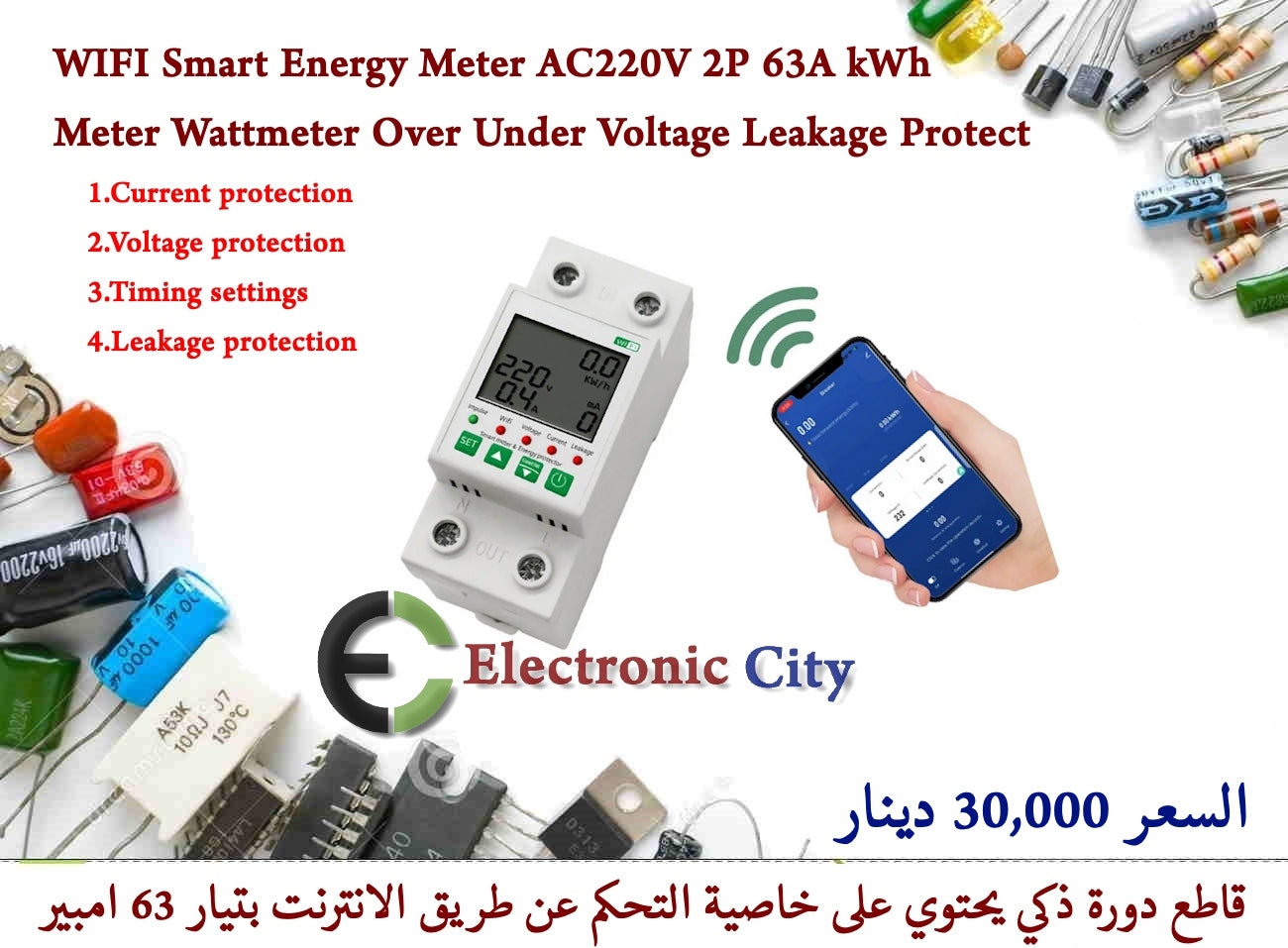

WIFI Smart Energy Meter AC220V 2P 63A kWh Meter Wattmeter Over Under Voltage Leakage Protect #V9 1226171
WIFI Smart Energy Meter AC220V 2P 63A kWh Meter Wattmeter Over Under Voltage Leakage Protect #V9 1226171
Regular price
35,000 IQD
Regular price
Sale price
35,000 IQD
Unit price
/
per
Couldn't load pickup availability
WIFI Smart Energy Meter AC220V 2P 63A kWh Meter Wattmeter Over Under Voltage Leakage Protect
قاطع دورة ذكي يحتوي على خاصية التحكم عن بعد عن طريق الانترنت بتيار يصل الى 63 امبير
يحتوي على خاصية الحماية من ارتفاع الجهد او انخفاضه ( يمكن معايرته )
ويحتوي على حماية من تجاوز الحمل التيار المحدد ( يمكن معايرتة من 1 الى 63 امبير )
يحتوي على حماية من الصعق الكهربائي ( يمكن معايرته )
يحتوي على تايمر ( يمكن معايرته )
يحتوي على شاشة تعرض الفولتية والتيار والقدرة المستهلكة
يتوفر بسعر 35,000 دينار
Features:
1.Current protection
2.Voltage protection
3.Timing settings
4.Leakage protection
5.Remote control anytime, anywhere, bid farewell to manual, and achieve intelligent life
Parameters:
Specification and model: AC220V
Working voltage range: AC80-400V (single-phase)
Rated current: 63A
Frequency: 50/60Hz
Number of poles: 2P
Leakage action current: 0.03A
Leakage action characteristics: non delay type
Installation method: guide rail type
Wiring method: rail type
Tripping method: undervoltage tripping
Protection type: Leakage protection
Release type: undervoltage release
Distribution Network Description
Use the mobile scanning tool to scan the OR code on the left and search for "work with Tuya app" in the mobile application market to download and install
App (connect your phone to your home Wi Fi and launch the "Graffiti Smart" app. (Follow the instructions in the app to register/log in to an app account and add a new device.) After adding a new device, you can use the app to easily control your device. The actual released version of the APP shall prevail
Network Settings
Launch the 'work with Tuya app' app and log in Click on the "+" in the upper right corner to enter the device add settings page.
Click on 'All Devices' to find the' Energy 'option for selection. Turn on the power supply of the electricity meter, press and hold for 5 seconds until the network indicator light flashes quickly, and then click the "Confirm Indicator Light Flashes Quickly" button
Enter the password to connect to Wi Fi, only supports 2.4G wireless networks, not 5G wireless networks. (Currently, the presence of Chinese characters in Wi Fi names and passwords is not supported, which may prevent the app from adding new devices.) Click "confirm" and wait for the connection. After the connection is completed and the device is successfully added, the installation space for the device can be set. The switch button and central power button can control the power on/off of the device.
