W1213 AC 220V LCD Digital Thermostat Cool-Heat Smart Temperature Controller with Timer #KK

W1213 AC 220V LCD Digital Thermostat Cool-Heat Smart Temperature Controller with Timer #KK

16,500 IQD
16,500 IQD
Sale تم نفاذ المنتج

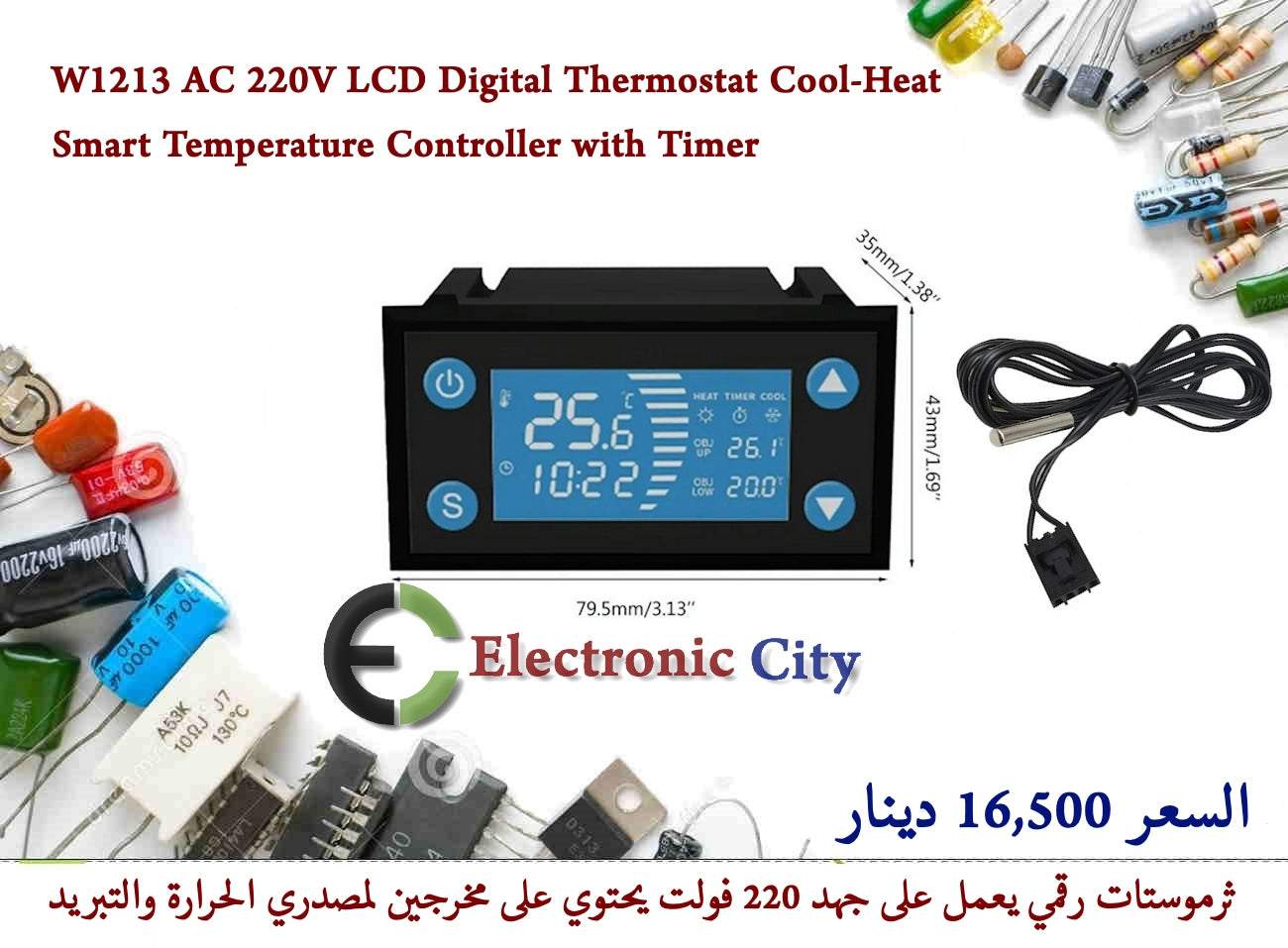

W1213 AC 220V LCD Digital Thermostat Cool-Heat Smart Temperature Controller with Timer

ثرموستات رقمي مزود بشاشة كبيرة بمدى قياس من -40 الى 120 درجة سيليزية
يعمل على جهد 220 فولت بمخرجين ( مصدر تبيرد + مصدر حرارة )
يستخدم للسيطرة على درجات الحرارة ومزود بتايمر
مزود بحساس بطول 1 متر


يتوفر بسعر 16,500 دينار

Product parameters:

Product name: Intelligent temperature controller
Product model: W1213
Power supply voltage: AC110-220V
Working frequency: 50HZ
Temperature range: -40~+120°C
Temperature measurement accuracy: ±0.5°C
Sensor cable length: 100CM
Size: 79.5*43*35mm
Shell material: surface shell ABS, bottom shell flame retardant ABS
Display panel description
Heat (corresponding icon display): heating mode, in heating mode, heating
The relay works.
Cool (corresponding icon display): Cooling mode, in cooling mode, cooling
The relay works.
Timer: Timer switch, in timer mode, the icon flashes
OBJ LOW: Set lower limit of target temperature
OBJ HIGH: target temperature setting upper limit
Horizontal marquee: increasing. Going up means heating decreasing and going down means cooling


Key Description:

1. Power button
①In the power-on state, long press to power off
②In the shutdown state, long press to turn on
③In the setting mode, short press to confirm and press again to return to the home page display
temperature.
2. Set key
①Long press to enter the setting mode option
②In the setting mode option, short press to confirm the currently selected setting mode.
3. Minus key
In the setting mode interface, short press-times to subtract 1, long press to continue to subtract
In the non-setting interface, long press to cancel the timing time.
4. Add key
In the setting mode interface, short press--times to increase by 1, long press to continue to increase.
In the non-setting interface, short press to view the timer shutdown time setting value, long press
timing.
5. Combination keys
Setting key + number minus (restore factory settings)
In the power-on state, pressing the key combination at the same time will restore the factory settings (long press)


Mode Description:

Under normal operation, the LCD screen displays the real-time measured value of the current temperature, and
Automatic recognition and conversion of cooling and heating working modes.
1. Cooling mode:
①When the real-time temperature ≥ the target temperature upper limit setting value, enter the cooling mode
Type, the Cool indicator icon is on, the marquee decreases, and the refrigeration relay works.
②When the refrigeration temperature drops to the lower limit set value of the target temperature, the refrigeration relay
The thermostat stops working, and the thermostat enters the temperature control state, and the temperature control range is the target temperature
Upper and lower limit setting value.
③When the refrigeration temperature rise value ≥ the target temperature upper limit setting value, the snowflake mark
The logo starts to flash, the thermostat enters the press delay state, and the press delay time is over.
The cold relay only starts to work, (press delay time can be set)
2. Heating mode:
①When the real-time temperature ≤ the lower limit set value of the target temperature enters the heating state,
The Heat indicator icon lights up, the marquee increases, and the heating relay works.
②When the heating temperature reaches the target temperature upper limit setting value, the heating relay stops
Stop working, the marquee stops, the thermostat enters the temperature control state, the temperature control range is the target
Standard temperature upper and lower limits.
3. Timing on/off mode:
①Set the scheduled shutdown time in the power-on state through the number plus key.
In the timer mode, you can turn off the timer shutdown function by long pressing the plus button
②Through the number minus key, set the timing power-on time in the off state,
In the timer mode, you can turn off the timer boot function by long pressing the minus button.
Tips
①In normal mode, short press the power button or plus button to view the setting parameters, 1 second
Back to normal mode later.
②In the setting mode, if no button is pressed, it will automatically return after 10 seconds
Normal working mode.
③In the setting mode, when a certain option value is set, if the setting is not pressed
Press the key or power key to confirm and return, and automatically return to normal working mode after 10 seconds
When, the value will not be saved.
