USB ISP Programmer for AVR ATMega ATTiny 51 AVR Board ISP Downloader #K5 011060

USB ISP Programmer for AVR ATMega ATTiny 51 AVR Board ISP Downloader #K5 011060

Regular price 6,000 IQD
Regular price Sale price 6,000 IQD
Sale تم نفاذ المنتج

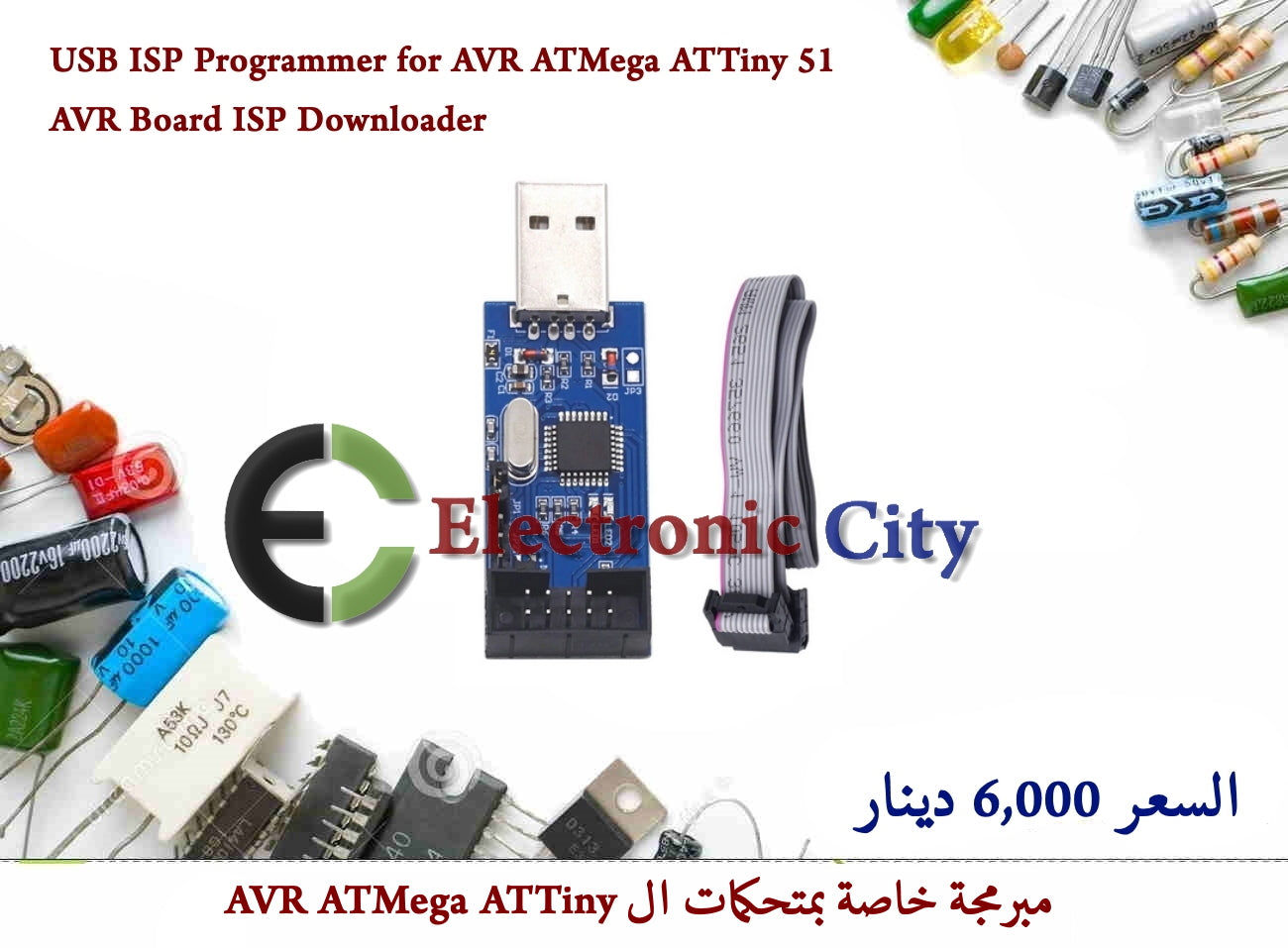

USB ISP Programmer for AVR ATMega ATTiny 51 AVR Board ISP Downloader

مبرمجة خاصة بمتحكمات AVR ATMega ATTiny

تتوفر بسعر 6,000 دينار

 Module description:
1. On board brand new imported atmega8a-au chip
2. With two indicator lights of power supply and burning
3. On board 500 mA overcurrent protection self recovery fuse
4. Support 5V and 3.3V power supply for target board
The latest self-adaptive automatic speed regulation.
It is applicable to win8.1/8/7/xp 32-bit / 64 bit computer of the system.
The product can be directly connected with the USB port of the computer. The real USB downloader product can be connected with the target board through it. It is convenient to download and program the single-chip microcomputer. It is especially suitable for notebook computers and desktop computers. It can be downloaded and debugged through the USB port programming.
2、 Features of the downloader:
1. Support AT89S51 / 52 single chip microcomputer
2. Support all ASP chips of AVR.
3. The output port is ATMEL standard port.
4. USB power supply and target board support target Voltage 5V, which can be selected through jumper cap connection.
5. It can automatically adjust the speed of firmware. The downloader will automatically track the frequency of the chip to be programmed, and automatically change the speed to achieve automatic speed adjustment.
6. Reserve MoSi, miso, RET, SCK, VCC, GND. 6pin interface is convenient for users to connect to the target board as required.
7. Programming interface is reserved for the user to upgrade the downloader firmware.
Programming software: avr_fighter, progisp1.66, progisp1.67, progisp1.68, compiled lower or higher software can be used and burned in one go, which is very convenient.
Interface definition:
AT89S51 and S52 series pin and download line corresponding connection definition:
Chips supporting burning:
51 series
AT89S51AT89S52AT89S53 AT89S8253 AT89S2051 AT89S8252 AT89S4051
AVR series
AT90can128 AT90can32 AT90can64,AT90pwm2,AT90pwm3,AT90s1200,AT90s2313,AT90s2323,AT90s2343,AT90s4414,AT90S8515,AT90S8535 AT90usb1286,AT90usb1287
Atmega103,Atmega128,Atmega1280,Atmega1281,Atmega16,Atmega161,Atmega162,Atmega163,Atmega164,Atmega165,Atmega168,Atmega169,Atmega2560,Atmega2561,Atmega32,Atmega323,Atmega324,Atmega325,Atmega3250,Atmega3259,Atmega328,Atmega329,Atmega3290,Atmega406,Atmega48,Atmega64,Atmega640,Atmega644,Atmega645,Atmega6450,Atmega649,Atmega6490,Atmega8,Atmega8515, Atmega8535,Atmega88,
Attiny11,Attiny12,Attiny13 ,Attiny15,Attiny22,Attiny2313,Attiny24,
Attiny25,Attiny26,Attiny261, Attiny28,Attiny44, Attiny45,Attiny46,
