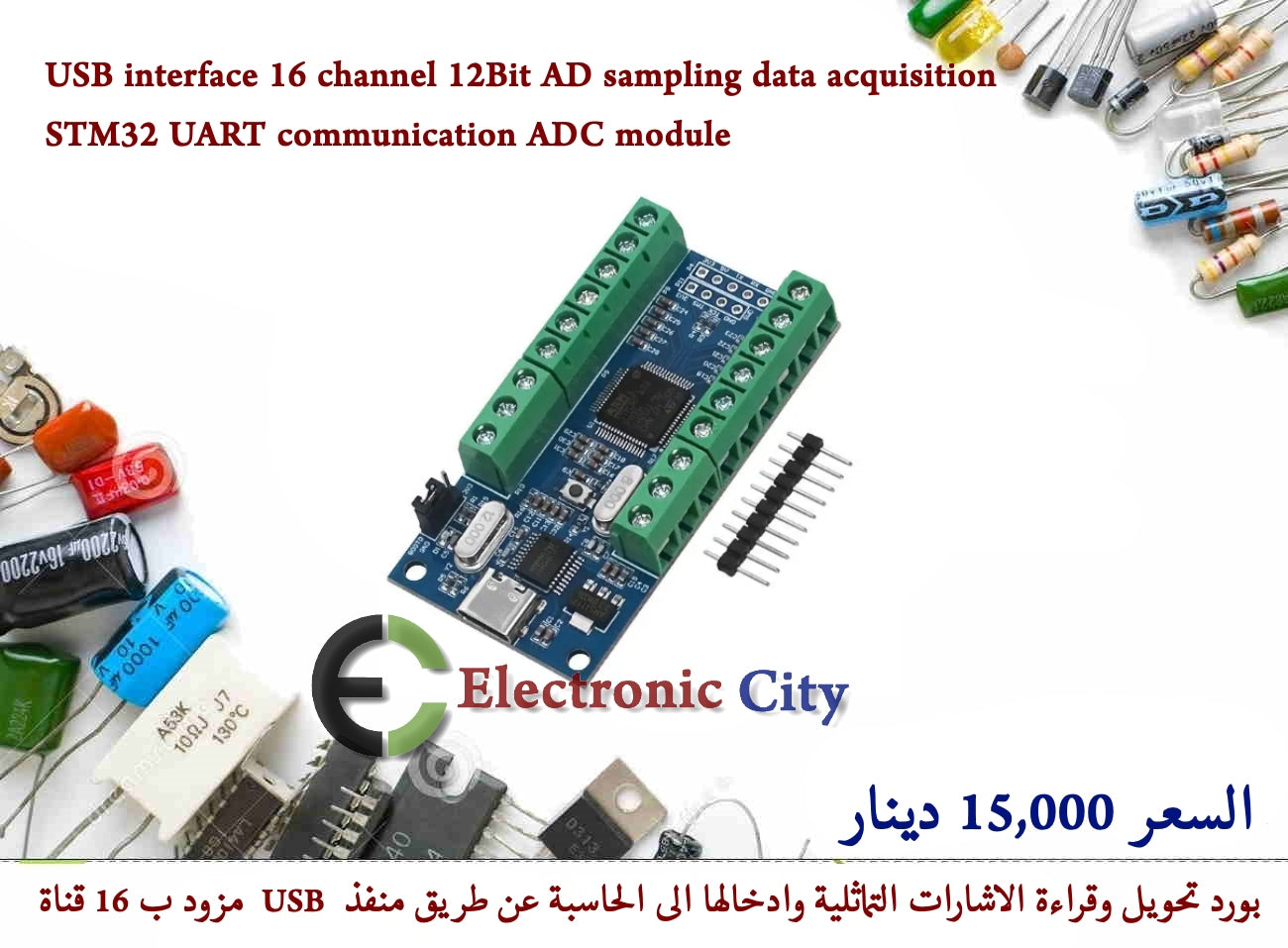

USB interface 16 channel 12Bit AD sampling data acquisition STM32 UART communication ADC module

بورد تحويل وقراءة الاشارات التماثلية وادخالها الى الحاسبة عن طريق منفذ ال USB مزود ب 16 قناة


يتوفر بسعر 15,000 دينار


Description
Report Item
Product name: STM32 16-way AD sampling module
Product size: 33 * 65mm
Product interface: Type_ C interface power supply
Product weight: 25g
Product material: FR-4
The STM32 16 channel ADC sampling module uses the internal 16 channel ADC resources of ST company's STM32F103R8T6 microcontroller as the sampling core. The obtained sampling data is transferred to memory through the internal DMA of STM32, reducing CPU burden and enhancing the stability and accuracy of AD sampling. At the same time, the onboard USB to serial chip CH340T can transfer data to the upper computer, and users can use Type_ C data cable can achieve code burning.
Using STM32F103R8T6 as the main control chip
On board CH340T chip, via Type_ C data cable allows you to view AD sampling results on your PC
Reserve UART serial communication interface and SWD serial debugging interface
Up to 16 AD acquisition channels with 12Bit bits
(Resolution 4096)
Shipping List
STM3216 AD sampling module X1 single row pin 1 * 9pin



1. ADC acquisition channel 8-channel 15
2. BOOTO port: Connect BOOTO to 3V3 in burning mode, connect BOOT0 to GND in running mode
3. CH340T chip: USB to serial port 4. Type_ C interface
5. Reset button
6. Linear regulator AMS1177: used for converting 5V voltage to 3.3V voltage 7. ADC acquisition channel O-channel 7
8. UART serial communication interface 9. SWD serial debugging interface
10. MCU: STM32F103R8T6
