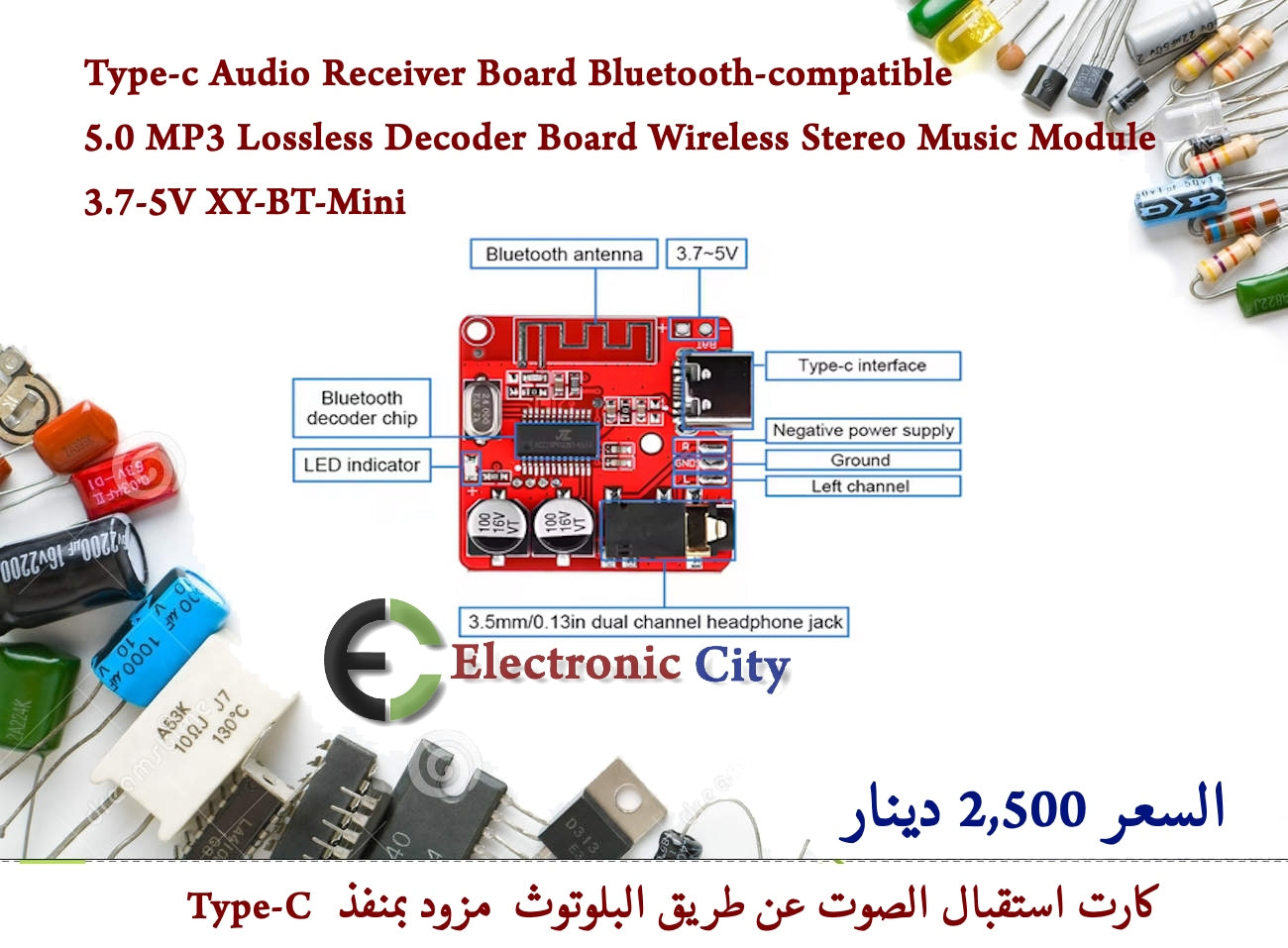

Type-c Audio Receiver Board Bluetooth-compatible 5.0 MP3 Lossless Decoder Board Wireless Stereo Music Module 3.7-5V XY-BT-Mini 012709

Type-c Audio Receiver Board Bluetooth-compatible 5.0 MP3 Lossless Decoder Board Wireless Stereo Music Module 3.7-5V XY-BT-Mini

Features:

Newly upgraded Type-C interface; 3.7V-5V power supply pad, realizing external 3.7V-5V lithium power supply;

Easy to install, small decoder board size,

Simple structure, easy to use, easy to install.

With indicator light, standard 3.5mm audio interface, more convenient to use

Suitable for all kinds of DIY, car audio modification, home audio modification, personal diy Bluetooth audio, electronic project production and so on

Product parameters:

Interface: Type-C

Supply voltage :DC 3.7-5V

Signal to noise ratio :90dB

THD+H:-70dB

Crosstalk :-70dB

Noise reduction :91dB

Support description :A2DP/AVCTP/AVDTP AVRCP/HFP

Synchronization loss :>15m

Audio interface: Standard 3.5mm interface, output stereo sound, can be inserted into headphones, connected power amplifier and other equipment

LED indicator: Bluetooth mode blue light long on

Operating instructions:

Use Type-C line power supply, blue indicator flashes, enter Bluetooth mode; When hearing the voice broadcast, it means entering Bluetooth mode and waiting for pairing; Mobile phone Bluetooth search "HW-BT" (decoded version of the device name), click connect. When the decoding board is successfully connected to the mobile phone, the blue indicator lights up long enough to play music, and then the blue indicator lights blink.
