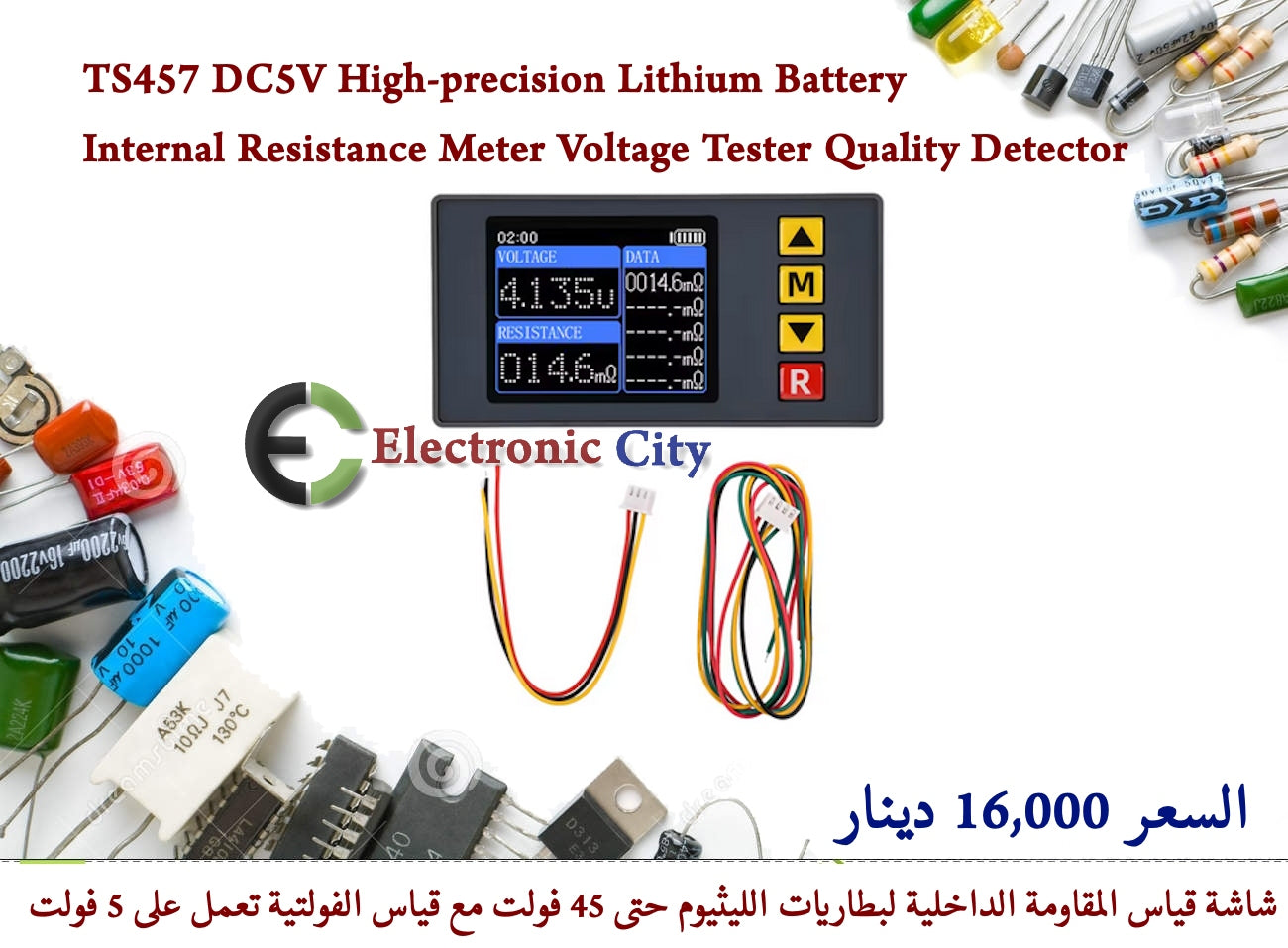

TS457 DC5V High-precision Lithium Battery Internal Resistance Meter Voltage Tester Quality Detector #K3 KBAF0011-002

TS457 DC5V High-precision Lithium Battery Internal Resistance Meter Voltage Tester Quality Detector

شاشة قياس المقاومة الداخلة لبطاريات الليثبوم  حتة 45 فولت
مع قياس الفولتية
تعمل على جهد 5 فولت مستمر

يمكن من خلالها صناعة جهاز متكامل لفحص البطاريات كما في الفديو المرفق
https://www.youtube.com/watch?v=aHn0aeVRPYE

تتوفر بسعر 16,000 دينار

Features:
Voltage test range: 0.001V~45.00V Maximum resolution 0.001V
Internal resistance measurement range: 0.1mΩ~6.999Ω Maximum resolution 0.1mΩ
Data recording: Support to record 5 groups of internal resistance measurement data
Automatic shutdown: Support 1 to 9 minutes standby time adjustment
Backlight brightness: Support 1 to 9 display backlight brightness adjustment

Technical parameters:
Product name: TS457 voltage internal resistance tester
Note: Do not test AC, do not test voltage above 45V
Working voltage: DC5V (do not overvoltage power supply)
Test principle: AC 4-wire method
Voltage test range: 0.001V~45.00V Maximum resolution 0.001V
Internal resistance measurement range: 0.1mΩ~6.999Ω Maximum resolution 0.1mΩ
Data recording: Support to record 5 groups of internal resistance measurement data
Voltage display fine-tuning: Supported
Internal resistance display fine-tuning: Supported
Automatic shutdown: Support 1 to 9 minutes standby time adjustment
Backlight brightness: Support 1 to 9 display backlight brightness adjustment
Accessory ① : XH-2.54-2P red and black power supply cable length 150mm
Accessory 2: XH-2.54-4P signal acquisition line length 400mm
Product size: 79.5x42.1x27.8mm
Mounting hole: 77x39.3mm
