STM8S103F3P6 development board STM8 #V1 12268

STM8S103F3P6 development board STM8 #V1 12268

4,000 IQD
4,000 IQD
Sale تم نفاذ المنتج

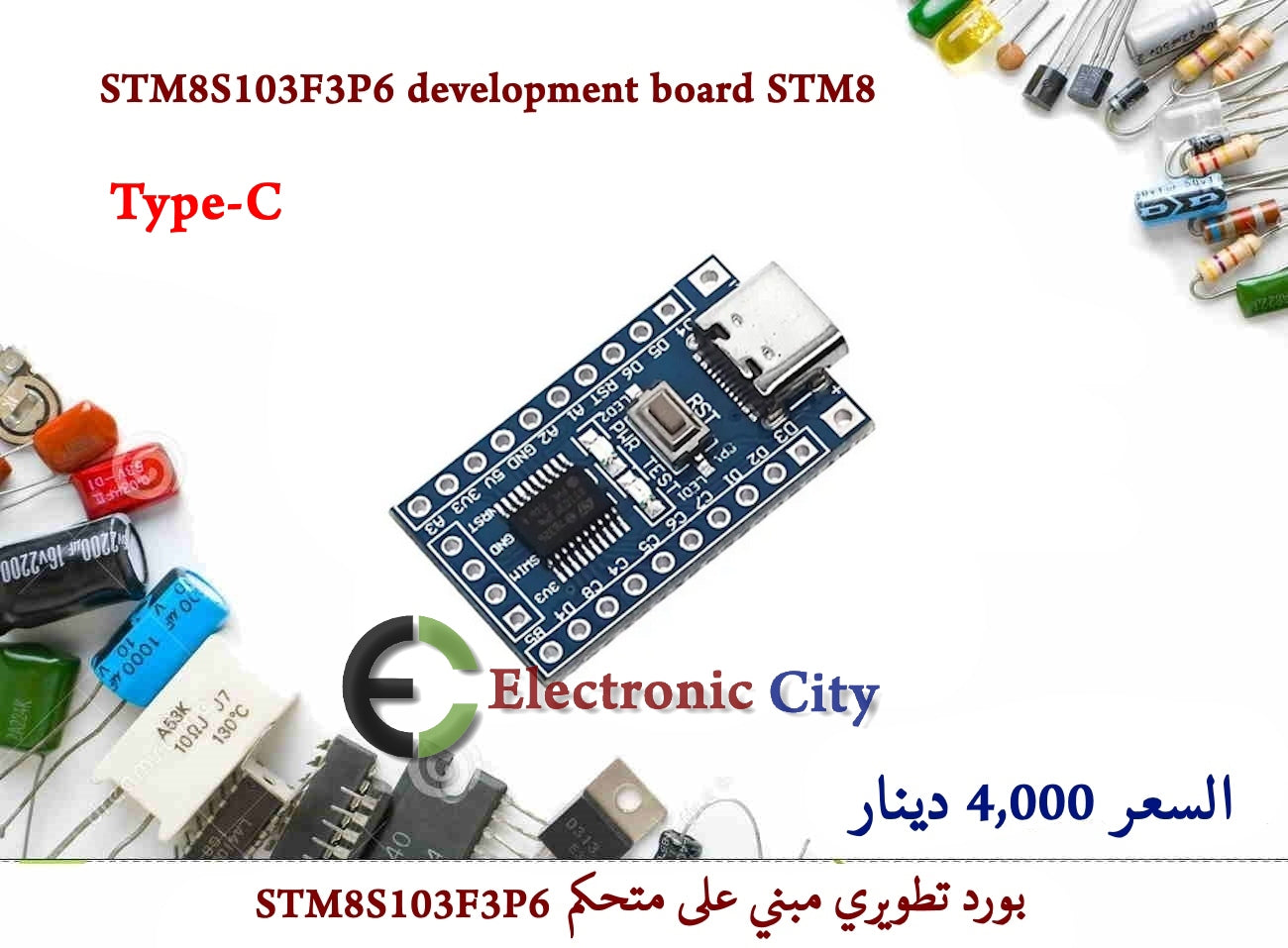

STM8S103F3P6 development board STM8
Type -C

16 MHz STM8S 8-bit MCU, up to 8 Kbytes Flash,
data EEPROM,10-bit ADC, 3 timers, UART, SPI, I²C




بورد تطويري صغير الحجم مبني على متحكم STM8S103F3P6 من فئة STM8
يمتاز بمواصفات جيدة مقارنة بسعره


يتوفر بسعر 4,000 دينار




Features
Core
• 16 MHz advanced STM8 core with Harvard
architecture and 3-stage pipeline
• Extended instruction set


Memories
• Program memory: 8 Kbyte Flash; data
retention 20 years at 55 °C after 10 kcycle
• Data memory: 640 byte true data EEPROM;
endurance 300 kcycle
• RAM: 1 Kbyte


Clock, reset and supply management
• 2.95 to 5.5 V operating voltage
• Flexible clock control, 4 master clock sources
– Low power crystal resonator oscillator
– External clock input
– Internal, user-trimmable 16 MHz RC
– Internal low-power 128 kHz RC
• Clock security system with clock monitor
• Power management:
– Low-power modes (wait, active-halt, halt)
– Switch-off peripheral clocks individually
• Permanently active, low-consumption power-
on and power-down reset
Interrupt management
• Nested interrupt controller with 32 interrupts
• Up to 27 external interrupts on 6 vectors
Timers
• Advanced control timer: 16-bit, 4 CAPCOM
channels, 3 complementary outputs, dead-time
insertion and flexible synchronization
• 16-bit general purpose timer, with 3 CAPCOM
channels (IC, OC or PWM)
• 8-bit basic timer with 8-bit prescaler
• Auto wake-up timer
• Window watchdog and independent watchdog
timers
Communication interfaces
• UART with clock output for synchronous
operation, SmartCard, IrDA, LIN master mode
• SPI interface up to 8 Mbit/s
• I2C interface up to 400 kbit/s
Analog to digital converter (ADC)
• 10-bit, ±1 LSB ADC with up to 5 multiplexed
channels, scan mode and analog watchdog

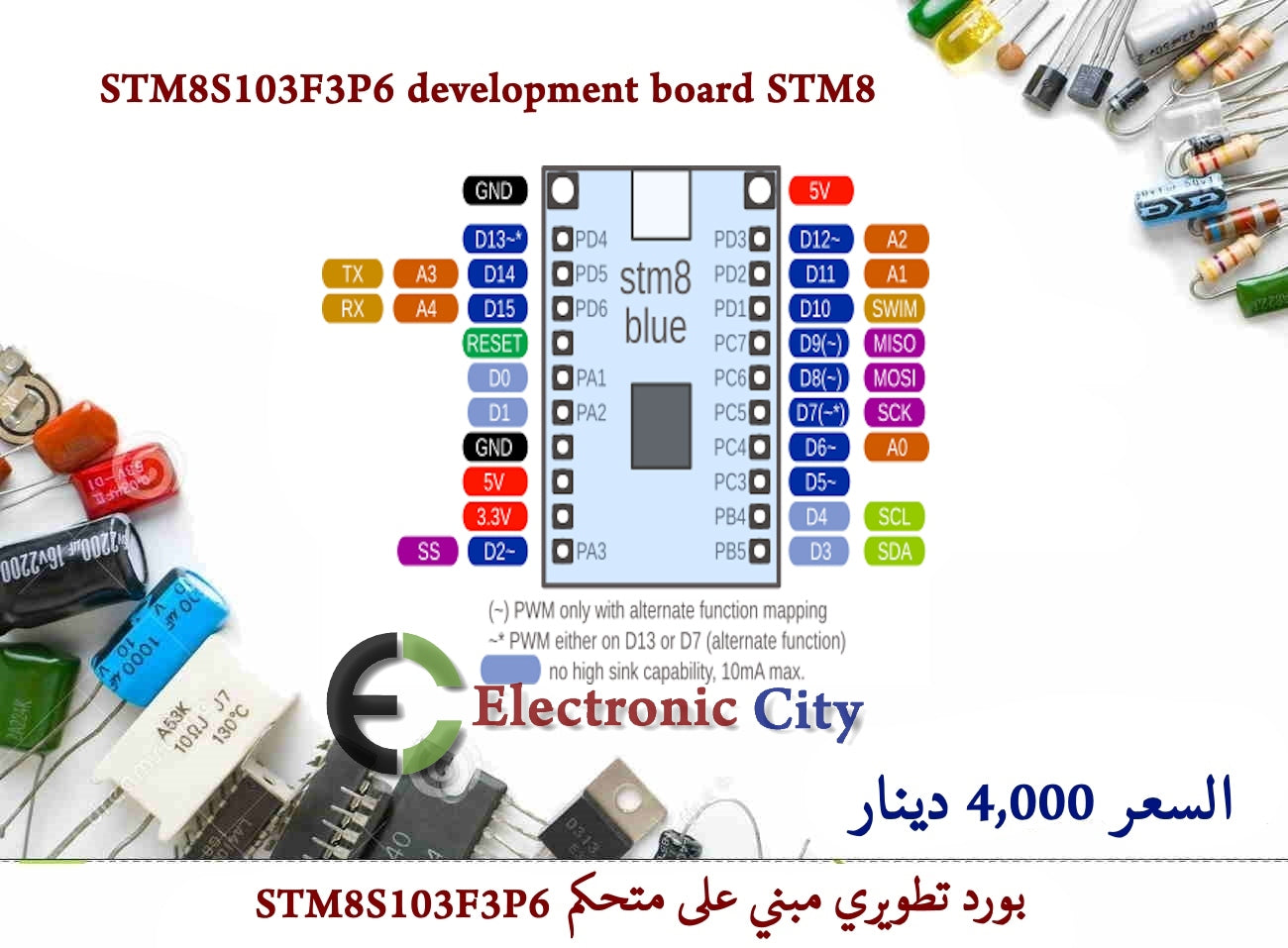

I/Os
• Up to 28 I/Os on a 32-pin package including
21 high sink outputs
• Highly robust I/O design, immune against
current injection
Unique ID
• 96-bit unique key for each device
