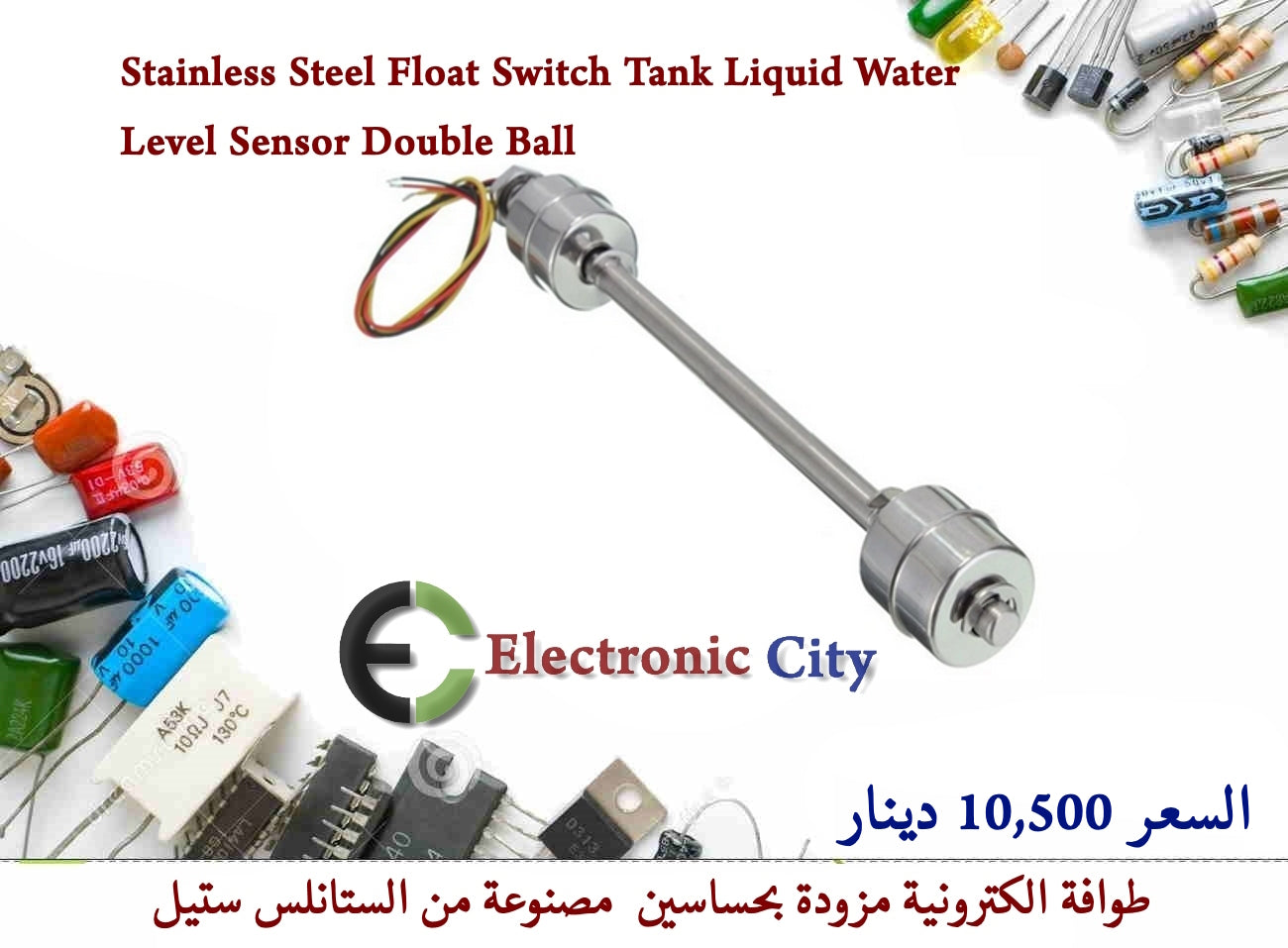

Stainless Steel Float Switch Tank Liquid Water Level Sensor Double Ball
Stainless Steel Float Switch Tank Liquid Water Level Sensor Double Ball
Regular price
13,000 IQD
Regular price
Sale price
13,000 IQD
Unit price
/
per
Couldn't load pickup availability
Stainless Steel Float Switch Tank Liquid Water Level Sensor Double Ball
طوافة الكترونية مزودة بحساسين مصنوعة من الستنلس ستيل
تتحمل لود 10 واط او 0.5 امبير
تتوفر بسعر 13,000 دينار
مرفق فديو توضيحي لعمل المنتج
https://video.aliexpress-media.com/play/u/ae_sg_item/2209951821380/p/1/e/6/t/10301/1100012090544.mp4
Specifications:
Color: Silver
Material: Stainless Steel
Max. Contact Rating: 10W / 50W
Max. Switching Voltage: 240V AC
Max. Breakdown Voltage: 220V DC
Max. Switching Current: 0.5A
Max. Carry Current: 1A
Max. Contact Resistance: 100mΩ
Operating Pressure: 10kg/cm
Max. Pressure: 0.2 Mpa
Applicable Proportion: 0.75
Operating Temperature: -10 ~ +120℃
Switch Operation: Reversible
Wire: PTFE High Temperature Line
Installation Method: Vertical Mounting
Thread Diameter: 10mm / 0.39 inch
طوافة الكترونية مزودة بحساسين مصنوعة من الستنلس ستيل
تتحمل لود 10 واط او 0.5 امبير
تتوفر بسعر 13,000 دينار
مرفق فديو توضيحي لعمل المنتج
https://video.aliexpress-media.com/play/u/ae_sg_item/2209951821380/p/1/e/6/t/10301/1100012090544.mp4
Specifications:
Color: Silver
Material: Stainless Steel
Max. Contact Rating: 10W / 50W
Max. Switching Voltage: 240V AC
Max. Breakdown Voltage: 220V DC
Max. Switching Current: 0.5A
Max. Carry Current: 1A
Max. Contact Resistance: 100mΩ
Operating Pressure: 10kg/cm
Max. Pressure: 0.2 Mpa
Applicable Proportion: 0.75
Operating Temperature: -10 ~ +120℃
Switch Operation: Reversible
Wire: PTFE High Temperature Line
Installation Method: Vertical Mounting
Thread Diameter: 10mm / 0.39 inch
