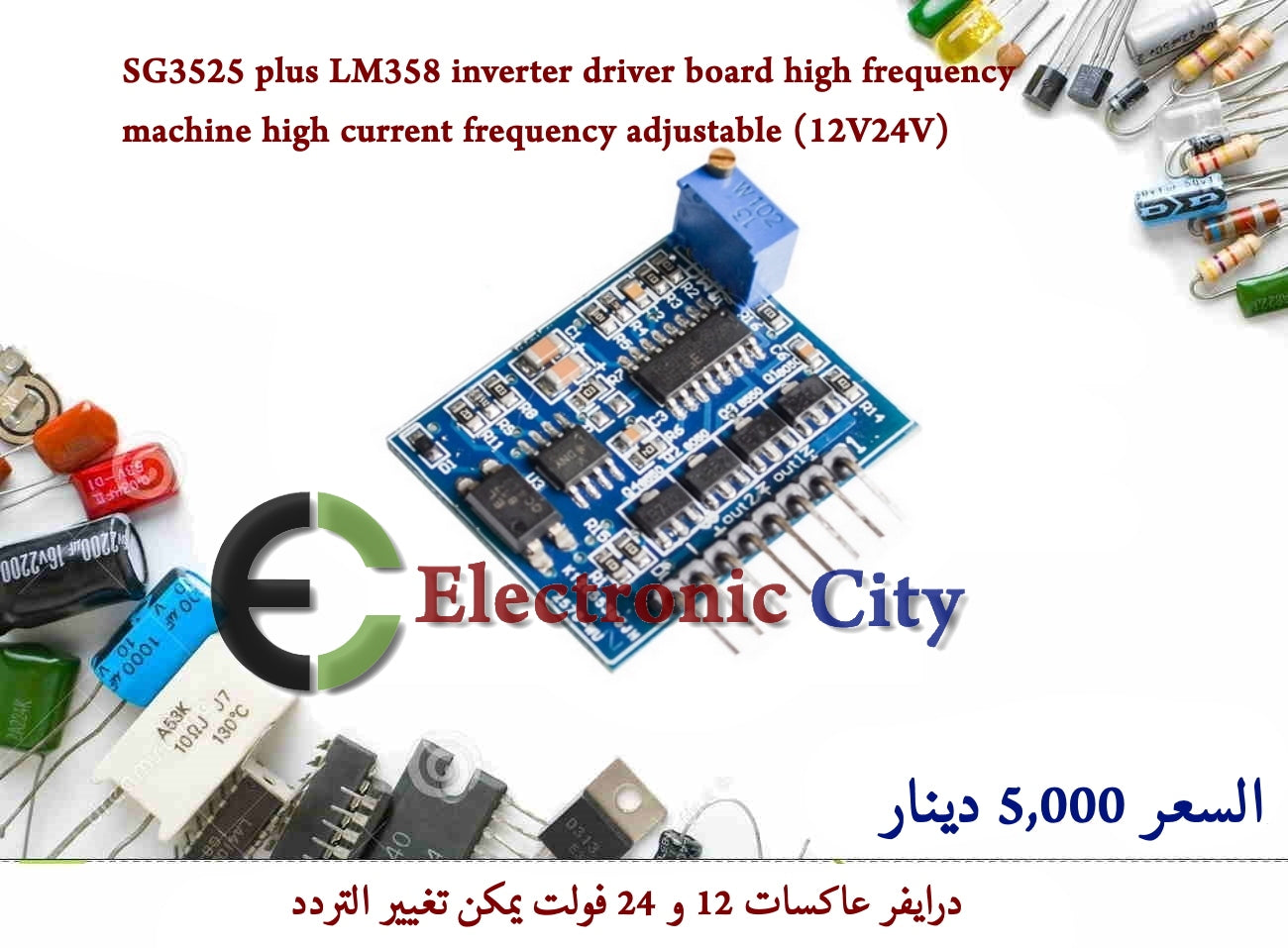

SG3525 plus LM358 inverter driver board high frequency machine high current frequency adjustable (12V24V)

درايفر عاكسات يعمل بنظام 12 و 24 فولت يمكن التحكم بالتردد

يتوفر بسعر 5,000 دينار


Product Description

Size: 35*30(MM)
Adjustable frequency
Over current short circuit shut off self-locking
The output voltage can be regulated, and the effect is good!
The output current can reach about 1A, driving 20 3205 effect tubes is no problem
Power supply 8-12V
If the product is updated, no notice will be given unless the function is changed! Pin description
1. Positive power supply
2. Signal output
3. The negative pole of the power supply
4. Signal output
5. Optocoupler input anode
6. Optocoupler output negative
7, signal off short foot
8. Signal feedback pin
