PD 65W Fast Charging Module Type-C Interface Apple PD3.1 PPS Fast Charging QC3.0 12277

PD 65W Fast Charging Module Type-C Interface Apple PD3.1 PPS Fast Charging QC3.0 12277

5,000 IQD
5,000 IQD
Sale تم نفاذ المنتج

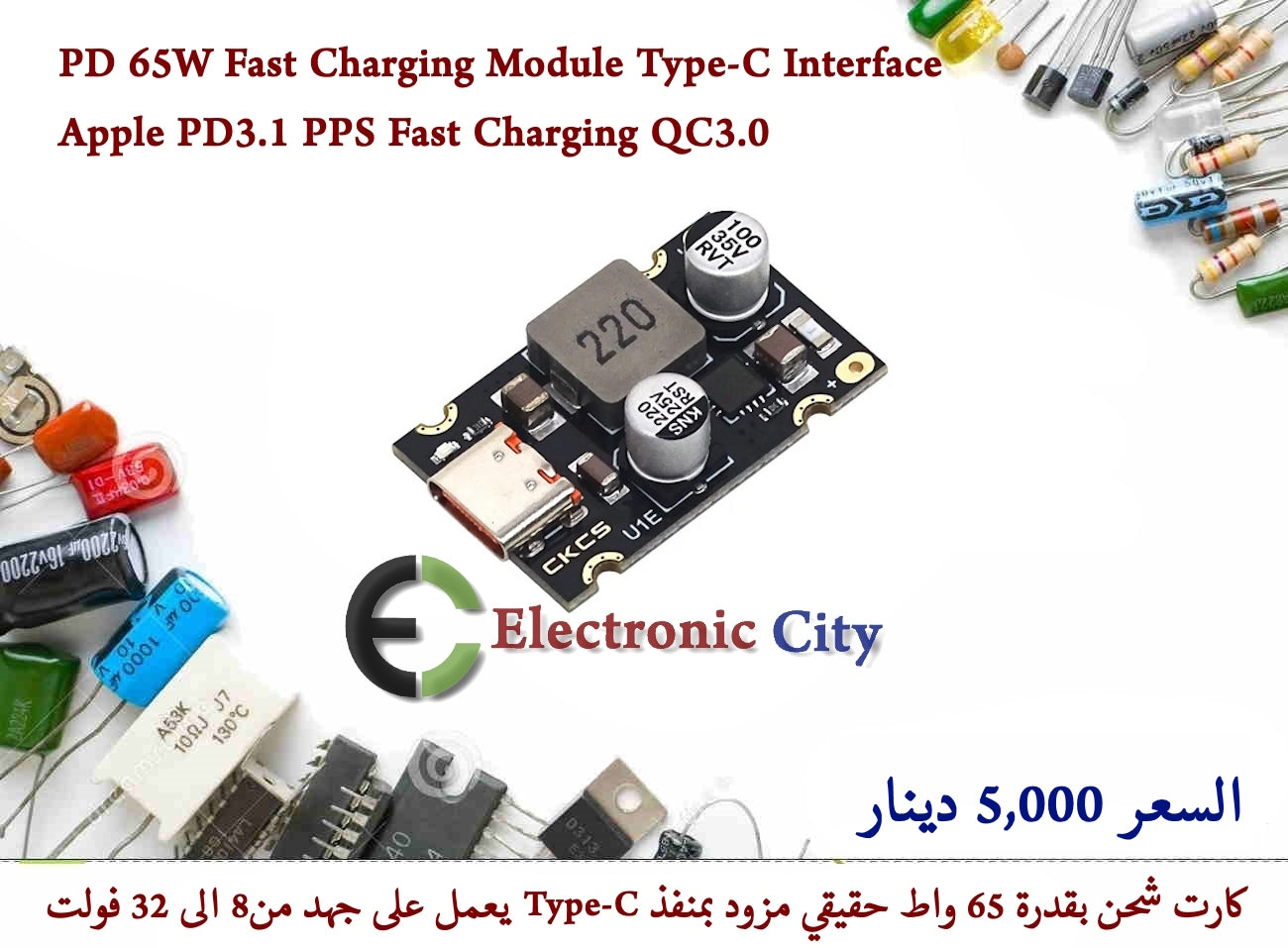

PD 65W Fast Charging Module Type-C Interface Apple PD3.1 PPS Fast Charging QC3.0


كارت شحن بقدرة 65 واط حقيقي مزود بمنفذ Type-C يعمل على جهد من 8 الى 32 فولت
يعمل بخاصية الشحن السريع جدا


يتوفر بسعر 5,000 دينار


Product characteristics
● Input voltage: DC 8~32V
● Output voltage: When connected to a power receiving device compatible with TYPE-C
Automatic adjustment between 3.3V and - 21V after standby (input power
The voltage should be higher than the output voltage. To trigger a 20V fast charge
Input voltage should be higher than 20V)
● Output power: maximum 65W (5V3A.9V3A, 12V3A
20V3.25A, etc.)
Conversion efficiency: 92% - 97%
Output voltage ripple:<200mV
No-load current:<3mA
Input overvoltage and under voltage protection
Input overcurrent protection
Output overcurrent and short circuit protection
Overtemperature protection for harvester
Supported charging protocols
BC1.2, Apple Protocol
Qualcomm QC2.0 and QC3.0
Huawei Fast Charging Protocol FCP and SCP
Samsung Fast Charging Protocol AFC
MTK PE+1.1 and MTK PE+2.0
PD2.0/PD3.1 (PPS) output protocol
