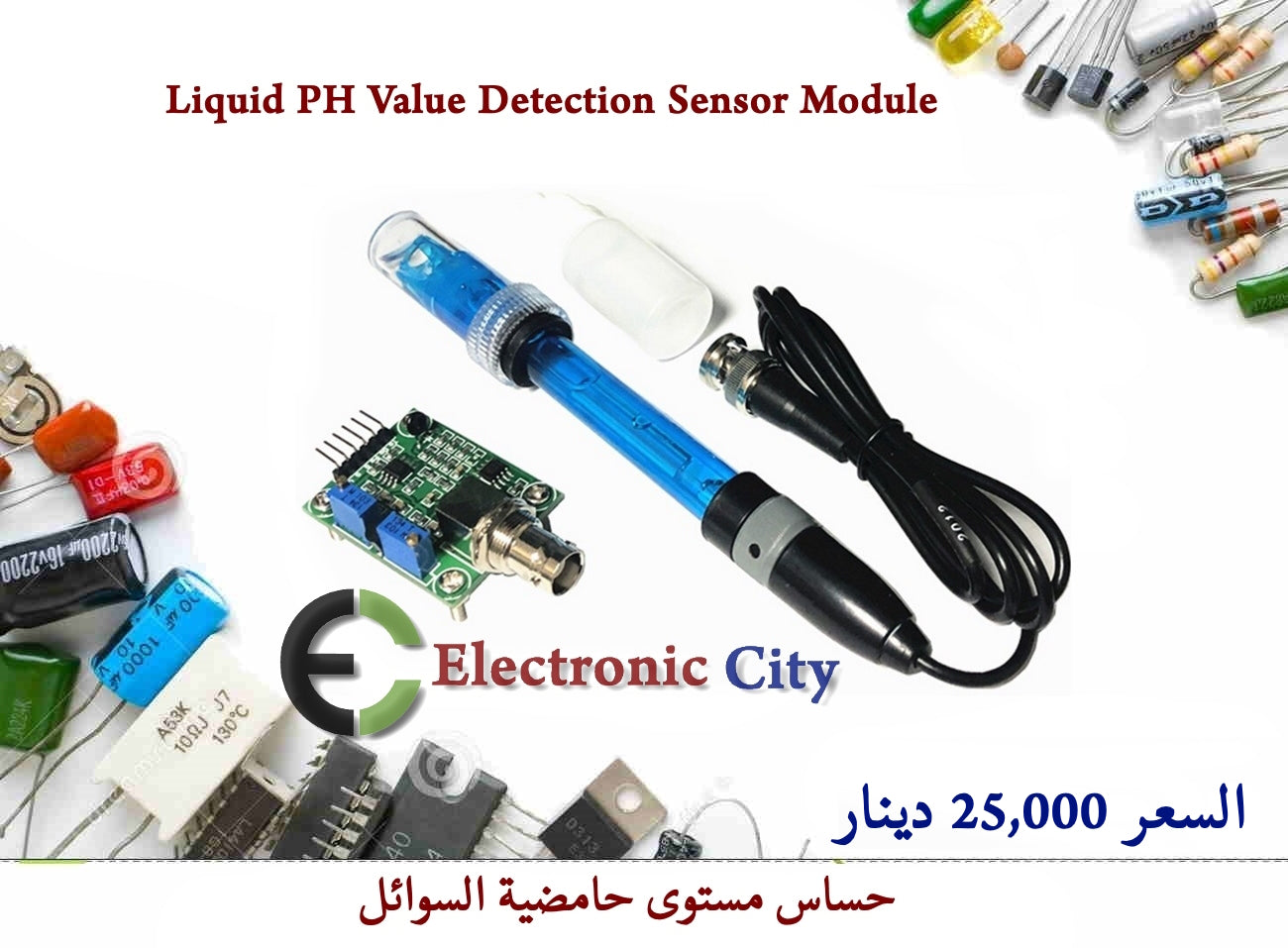

Liquid PH Value Detection Detect Sensor Module
متحسس مستوى الحامضية للسوائل عالي الدقة متوافق مع جميع انواع المتحكمات
يتوفر بسعر 25,000 دينار
Product Description
Heating voltage: 5±0.2V (AC -• DC)
Working current: 5-10mA
The detection concentration range: PH0-14
The detection range of temperature: 0-80 centigrade
The response time: ≤ 5S
Stability time: ≤ 60S
Power consumption: ≤ 0.5W
The working temperature: -10~50 centigrade (the nominal temperature 20 centigrade)
Working humidity: 95%RH (nominal humidity 65%RH)
Service life: 3 years
Size: 42mm x 32mm x 20mm
The output: analog voltage signal output
BNC PH Electrode Probe
The PH electrode has a single cylinder that allows direct connection to the input terminal
of a PH meter, controller, or any PH device which has a BNC input terminal.
The PH electrode probe is accurate and reliable that can gives almost instantaneous readings.
PH range: 0-14 PH
Temperature range: 0-60℃
Zero-point: 7 ± 0.5PH
Alkali Error: 0.2PH
Theoretical Percentage Slope: ≧98.5%
Internal Resistance: ≦250MΩ
Response Time: ≦1min
Operating Temperature: 0-60℃
Terminal Blocks: BNC plug
BNC Connector suitable for most PH meter and controller.
Suitable for wide range of application: Aquariums, Hydroponics, Laboratory etc.
