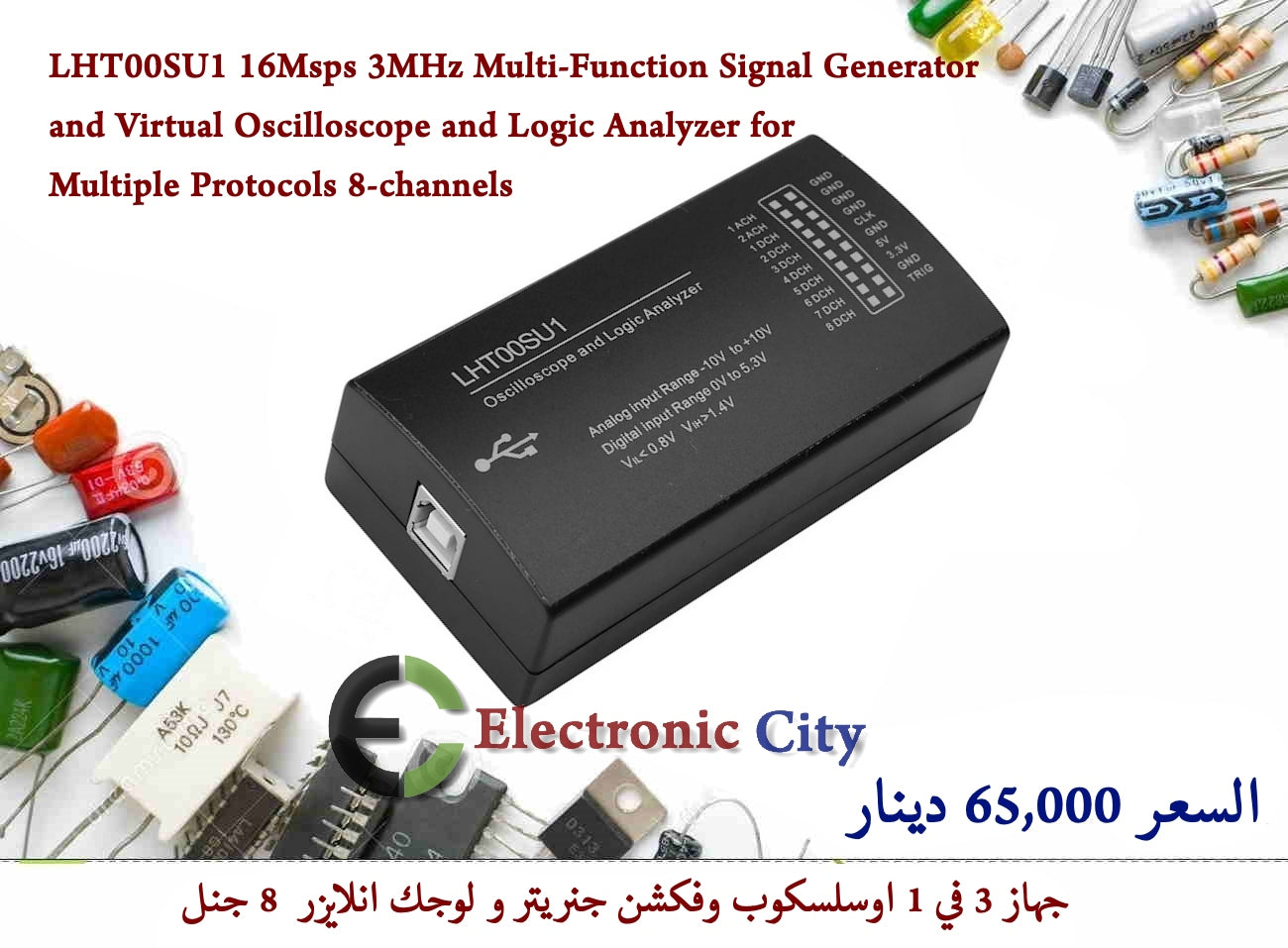

LHT00SU1 16Msps 3MHz Multi-Function Signal Generator and Virtual Oscilloscope and Logic Analyzer for Multiple Protocols 8-channels #NN 050813

Name: LHT00SU1 16Msps 3MHz Multi-Function Signal Generator and Virtual Oscilloscope and Logic Analyzer for Multiple Protocols 8-channels #NN 050813
Brand: Electronic City المدينة الالكترونية
SKU: #NN 050813
Price: 65000.000 IQD
Availability: InStock

LHT00SU1 16Msps 3MHz Multi-Function Signal Generator and Virtual Oscilloscope and Logic Analyzer for Multiple Protocols 8-channels #NN 050813

65,000 IQD

Sale تم نفاذ المنتج

Quantity

LHT00SU1 16Msps 3MHz Multi-Function Signal Generator and Virtual Oscilloscope and Logic Analyzer for Multiple Protocols 8-channels

جهاز 3 في 1 ( سكنل جنريتر + فيرجول اوسلكوب + لوجك انلايزر ) مفيد لكل مطور وباجث في مجال الاكترونيات الرقمية

يوفر عليك عناء جمع هذه الاجهة للفحص وتنفيذ المشاريع

يمتاز بالدقة العالية والسهولة بالتعامل

يحتوي على 8 جنلات يمكن الاختيار بين خواص كل جنل

متوافق مع جميع اصدارات الوندوز

مرفق رابط فديو يبين الية عمل الجهاز

https://www.youtube.com/results?search_query=LHT00SU1+Virtual+Oscilloscope

يتوفر بسعر 65,000 دينار

Technical Parameters:

Color: black

Dual Input Oscilloscope (single, 16Msps, 3MHz bandwidth)

8-channel logic analyzer

Data Logger

Dual channel voltmeter

Mixed signal oscilloscopes and logic analyzer

Frequency meter

Remote controller

PWM controller

Frequency generator

I2C controller

Pulse / edge counter

8-bit digital channel + 1-bit analog channel logic analyzer, support for multiple protocols

Analog parameters:

Number of input channels: 2 channel

Sampling channel: 1 channel

The maximum sampling frequency: 16MHz

The maximum analog bandwidth: 3MHz

Input voltage range: -10V to + 10V

Sensitivity: 78mV

Maximum vertical resolution: 256 level

Digital parameters:

Number of channels: 8

Input voltage: 0V-5.3V

Input Low level: Less than 0.8V

Input high level: Greater than 1.4V

Supported protocols: SPI, IIC, UART, SMBus, I2S, CAN, Parallel, Custom, Search, Async, 1-Wite, PS / 2

USB parameters: USB2.0 high-speed 480Mbps

Supported operating systems Win2000 / XP / Vista / WIN7 (32bit)

Celeron 4 2.0G or Pentium 4 1.8G higher processor

Need USB2.0 high speed interface, does not support full speed USB2.0 or USB1.1

Memory Requirements 128M or more

Need 2G or more hard disk

You need to install Framework 3.5 SP1

Note: If your system is WINDOWS XP, please check whether your computer has ".NET 3.5 SP1" this component, if not, go to the Microsoft website to download and install.

Package Contents:

1 x oscilloscopes

1 x Testing clamp line (with 10 test clip)

1 x USB connection line
