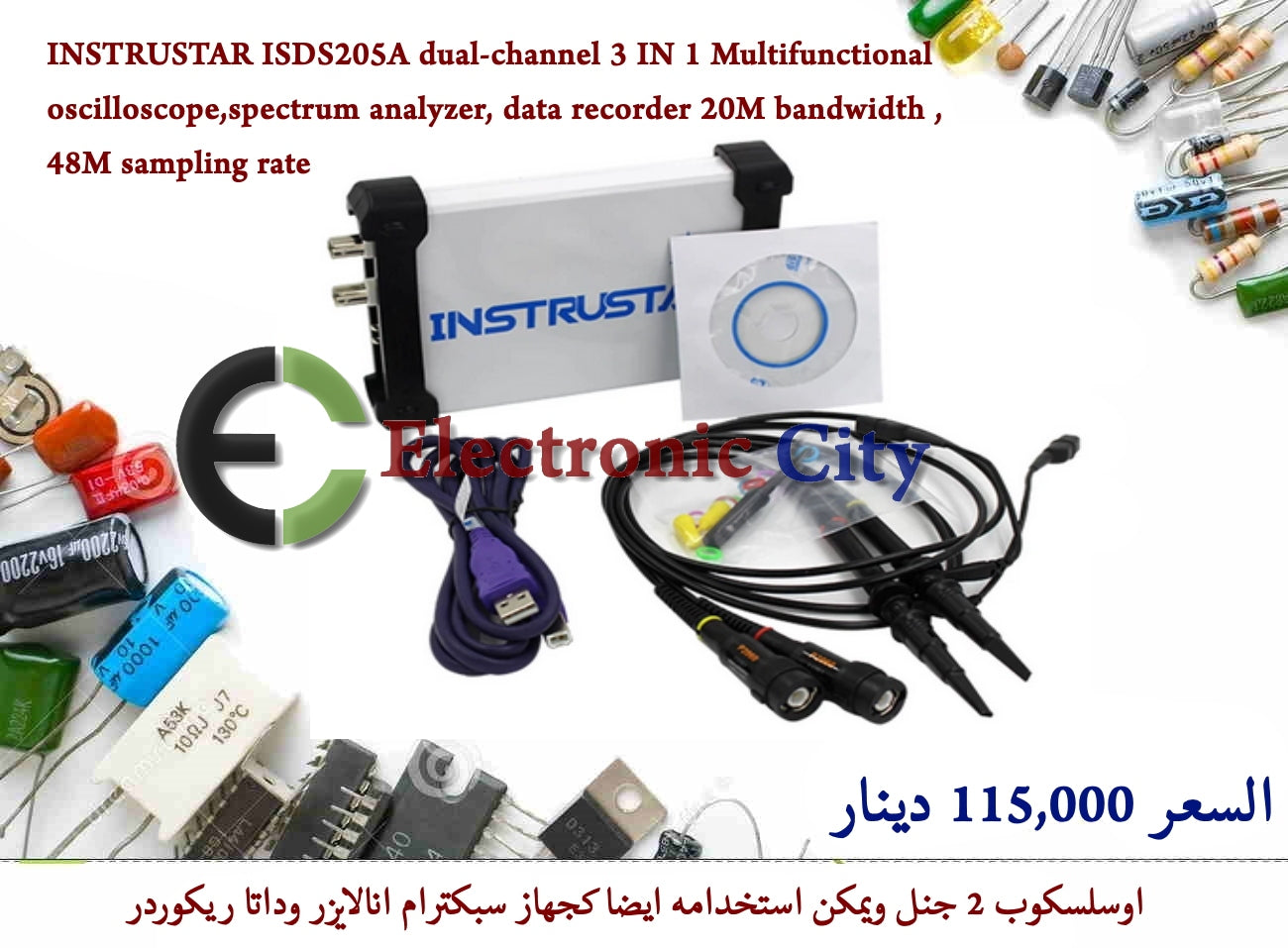

INSTRUSTAR ISDS205A dual-channel 3 IN 1 Multifunctional oscilloscope,spectrum analyzer, data recorder 20M bandwidth , 48M sampling rate

INSTRUSTAR ISDS205A dual-channel 3 IN 1 Multifunctional oscilloscope,spectrum analyzer, data recorder 20M bandwidth , 48M sampling rate

دجتل اوسلسكوب 2 جنل
20M bandwidth , 48M sampling rate
ويمكن استخدامه كجهاز داتا انلايزر وداتا ريكوردر

يتوفر بسعر 115,000 دينار



Digital oscilloscope

Channels                   2
Impedance               1M 25pF
Coupling                   AC/DC
Vertical resolution    8Bit
Gain range               -6V ~ 6V(probe X1)
                                 -60V ~ 60V(probe X10)
Vertical accuracy     3%
Timebase range       1ns-20s
Input Protection        Diode.50Vpk
Autoset                     Yes(10Hz to 20MHz)
Trigger Mode           Auto.Normal and Signal
Trigger Type             No.Rising edge.Falling edge.
Trigger level             Yes
Trigger Source         CH1, CH2
Buffer Size                1MB/CH
Bandwidth               20MHz
Max sample             48MS/s
Vertical mode          CH1, CH2, ADD, SUB, MUL
Display Mode           X.Y-T/X-Y
measurements         Yes
Wave save                Osc(Private).Excel and Bmp


Spectrum analyzers

Channels                 2
Bandwidth              20MHz
Algorithm                FFT(18 windows).correlation.power spectrum
FFT points               8-1048576/CHN
FFT measure          Harmonic(1-7).SNR.SINAD.ENOB.THD.SFDR
Filter processing    FIR filter supports arbitrary range of frequency sampling method , and Rectangle, bartlett, triangular, cosine, hanning, bartlett_hanning, hamming, blackman, blackman_Harris, tukey, Nuttall, FlatTop, Bohman, Parzen, Lanczos, kaiser, gaussand dolph_chebyshev, window method design.

                     IIR filter support "Butterworth", "Chebyshev I", "Chebyshev II", "Elliptic" type of filter design


Data recorder

Channel                       2
Impedance                1M 25pF
Coupling                    AC/DC
Vertical resolution    8Bit
Gain range               -6V ~ 6V(probe X1)
                                 -60V ~ 60V(probe X10)
Sample                     1 channel : 1K~24M Hz
                                2 channel : 1K~16M Hz
Save File                The maximum 4G, recording time associated with the sampling rate
