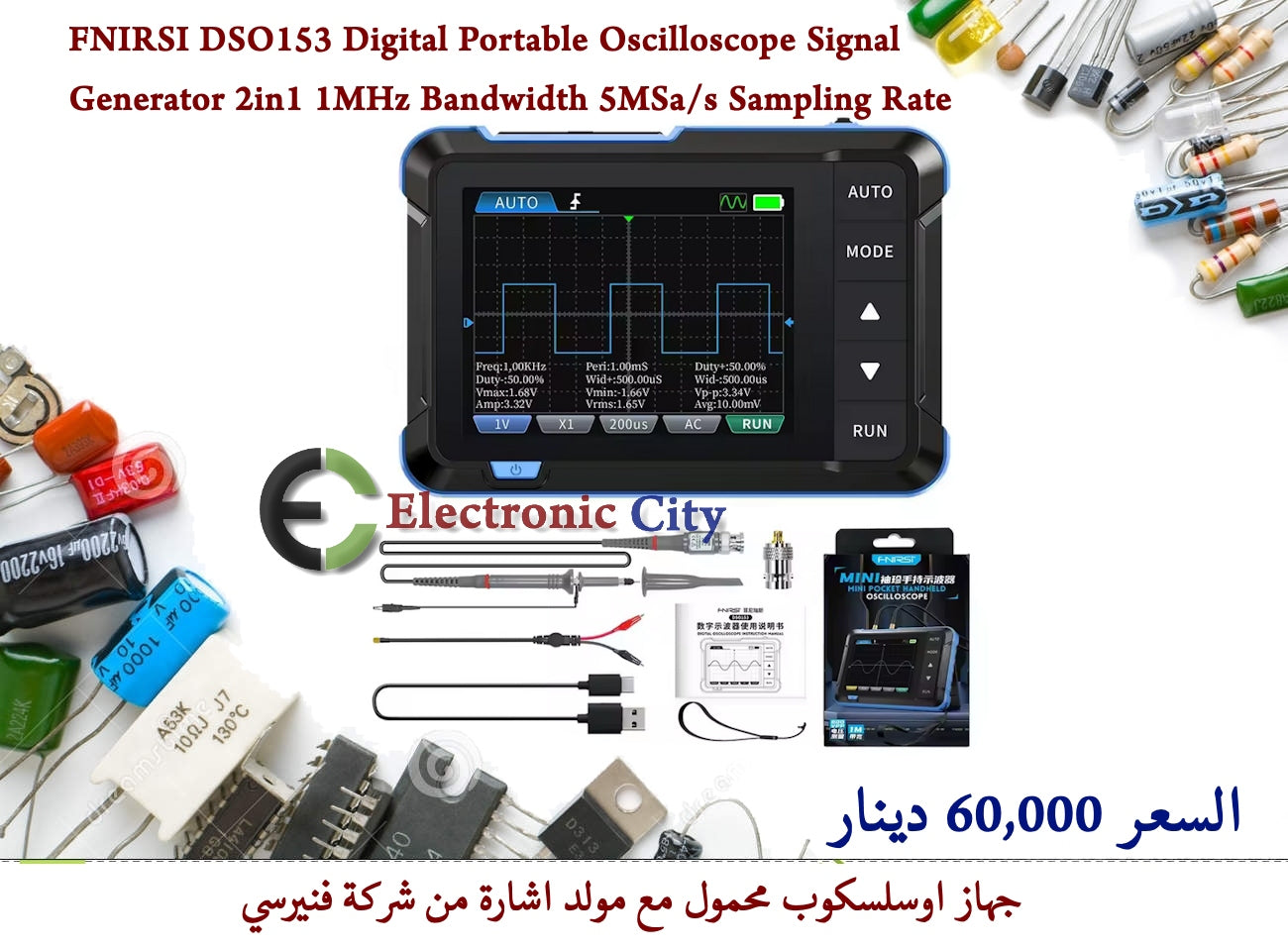

FNIRSI DSO153 Digital Portable Oscilloscope Signal Generator 2in1 1MHz Bandwidth 5MSa-s Sampling Rate

FNIRSI DSO153 Digital Portable Oscilloscope Signal Generator 2in1 1MHz Bandwidth 5MSa-s Sampling Rate

Regular price 60,000 IQD
Regular price Sale price 60,000 IQD
Sale تم نفاذ المنتج

FNIRSI DSO153 Digital Portable Oscilloscope Signal Generator 2in1 1MHz Bandwidth 5MSa-s Sampling Rate



اوسلسكوب محمول عالي الجودة من شركة فنرسي يحتوي على مولد اشارة مدمج

مع البروبات الخاصه به



يتوفر بسعر 60,000 دينار





مرفق فديو لمراجعة سريعة للجهاز

https://www.youtube.com/watch?v=90RMIcfh9z8





Description



DSO-153 is a highly practical and cost-effective handheld oscilloscope launched by our company, targeting the maintenance industry and development education industry.



This oscilloscope has a real-time sampling rate of 5MS/s, 1MHz bandwidth, and complete triggering function (single, normal, auto). It can be used freely for both periodic analog signals and non periodic digital signals, and can measure up to ± 400V voltage with an efficient one click AUTO, which can display the measured waveform without complicated adjustments.



In addition, it also comes with multiple functions signal generator (10KHz). Equipped with a 2.8-inch 320 * 240 resolution HD LCD screen and a built-in 1000mAh high-quality lithium battery, it can be used for about 4 hours when fully charged.





* Mini Oscilloscope *



Sampling rate:5MSa/s

Bandwidth:1MHz

Vertical sensitivity:10mV/Div-20V/Div(Progress according to the 1-2-5 way

Time base range:500ns/Div-20s/Div(Progress according to the 1-2-5 way

Voltage range:X1:士40V (Vpp:80V) X10: 士400V (Vpp :800V)

Trigger method:Auto / Normal / Single

Coupling method:AC/DC







* Signal generator *



Frequency:0-10KHz

Duty cycle0-100% (rectangular and sawtooth

waves)

Amplitude0.1-3.3V

WaveformsSine wave, rectangular wave, sawtooth

wave, half wave, full wave, step wave,

anti step wave, noise wave, exponential

rise, exponential drop, DC signal,

multi tone, Sink pulse, Lorentz wave.





* Other Parameters *



Display:2.8 inches/PPI:320*240

USB charging:5V/1A

Lithium battery capacity:1000mAh

Size:99x68.3x19.5mm

Weight:100g
