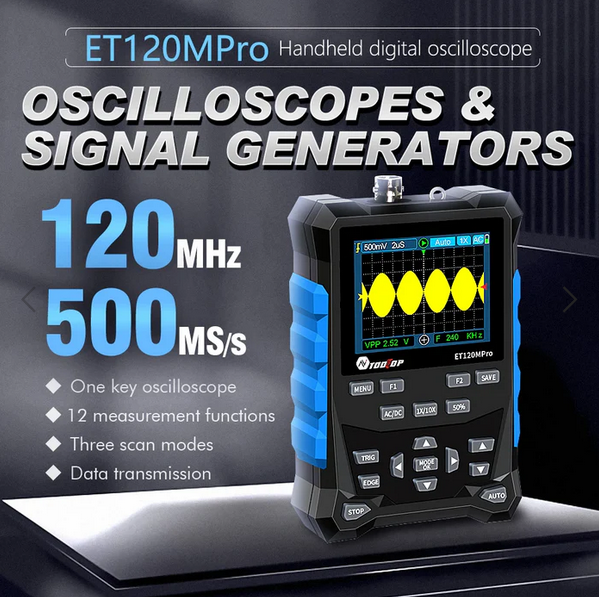

ET120M Professional Handheld Digital Oscilloscope 120MHz Analog Bandwidth 500MS/s Sampling Rate 320x240 LCD Screen Support Waveform Storage with Backlight

Name: ET120M Professional Handheld Digital Oscilloscope 120MHz Analog Bandwidth 500MS/s Sampling Rate 320x240 LCD Screen Support Waveform Storage with Backlight
Brand: Electronic City المدينة الالكترونية
Price: 140000.000 IQD
Availability: InStock

ET120M Professional Handheld Digital Oscilloscope 120MHz Analog Bandwidth 500MS/s Sampling Rate 320x240 LCD Screen Support Waveform Storage with Backlight

140,000 IQD

Sale تم نفاذ المنتج

Quantity

ET120M Professional Handheld Digital Oscilloscope 120MHz Analog Bandwidth 500MS/s Sampling Rate 320x240 LCD Screen Support Waveform Storage with Backlight

Description:

1. 120MHz bandwidth and 500MSps sampling rate

2. Has 4 speeds of square iwave signal output function(1kHz,10KHz,100KHz,1MHz)

3. Portable, hand-held, sufficient power can achieve 6 hours of battery life

4. One-key automatic measurement of waveforms, with one X1/X10 oscilloscope probe included

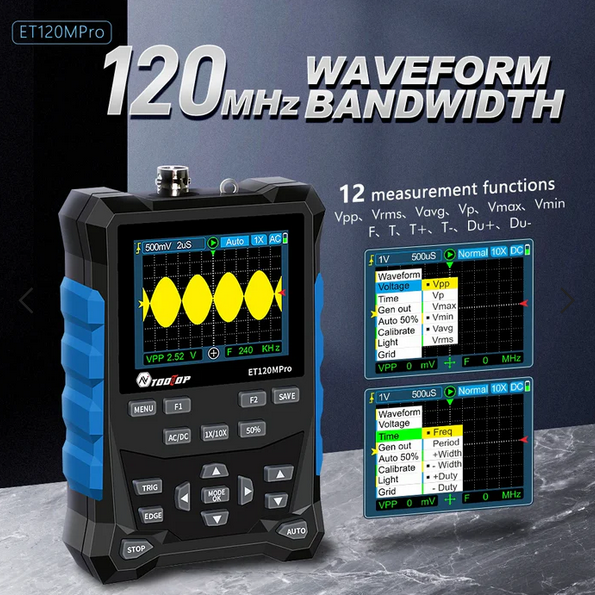

5. 12 kinds of parameter measurement: Vpp, Vrms, Vavg, Vp, Vmax, Vmin,F,T,T+,T-. Du+, Du-

Specifications:

Display	320x240 LCD screen
Display area	50mm x 40mm
Backlight	White, brightness adjustable
Impedance	x1: 1MΩ / x10: 10MΩ
Battery	18650 lithium battery
Auto shutdown	No operation for 15 minutes

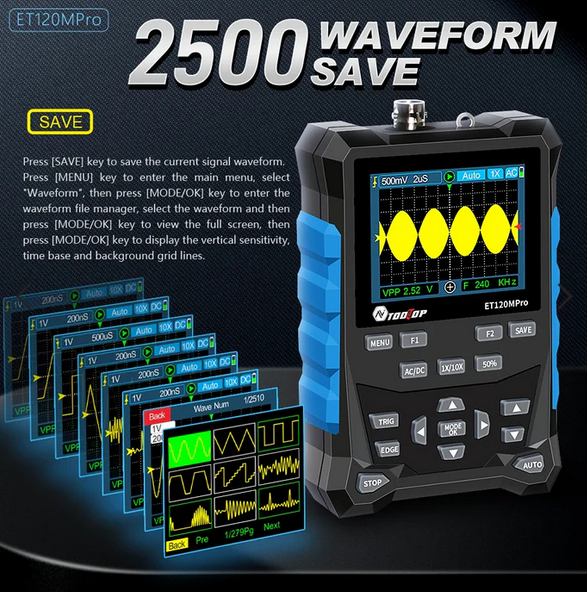

Storage	2500 DSO waveforms
Size	124 X 80 X 35mm
Use conditions	0C~ +40℃; < 75%RH
Storoge conditions	-10C~ +60℃; < 90%RH
Analog bandwidth	120MHz
Vertical resolution	8 bits
Vertical accuracy	±(5%+ 0.2div)
Auto zero reference	During DC meosurement
Trigger level	±3.8div (0. 1div per step)
Trigger position	± 6div (0. 1div per step)
Cursor function	△V, △t, 1 / △t
Measuremer couocyy	±(5%+ 0.2div)
Non. linearity	±1 bits
Coupling method	DC/AC
Division	Verical: ±3.8 Horizontal:12
Time base range	6ns/div ~ 50s/div
Time base accuracy	±(0.01%+0.1div)
Scan mode	Auto/Single/Normal
Trigger slope	Rising / Falling
Record length	12div
Maximum real-time sampling rate	500MSps
Auto configuration	Automatically set time base and vertical amplitude
Aulomatic measurement function	Vpp, Vrms, Vavg, Vp, Vmax, Vmin,F,T,T+,T-. Du+, Du-
Vertical sensifvity range	x1: 50mV/div ~ 10V/div ; x 10: 500mV/div ~ 100V/div
