Electronic City المدينة الالكترونية

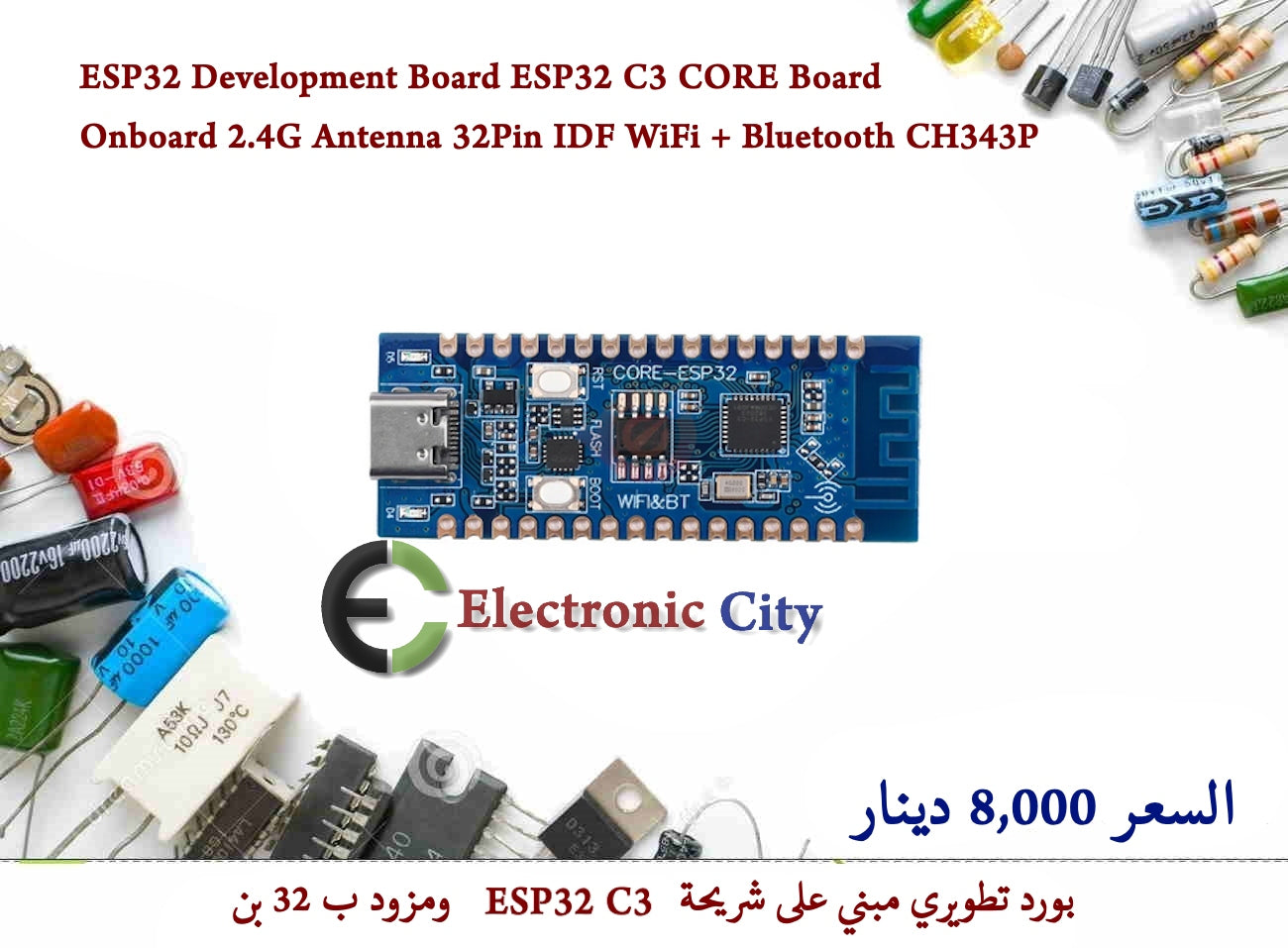

ESP32 Development Board ESP32 C3 CORE Board Onboard 2.4G Antenna 32Pin IDF WiFi + Bluetooth CH343P #S5 FBBA0009-002
ESP32 Development Board ESP32 C3 CORE Board Onboard 2.4G Antenna 32Pin IDF WiFi + Bluetooth CH343P #S5 FBBA0009-002
Regular price
8,000 IQD
Regular price
Sale price
8,000 IQD
Unit price
/
per
Couldn't load pickup availability
ESP32 Development Board ESP32 C3 CORE Board Onboard 2.4G Antenna 32Pin IDF WiFi + Bluetooth CH343P
بورد تطويري مبني على شريحة ESP32 C3 ومزود ب 32 بن ومنفذ تايب سي
يتوفر بسعر 8,000 دينار
Parameter:
CORE-ESP32-C3
ESP32-C3 main control, main frequency 160MHz
On board 4MB flash,
CH343P chip
SPL Flash: 1 channel, onboard 4MB
UART interface: 2-way, UART0~UART1
12 bit ADC: 2 channels, with a maximum sampling rate of 100KSPS
Low speed SPI interface: 1 channel, supporting main mode
IIC controller: 1 channel
PWM interface: 4 channels
GPIO external pins: 15 channels, reusable
LED indicator lights: 2 channels
Reset button: 1 channel
BOOT button: 1 channel
USB to TTL download and debugging port: 1 channel, supporting automatic download
2.4G PCB onboard antenna
Size: 21mm x 51mm
