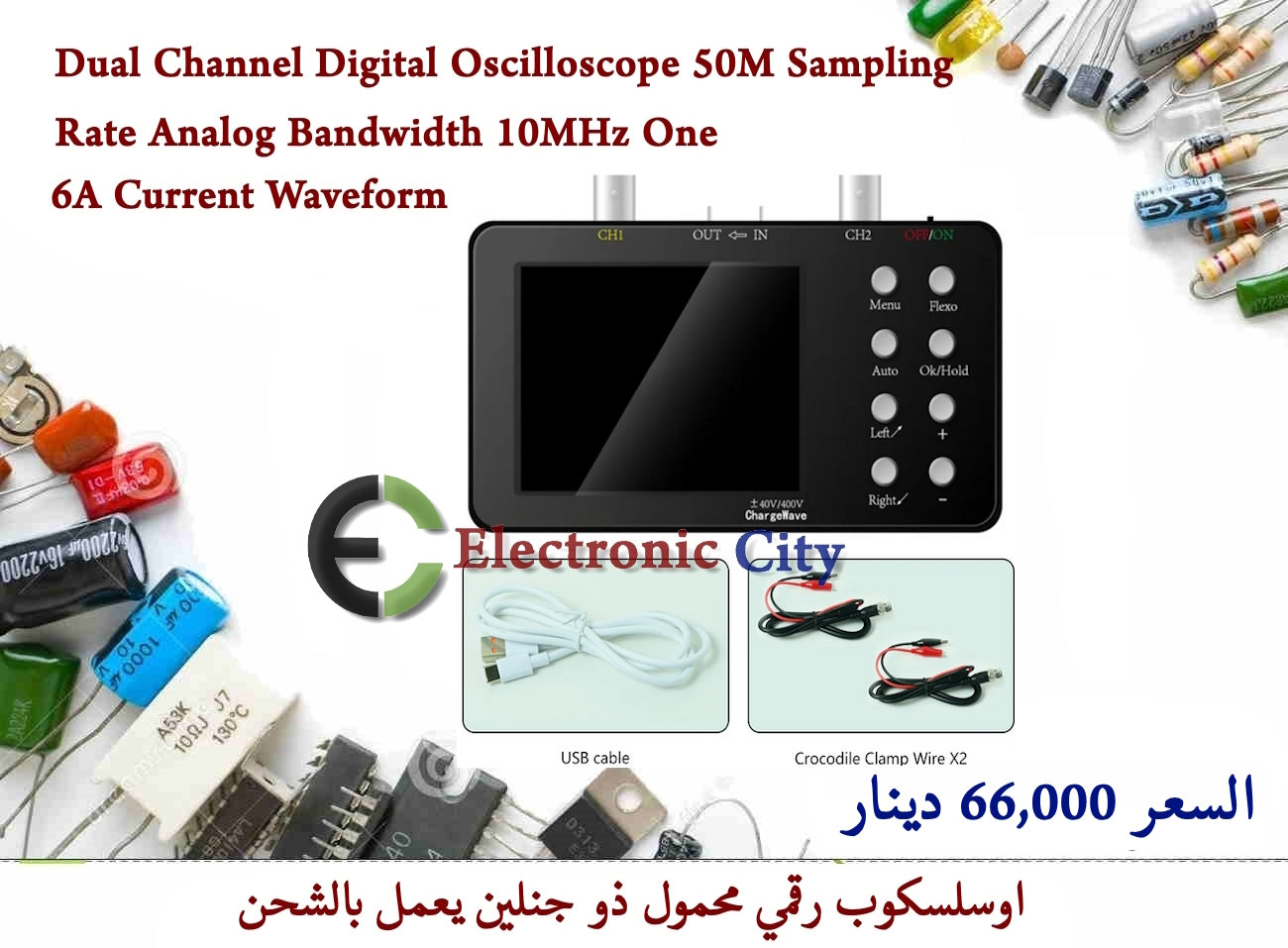

Dual Channel Digital Oscilloscope 50M Sampling Rate Analog Bandwidth 10MHz One GYQX0057-001

Dual Channel Digital Oscilloscope 50M Sampling Rate Analog Bandwidth 10MHz One GYQX0057-001

66,000 IQD
66,000 IQD
Sale تم نفاذ المنتج
Dual Channel Digital Oscilloscope 50M Sampling Rate Analog Bandwidth 10MHz One 6A Current Waveform

اوسلسكوب رقمي محمول بقناتين مع خاصية رسم اشارة التيار حيث يمكنه رسم اشارة تيار لغاية 6 امبير

يتوفر بسعر 66,000 دينار

مرفق فديو يوضح عمل الجهاز
https://www.youtube.com/watch?v=MUzz0Dgoojk

Specifications:
Model: SCO_2_10M
Sampling rate: 50M/ channel
Number of channels: 2
Analog bandwidth: 10MHz (per channel)
Measurement voltage: X1/+40V X10/ Earth 400V
Input impedance: 1MQ
Storage depth: 20Kb
Parameter display: 12 kinds
Current measurement: 0~6A
Minimum accuracy: 2mA
Current sampling rate: 2.5KSa/S
Display: 3.2 "LCD
Resolution: 320* 240
Charging voltage: 5V
Battery capacity: 2500mAh
Continuous working time: 4.5-6h
Upper computer: to be updated
Firmware upgrade: Supported
Size: Length 120mm* Width 66mm* thickness 18.5mm(excluding BNC head)

Attention:
1. When measuring voltages over 40V, be sure to flip the probe gear to X10.
2. When measuring high voltage (more than 36V AC voltage), do not touch the metal part of the instrument, especially the BNC interface position.
3. The charging voltage should not exceed 6.8V to avoid burning the charging chip.
4. Only when the mains is measured, it is absolutely prohibited to connect with the computer, which will cause the neutral ground wire to short circuit!
