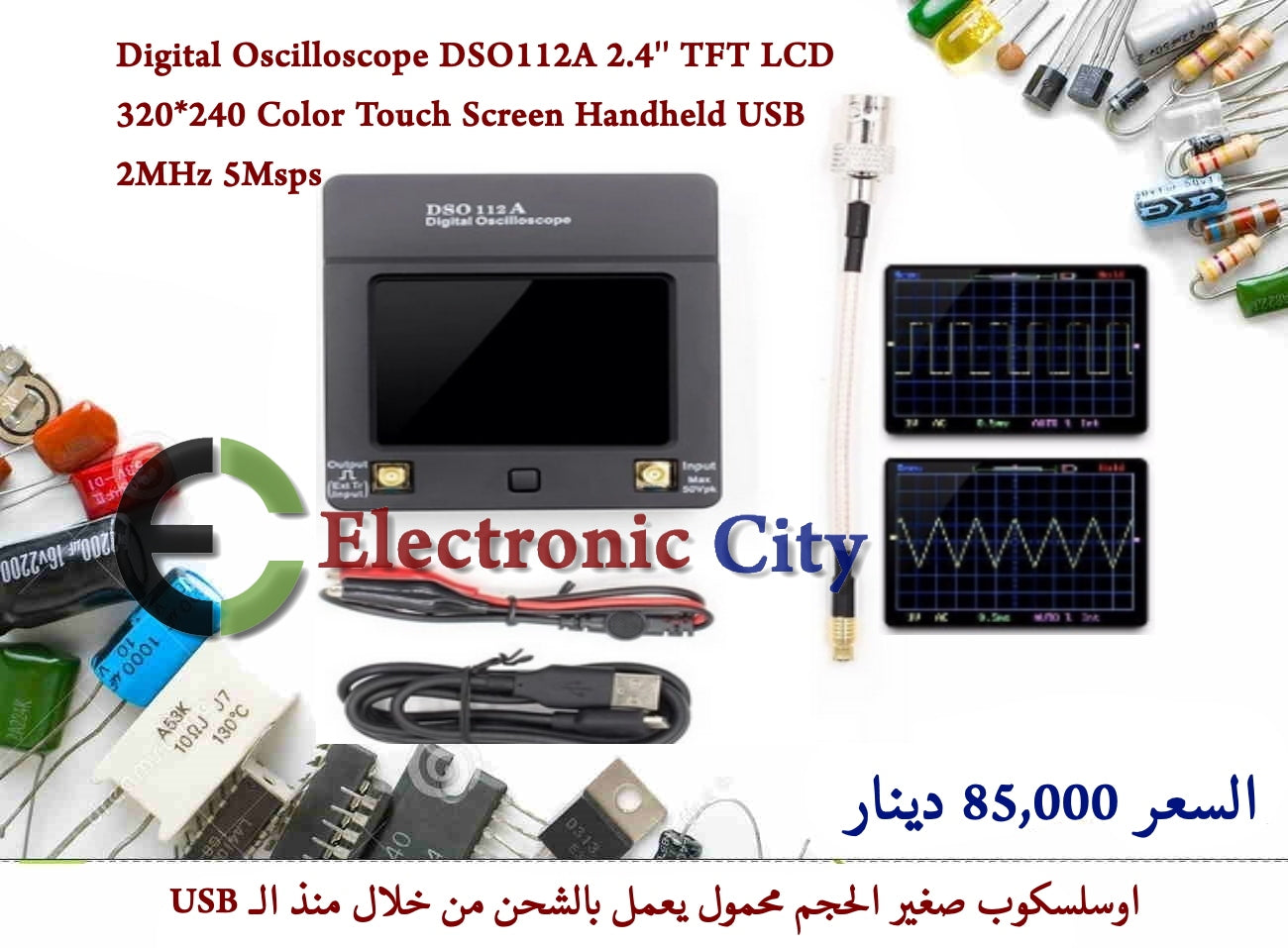

Digital Oscilloscope DSO112A 2.4'' TFT LCD 320*240 Color Touch Screen Handheld USB 2MHz 5Msps
Digital Oscilloscope DSO112A 2.4'' TFT LCD 320*240 Color Touch Screen Handheld USB 2MHz 5Msps
Regular price
85,000 IQD
Regular price
Sale price
85,000 IQD
Unit price
per
Couldn't load pickup availability
Digital Oscilloscope DSO112A 2.4'' TFT LCD 320*240 Color Touch Screen Handheld USB 2MHz 5Msps
اوسلسكوب صغير الحجم محمول يعمل بالشحن من خلال منذ ال USB
`ذو شاشة لمس تسهل من عملية القياس
يتوفر بسعر 85,000 دينار
المواصفات التقنية للمنتج
Performance parameters:
• 2.4' TFT 320*240
• Analog Bandwidth: 0 – 2MHz
• Highest real-time sampling rate: 5Msps
• Vertical sensitivity: 2mV/Div – 20V/Div Total 12 files (inward by 1-2-5)
• Horizontal time base range: 1μs/Div – 50s/Div Total 21 files (into 1-2-5 way)
• Maximum input voltage: 50Vpk (100Vpp)
• Record length: 512/1024 points optional
• Input impedance: 1MΩ
• ADC accuracy: 8Bit
• Coupling method: DC/AC
• Trigger mode: Auto (AUTO), Normal (NORM) and Single (SING)
• Trigger edge: rising and falling
• Trigger source: internal, external
• External trigger voltage range: 0 - 15V
• The waveform display can be frozen at any time (HOLD function)
• Unique scrolling slow signal display, which can display signals continuously and continuously, unlike SCAN mode, which causes signal display to be discontinuous
• Time cursor to automatically calculate the time difference and display
• Voltage cursor for automatic calculation of voltage difference and display
• Frequency meter function: display signal frequency directly
• Voltmeter function: directly display the maximum, minimum, peak-to-peak, average, and true rms values of the waveform signal
• With 3.3V square wave test signal, the signal frequency can be set to 1Hz/10Hz/100Hz/1KHz/10KHz/100KHz/1MHz/440Hz
• Save/recall acquisition waveforms
• Waveform data PC upload
• Battery / USB powered
• Built-in smart charger
• Size: 70 X 80 X 18 mm
