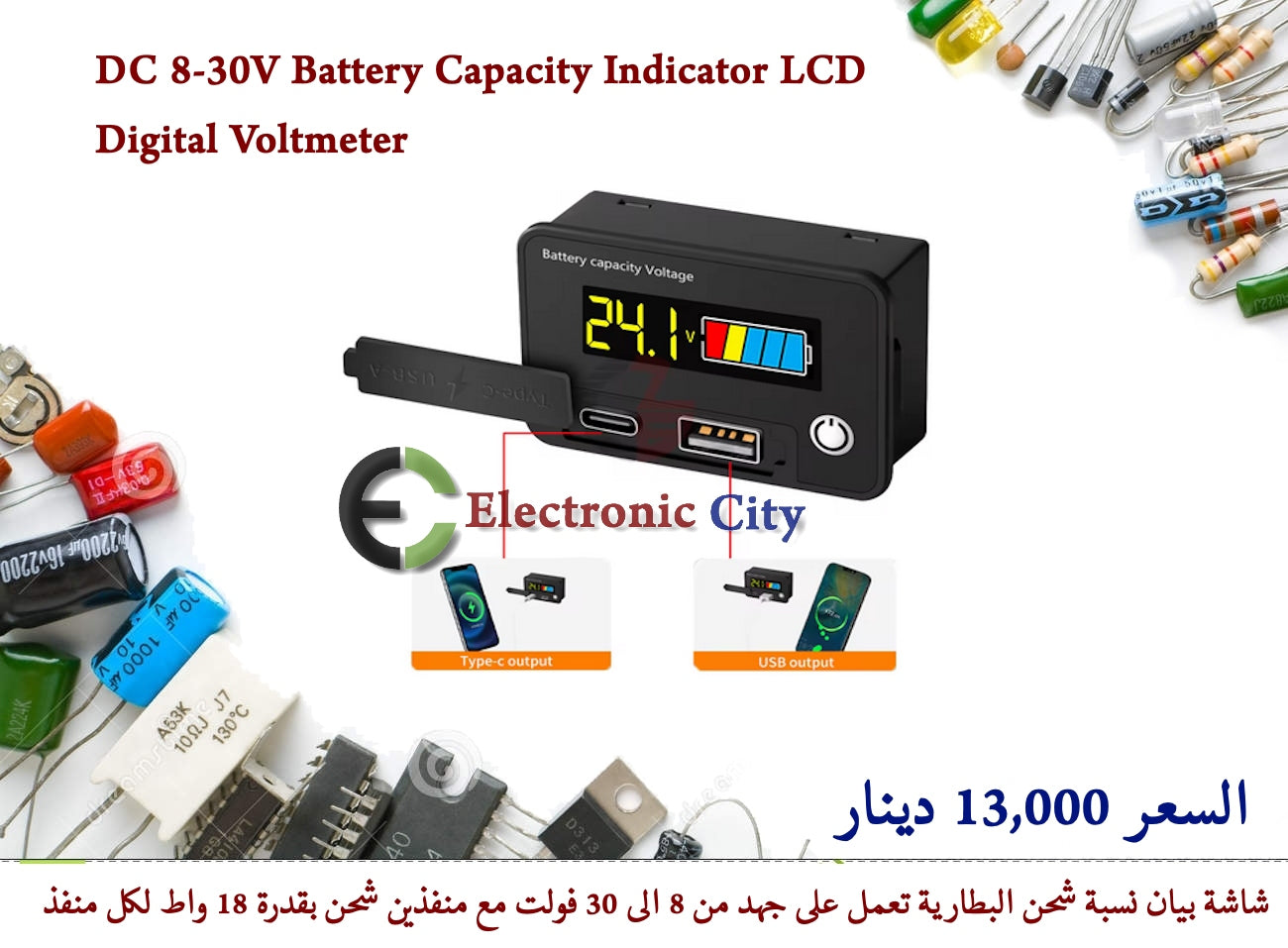

DC 8-30V Battery Capacity Indicator LCD Digital Voltmeter #V3 KBAB0024-004

DC 8-30V Battery Capacity Indicator LCD Digital Voltmeter

مقياس شحن البطاريات من 8 الى 30 فولت
موافق مع بطاريات الليثيوم ايون و الليثيوم فوسفات والحامضية
مزود بمنفذين شحن بقدرة 18 واط

Product selling points:
1. Measurement of ternary lithium battery L: L03 S to L07 S (power-off memory).
2. Acid battery P measurement: DC12V, DC24V (power-off memory).
3. Measurement of iron lithium battery F: F03 S to F08 S (power-off memory).
4. Customize the high and low voltage range: DC8-30V.
5. Multiple battery types can be set, custom high and low voltage settings, low voltage alarm, and backlight time settings can be customized.
6. The voltage detection range is DC8-30V, the working current is<15mA, and the detection is accurate and sensitive.
7. Wide application range: suitable for high and low distribution cabinets, assembly line testing, electronic maintenance, DIY and other fields.

Product parameters:
Voltage detection range: DC 8~30V
Working current:<15mA
Display mode: LCD screen
Detection accuracy: ± 1%
Refresh speed: 500ma/time
Display screen colors: green, white, blue, color
USB output: QC2.0, QC3.0, maximum output 18W (5V-3.4A, 9V-2A, 12V-1.5A)
Type-C output: QC2.0, QC3.0, maximum output 18W (5V-3.1A, 7V-2.4A, 9V-2A, 12V-1.5A)
Installation size: 58.5 * 36.5mm
Appearance size: 61 * 40 * 22mm
