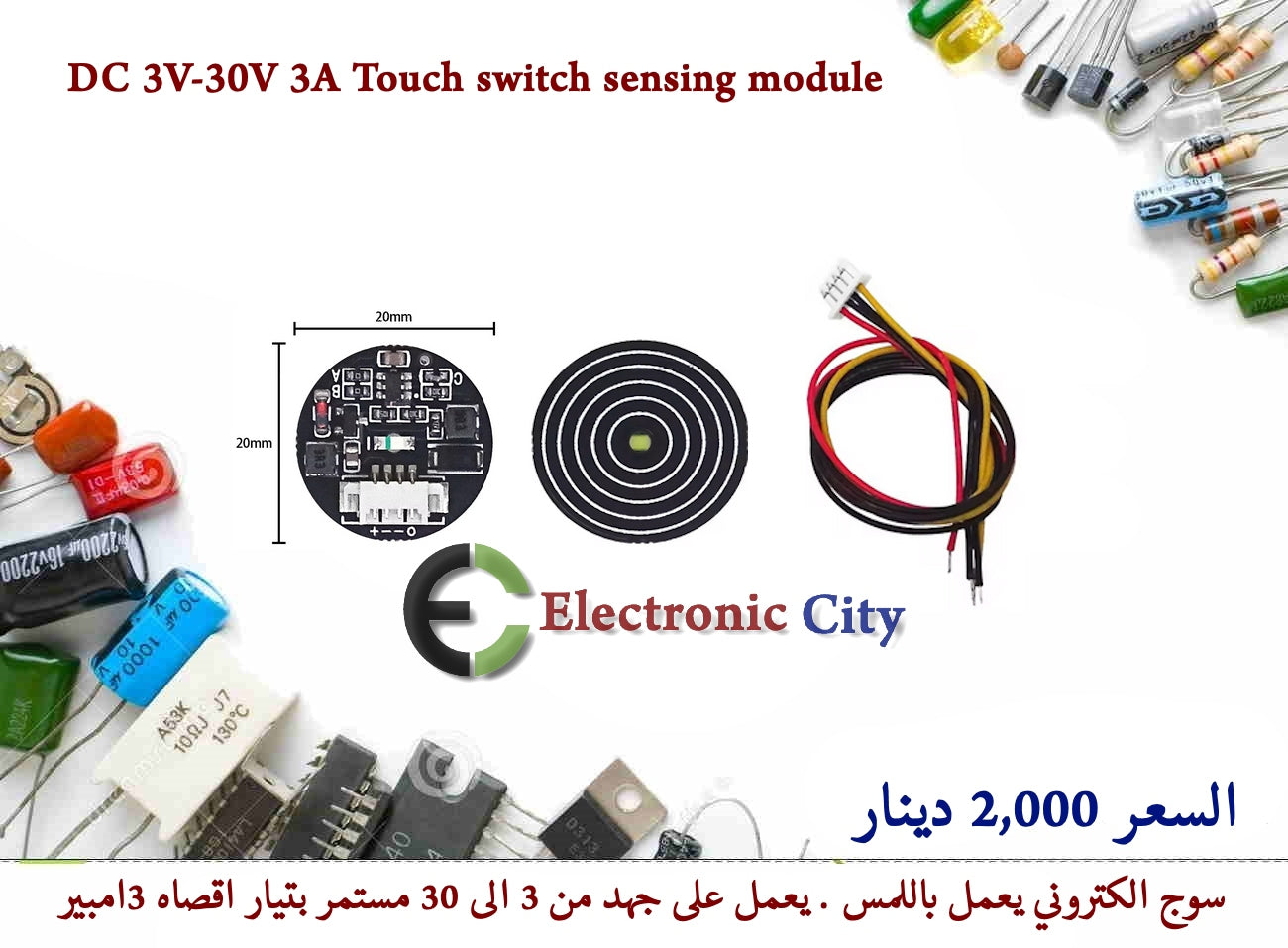

DC 3V-30V 3A Touch switch sensing module #N1 012498

DC 3V-30V 3A Touch switch sensing module #N1 012498

2,000 IQD
2,000 IQD
Sale تم نفاذ المنتج
DC 3V-30V 3A Touch switch sensing module

سوج الكتروني يعمل باللمس
يعمل على جهد من 3 الى 30 فولت مستمر
وتيار خرج اقصاه 3 امبير

يتوفر بسعر 2,000 دينار


ABC three custom function description

*A (default 0R resistance)

Select the output status after power-on

When there is 0R resistance at point A, the output is turned off after power-on.

When there is no 0R resistance at point A, the voltage is directly output after power-on


*B (default 0R resistance)

Latch mode, click mode

Latch mode when point B has 0R resistance (click on/off)

Point B without 0R resistance is the point mode (touch has output, release no output)


*C Sensitivity adjustment

Adjust the distance of touch sensing, default is the maximum distance (7-8mm)

If you want to reduce the sensitivity, you can install a capacitor of 1~50PF according to the actual situation, the smaller the capacitor, the higher the sensitivity, and the larger the capacitor, the lower the sensitivity
