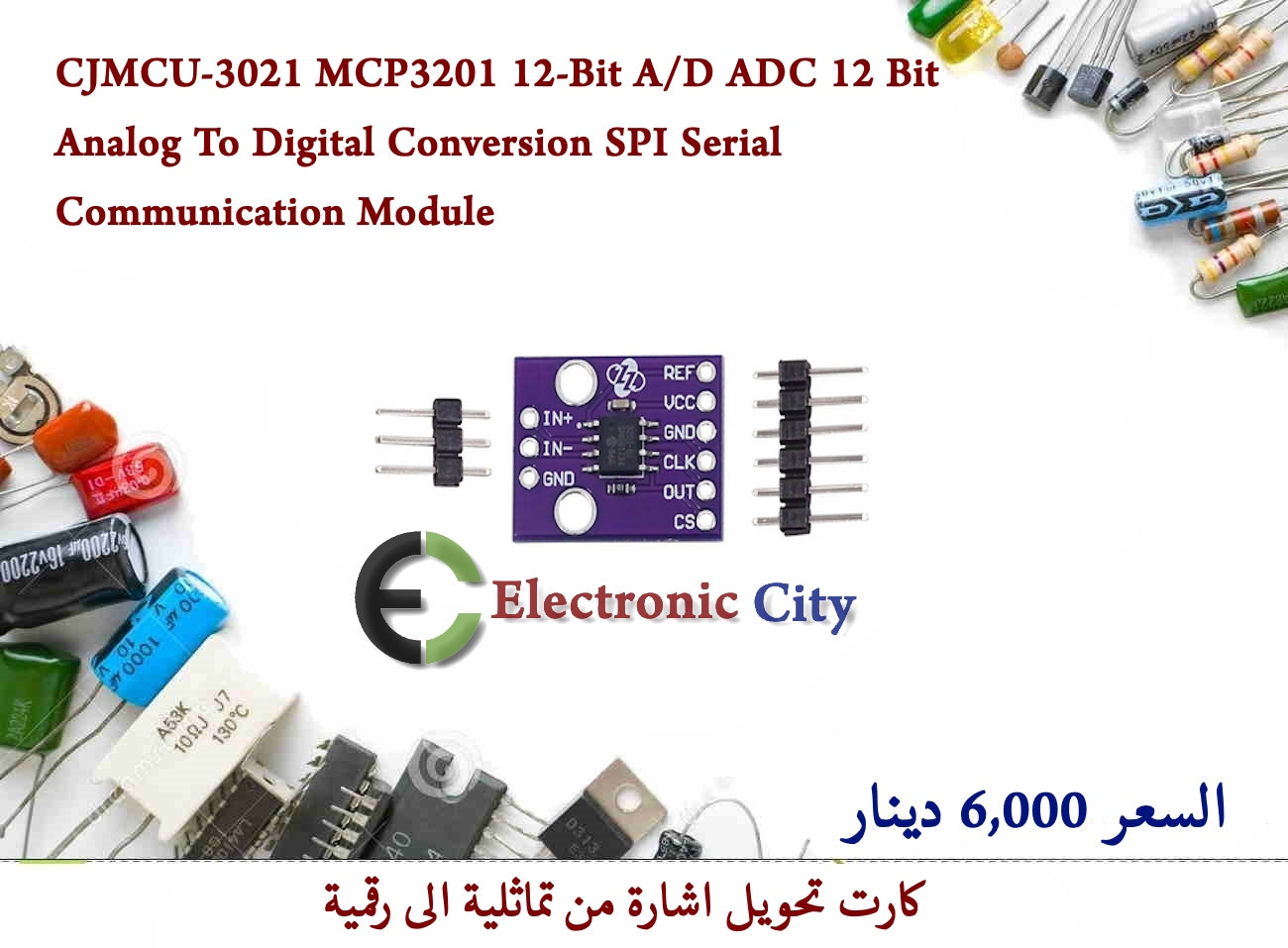

CJMCU-3021 MCP3201 12-Bit A-D ADC 12 Bit Analog To Digital Conversion SPI Serial Communication Module

كارت تحويل اشارة من تاثلية الى رقمية

يتوفر بسعر 6,000 دينار

Features:

12-Bit resolution
±1 LSB max DNL
±1 LSB max INL(MCP3201-B)
±2 LSB max INL(MCP3201-C)
On-chip sample and hold
SPI serial interface(modes 0,0 and 1,1)
Single supply operation: 2.7V-5.5V
100 ksps Maximum sampling rate at VDD=5V
50 ksps Maximum sampling rate at VDD=2.7V
Low-Power CMOS technology
500nA typical standby current, 2uA maximum
400 uA maximum active current at 5V
Industrial temp range:-40° to +85°
8-pin MSOP, PDIP, SOIC and TSSOP packages

Description:

The microchip technology Inc. MCP3201 device is a successive approximation 12-bit analog-to-digital(A/D) converter with on-board sample and hold circuitry. The device provides a single pseudo-differential input. Differential Nonlinearity (DNL) is specified at ±1 LSB, and Integral Nonlinearity (INL) is offered in ±1 LSB (MCP3201-B) and ±2 LSB (MCP3201-C) version, Communication with the device is done using a simple serial interface compatible with the SPI protocol. The device is capable of sample rates of up to 100 ksps at a clock rate of 16MHz. The MCP3201 device operates over a broad voltage range(2.7-5.5V). Low-current design permits operation with typical standby and active currents of only 500nA and 300uA, respectively. The device is offered in 8-pin MSOP, PDIP, TSSOP, and 150 mil SOIC packages.

Applications:

Sensor interface
Process control
