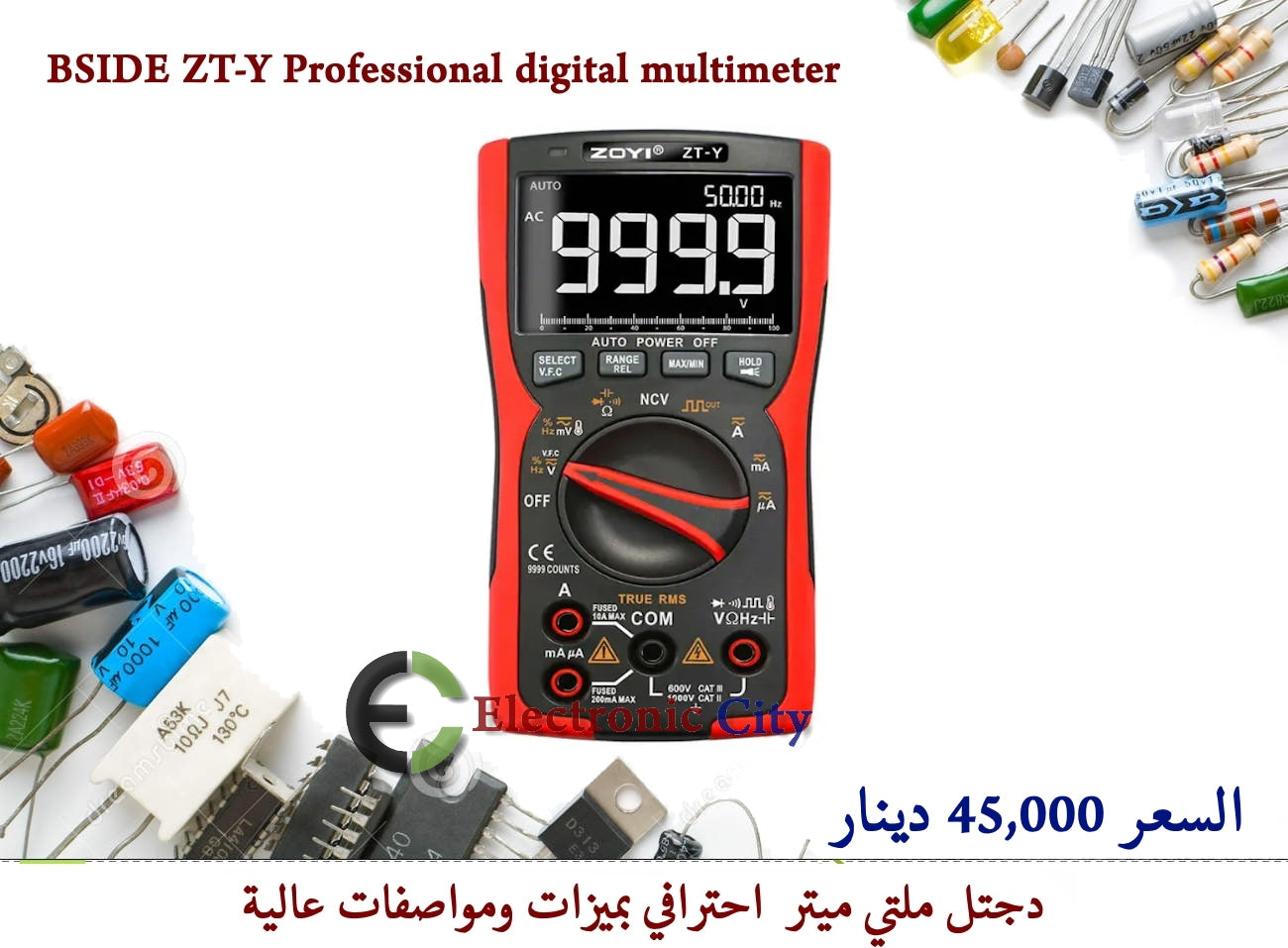

BSIDE ZT-Y Professional digital multimeter True-RMS 9999 #AA. 11308

BSIDE ZT-Y Professional digital multimeter True-RMS 9999 #AA. 11308

Regular price 50,000 IQD
Regular price Sale price 50,000 IQD
Sale تم نفاذ المنتج
BSIDE ZT-Y Professional digital multimeter True-RMS 9999

ملتي ميتر احترافي بمواصفات عالية جدا
يمكن من خلاله قياس المقاومة والدايود والفوتلية والتيار والتردد والمتسعة والحرارة
يحتوي على خاصية تحسس وجود التيار دون تلامس
يحتوي على خاصية الاطفاء الذاتي
يحتوي على خاصية توليد موجة مربعة
يحتوي على كشاف انارة


يتوفر بسعر 50,000 دينار

مرفق فديو توضيحي لعمل الجهاز

https://ae-cn.alicdn.com/9f8e1de30350cb41/w96Oda3EtUsmhtwQbII/ORJYEmgTuamsl0Fqdp0_292296737399_hd_hq.mp4


Product Advantages :
1. [ 9999 Counts / True RMS Multimeter ] : This 9999-count TRMS auto-ranging digital multimeter has high accuracy, stability and reliability. Is the best choice for professional electricians and electronics enthusiasts.
2. [ EBTN LCD Display ] : This product uses the latest EBTN (enhanced background twisted nematic) display technology. Can greatly improve the reading experience. the lighted up numbers & letters with black background make it very easy to read, even in bright sunlight or poor light.
3. [ Large Screen 3 Line Display ] : Large screen triple line display can show 3 test results on the screen, such as voltage, frequency and analog bar.Convenient and fast.
4. [ Multifunction-Multimeter ]:Can measure DC/AC Voltage, DC/AC Current, Resistance, Capacitance, Frequency, Duty Cycle, Diode, Continuity, NCV and temperature. etc.
5. [ Insulation protective Case ] : It features a Insulation protective Case for protection against shocks, friction and bumps. And more secure.
6. Portable Design : It's small and handheld,there is a back bracket for supporting multimeter.
7. More advantages : Auto range,true RMS,auto power off,low battery indication and over range indication.

Test Range:
Display: 9999 counts.
MAX/MIN function: Yes.
DC Voltage: 9.999mV/99.99mV/999.9mV/9.999V/99.99V/999.9V ±(0.5%+3)
AC Voltage: 9.999mV/99.99mV/999.9mV/9.999V/99.99V/750.0V ±(1.0%+3)
DC Current: 99.99μA/999.9μA/9.999mA/99.99mA/999.9mA/9.999A ±(1.0%+3)
AC Current: 99.99μA/999.9μA/9.999mA/99.99mA/999.9mA/9.999A ±(1.2%+3)
Resistance:
99.99Ω ±(1.0%+3); 999.9Ω/9.999kΩ/99.99kΩ/999.9kΩ ±(0.5%+3);
9.999MΩ ±(1.5%+3); 99.99MΩ ±(3.0%+3)
Capacitance:
9.999nF ±(5.0%+20); 99.99nF/999.9nF/9.999μF/99.99μF/999.9μF ±(2.0%+5);
9.999mF ±(5.0%+5)
Frequency: 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/5.000 MHz ±(0.1%+2)
Duty Cycle: 1%~99% ±(0.1%+2)
Temperature: (-20~1000)℃/(-4~1832)℉ ±(2.5%+5)
Square wave output: Yes.
Flashlight lighting: Yes.
V.F.C function:  Yes.
Diode: show the forward voltage.
NCV: alarm beep sounds if detect AC voltage
Continuity: alarm beep sounds if there is a short circuit
Power: 1.5V (AAA) x 3
Size: 147mm * 76mm * 37mm
Weight: 209g
