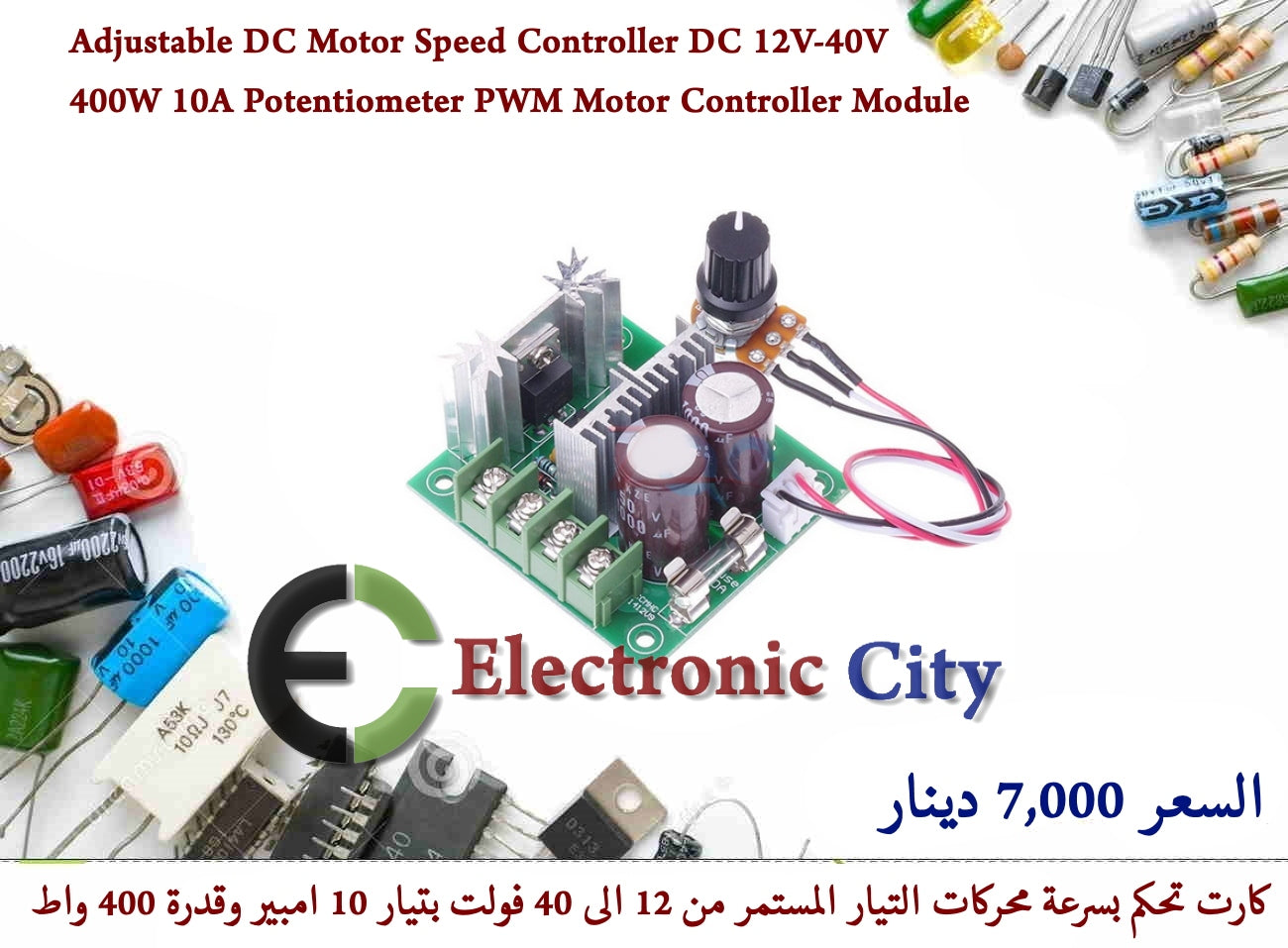

Adjustable DC Motor Speed Controller DC 12V-40V 400W 10A Potentiometer PWM Motor Controller Module
Adjustable DC Motor Speed Controller DC 12V-40V 400W 10A Potentiometer PWM Motor Controller Module
Regular price
7,000 IQD
Regular price
Sale price
7,000 IQD
Unit price
per
Couldn't load pickup availability
Adjustable DC Motor Speed Controller DC 12V-40V 400W 10A Potentiometer PWM Motor Controller Module
كارت تحكم بسرعة محركات التيار المستمر من 12 الى 40 فولت بتيار 10 امبير وقدرة 400 واط
يتوفر بسعر 7,000 دينار
Specification:
Input supply voltage: 12V-40VDC
The maximum output power: 0.01-400W
The maximum continuous output current :8A;
The overload and short circuit protecting current is 10A
PWM frequency: 13 kHz
Duty Cycle adjustable: 10%-100%
The 10A fuse with reverse connection of power supply and control voltage over-voltage protection function
Item size:60 * 55 * 28mm
كارت تحكم بسرعة محركات التيار المستمر من 12 الى 40 فولت بتيار 10 امبير وقدرة 400 واط
يتوفر بسعر 7,000 دينار
Specification:
Input supply voltage: 12V-40VDC
The maximum output power: 0.01-400W
The maximum continuous output current :8A;
The overload and short circuit protecting current is 10A
PWM frequency: 13 kHz
Duty Cycle adjustable: 10%-100%
The 10A fuse with reverse connection of power supply and control voltage over-voltage protection function
Item size:60 * 55 * 28mm
