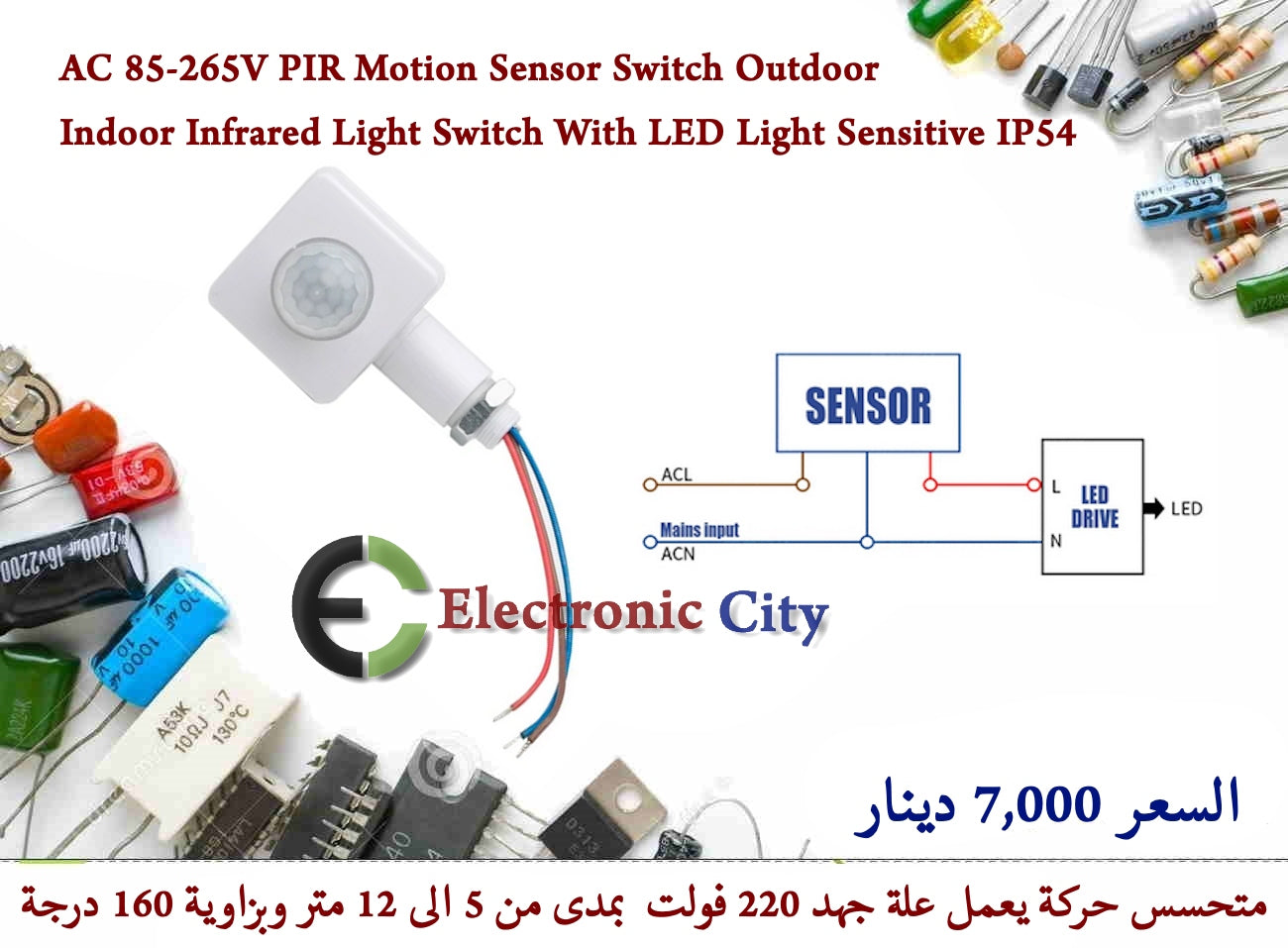

AC 85-265V PIR Motion Sensor Switch Outdoor Indoor Infrared Light Switch With LED Light Sensitive IP54 #J8 XB0057-02

AC 85-265V PIR Motion Sensor Switch Outdoor Indoor Infrared Light Switch With LED Light Sensitive IP54 #J8 XB0057-02

7,000 IQD
7,000 IQD
Sale تم نفاذ المنتج
AC 85-265V PIR Motion Sensor Switch Outdoor Indoor Infrared Light Switch With LED Light Sensitive IP54

متحسس حركة يعمل على جهد من 85 الى 265 فولت بمدى تحسسمن 5 الى 12 متر وزاوية 160 درجة

يتوفر بسعر 7,000 دينار


Parameters:
Product name: Human body infrared sensor
Material: flame retardant ABS
Product color: black/white
Delay time: 5 seconds - 8 minutes (adjustable)
Detection angle: 160°
Installation height: 1.8-2.5M
Ambient light: 2-200OLUX (adjustable)
Working humidity: <93% RH
Operating temperature: -10°C~+40°C
Product size: 75*42*52mm
Product weight: 45g
Detection distance: 5-12M (24°C) adjustable
Opening size: opening 12mm, 10mm
Power consumption: <0.4W
Working voltage: AC85-265V (support customization)
Working frequency: 50/60Hz
Installation method: opening, when installing, the adjustment button faces down
Rated load: 300W tungsten lamp; 60W energy saving lamp.LED lamp
Wiring instructions: N-blue (connected to neutral wire) L-brown (connected to live wire) output a red sensor output wire)
Blue and brown input power blue and red connected to load (lamp)
