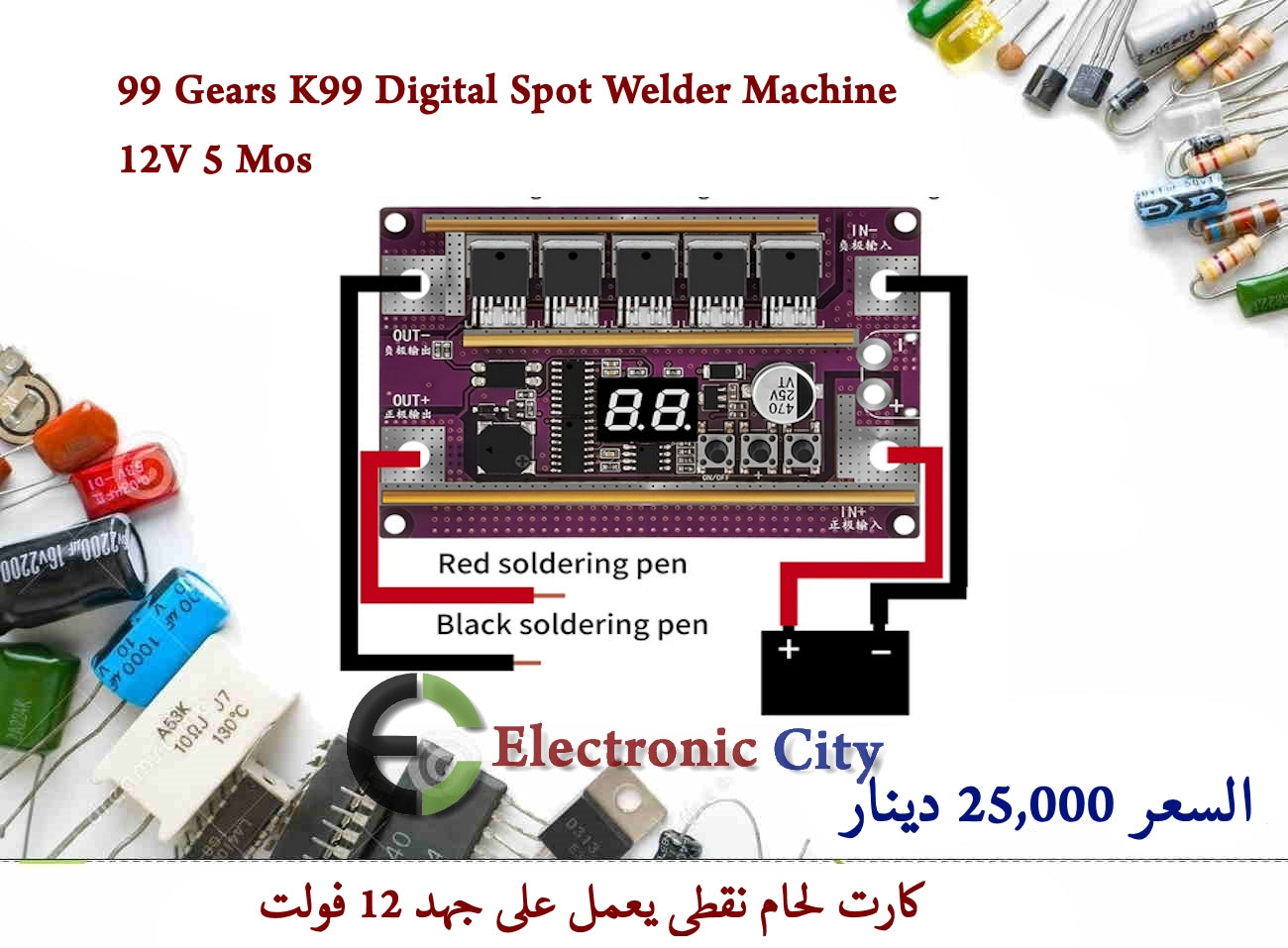

99 Gears K99 Digital Spot Welder Machine 12V 5 Mos

99 Gears K99 Digital Spot Welder Machine 12V 5 Mos

كارت لحام نقطي يعمل على جهد 12 فولت

يحتوي علة 5 موسفت بقدرة عالية قادرة على لحام اشرطة نيكل حتة 0.3 ملم بكفائة عالية

يحتوي على شاشة وازرار لاختيار قوة اللحام

يتوفر بسعر 25,000 دينار

** ملاحظة

-جميع كروت اللحام لا تعمل على مجهزات القدرة

-يشترط استخدام بطارية سيارة من 45 الى 80 امبير تكون مشحونة وبحالة جيدة

او استخدام باك بطاريات ليثيوم 3S 60C او اكثر

Description

Report Item

1. 99 gear power adjustment, digital tube real-time gear display, gears 0-99, 1st gear is the lowest, 99th gear is the highest, increase the gears in turn when using

2. Using 5 MOS tubes: The control board of the spot welding machine adopts 5 MOS tubes. After 5 parallel connection, the theoretical maximum current can reach about 1700A.

3. 8 square spot welding pen, 10AWG wire, alumina copper spot welding needle, to over-current capability and durability, greatly improve spot welding efficiency

4. Bilateral outlet, easy to spot welding, the product is marked, it is not easy to connect wrongly

5. Suitable for 14650, 17490, 18650, 21700, 26650, 32650 and other cylindrical lithium batteries, nickel-hydrogen batteries, etc., can be spot welded firmly, support 0.1-0.3mm nickel sheet spot welding

Product name: 99 gear spot welding machine

Working voltage: 6.5V-16V

Working current: Less than 20ma

Standby power consumption: Less than 0.5ma

Recommended use temperature: -10-60℃

Voltage: 12V

Welding current: 1700A MAX

Thickness of welded nickel sheet: 0.1-0.3mm (related to battery discharge energy)

Capacity: 20AH-80AH (new battery no more than 45AH or: 4-5 strings of super Farad capacitors)

: It is forbidden to use switching power supplies, , chargers, water batteries, and power to supply power!

Product size: 90x60mm
