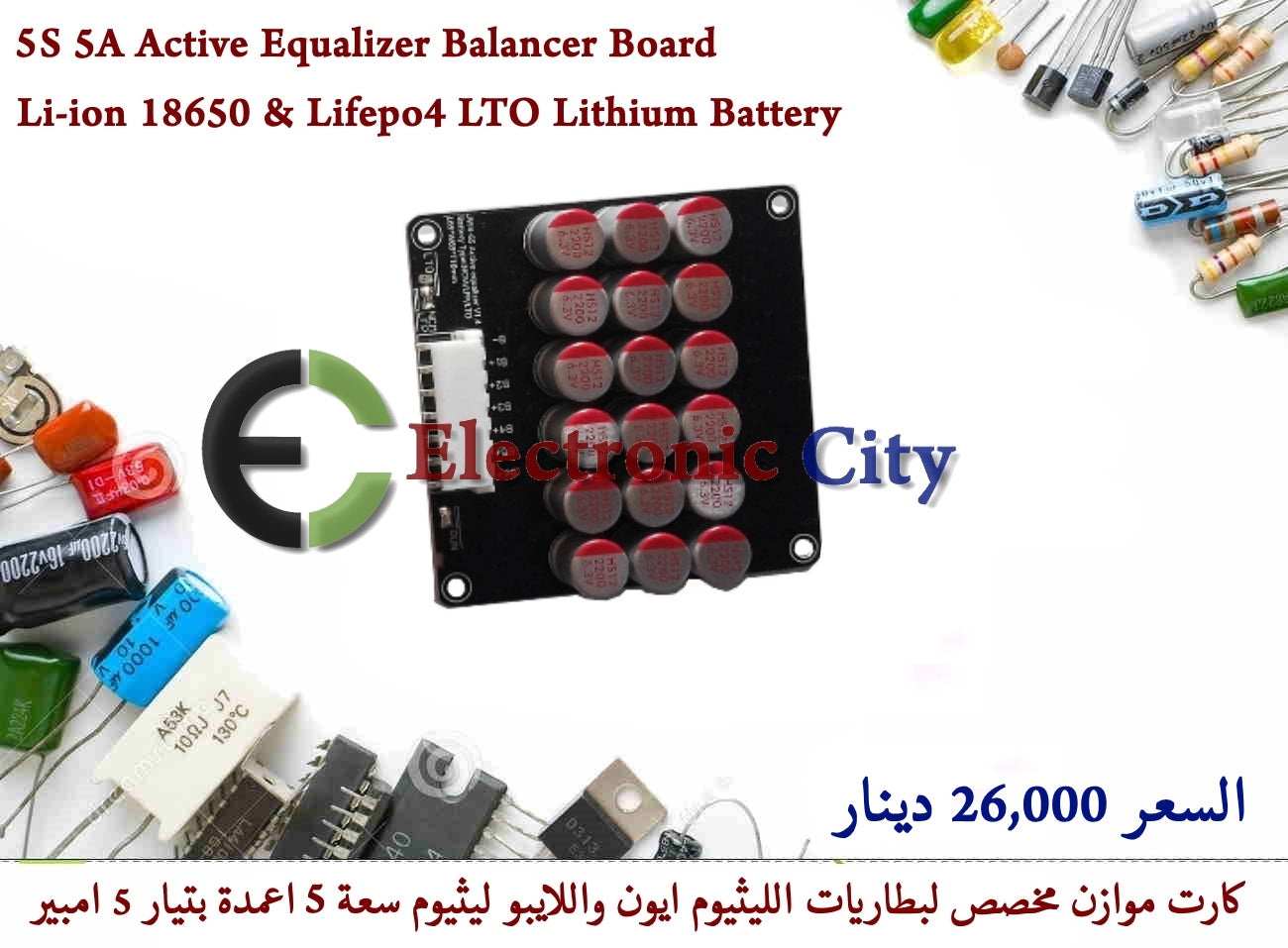

5S 5A Active Equalizer Balancer Board Li-ion 18650 & Lifepo4 LTO Lithium Battery #F7

5S 5A Active Equalizer Balancer Board Li-ion 18650 & Lifepo4 LTO Lithium Battery

كارت معادلة فولتية بطاريات الليثيوم سعة 5 عمود بتيار معادلة 5 امبير
متوافق مع بطاريات الليثيوم ايوم 18650 وبطاريات اللايبو 4

يتوفر بسعر 31,000 دينار





Balanced version features:
Working voltage: 1.8V-4.5V

Suitable for ternary lithium, lithium iron phosphate, lithium titanate.

Working principle, the capacitor fit transfers the charge mover, the equalization board is connected to the battery, and the equalization is started. The original new ultra-low internal resistance MOS, 2OZ copper thickness PCB

Equilibrium current 0-5.5A, the more balanced the battery, the smaller the current, with manual sleep switch, sleep current mode is less than 0.1mA, the balance voltage accuracy is within 5mv!

The quiescent current is about 12 mA. It is recommended that the battery capacity is 60-300AH.

With under-voltage sleep protection, the voltage will stop automatically when the voltage is lower than 3.0V, and the standby power consumption is less than 0.1mA.

LTO Only means that this edition is only applicable to lithium titanate. The indication without LTO applies to ternary lithium and lithium iron phosphate.

14s for all/15-17S for all is suitable for ternary lithium, lithium iron phosphate, lithium titanate
