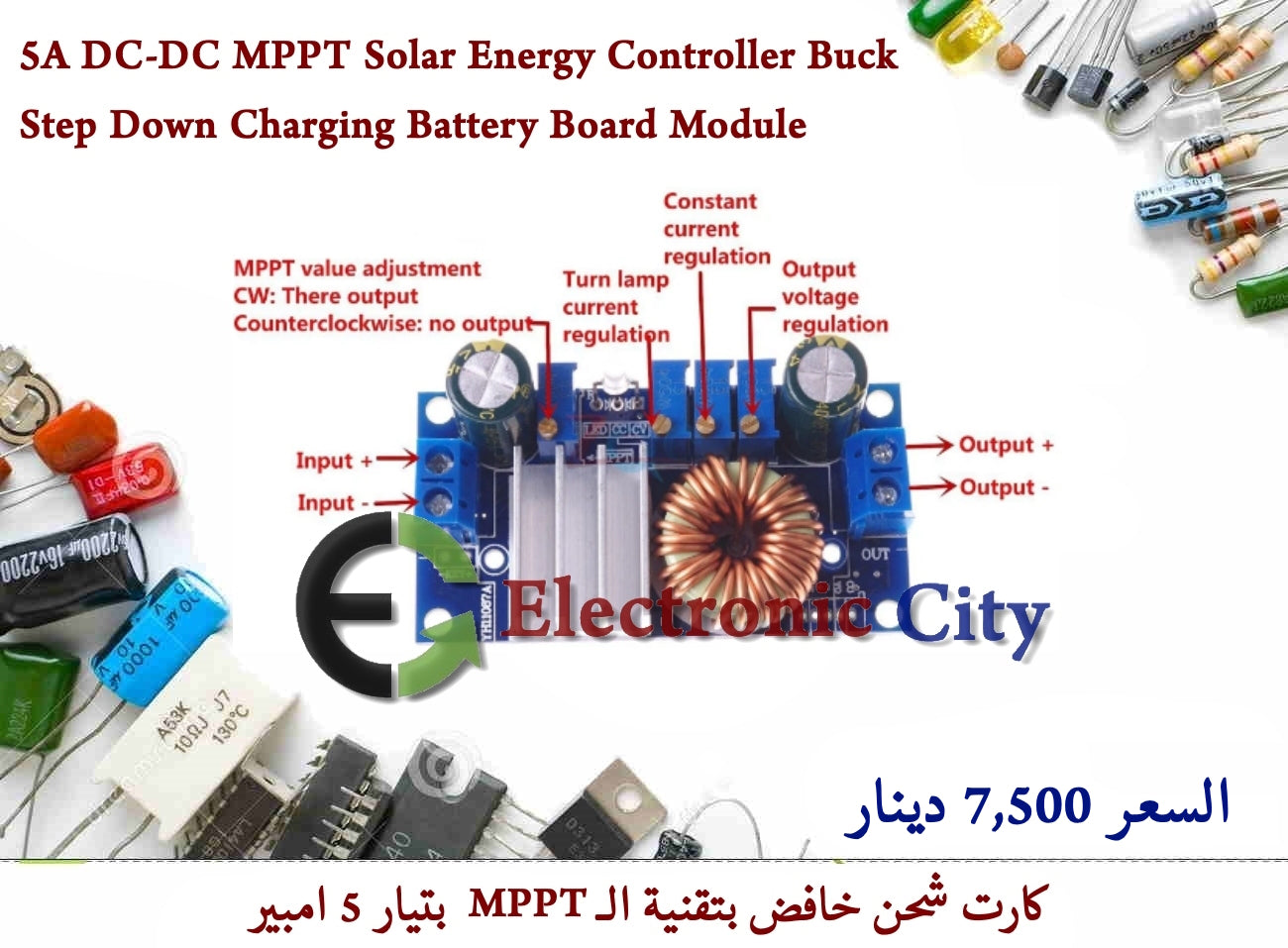

5A DC-DC MPPT Solar Energy Controller Buck Step Down Charging Battery Board Module #G8 011028

5A DC-DC MPPT Solar Energy Controller Buck Step Down Charging Battery Board Module

كارت شحن و خافض للفولتية  يعمل بتقنية ال MPPT بتيار 5 امبير
يمكن استخدامه لشحن مختلف انواع البطاريات عن طريق معايرة الفولتية والتيار
يمكن استخدامها مع الالواح الشمسية لتثبيت فولتية الشحن
يمكن استخدامها كمجهز قدرة خافض للفولتية والتيار

يتوفر بسعر 7,500 دينار

Specifications:

Name: 5A buck constant voltage constant current MPPT
Module Properties: Non-isolated buck module (BUCK)
Input voltage: 6-36V
Output voltage:1.25-32V continuously adjustable (the default output 5V)
MPPT voltage setting range: 6-36V
Output current range: 0.05-5A (The default output current is 3A)
Turn lights output range: 0.01-5A (default turn lamp current 0.3A) the current range will be a little difference because the parts parameter error.
Operating temperature: -40 ~ + 85 degree
Operating frequency: 180KHz
Conversion efficiency: up to 95% (efficiency, input & output voltage, current and pressure-related)
Short circuit protection: Yes
Over temperature protection: (automatically shut off the output after overtemperature)
Input reverse polarity protection: None, (if necessary, please add the string into the diode)
Output anti-anti-irrigation protection: no, the output must be connected to the battery plus blocking diode, otherwise it will burn the module!
Charging indicator: charging red, bright green when fully charged. Turn lamp is the output current detection.
Installation: 4 pcs 3mm screws
Connection: IN is the input, OUT is output
Module dimensions:60 x 31 x 22 mm(without meter)

Applications:

1, DIY a voltage Regulator, with constant current function, Short-circuit proof, can protect the load.
2, It can power supply for electronic devices.
3, For a variety of battery charge, can observe the state of charge.
4, charger for all kinds of batteries, with MPPT function, can enhance the charging current to double. With a constant current and prevents battery overcharge, effective protection of the battery.
5, it can support high-power LED.
6, As a car power supply , it can for your cell phone or digital products supply.
