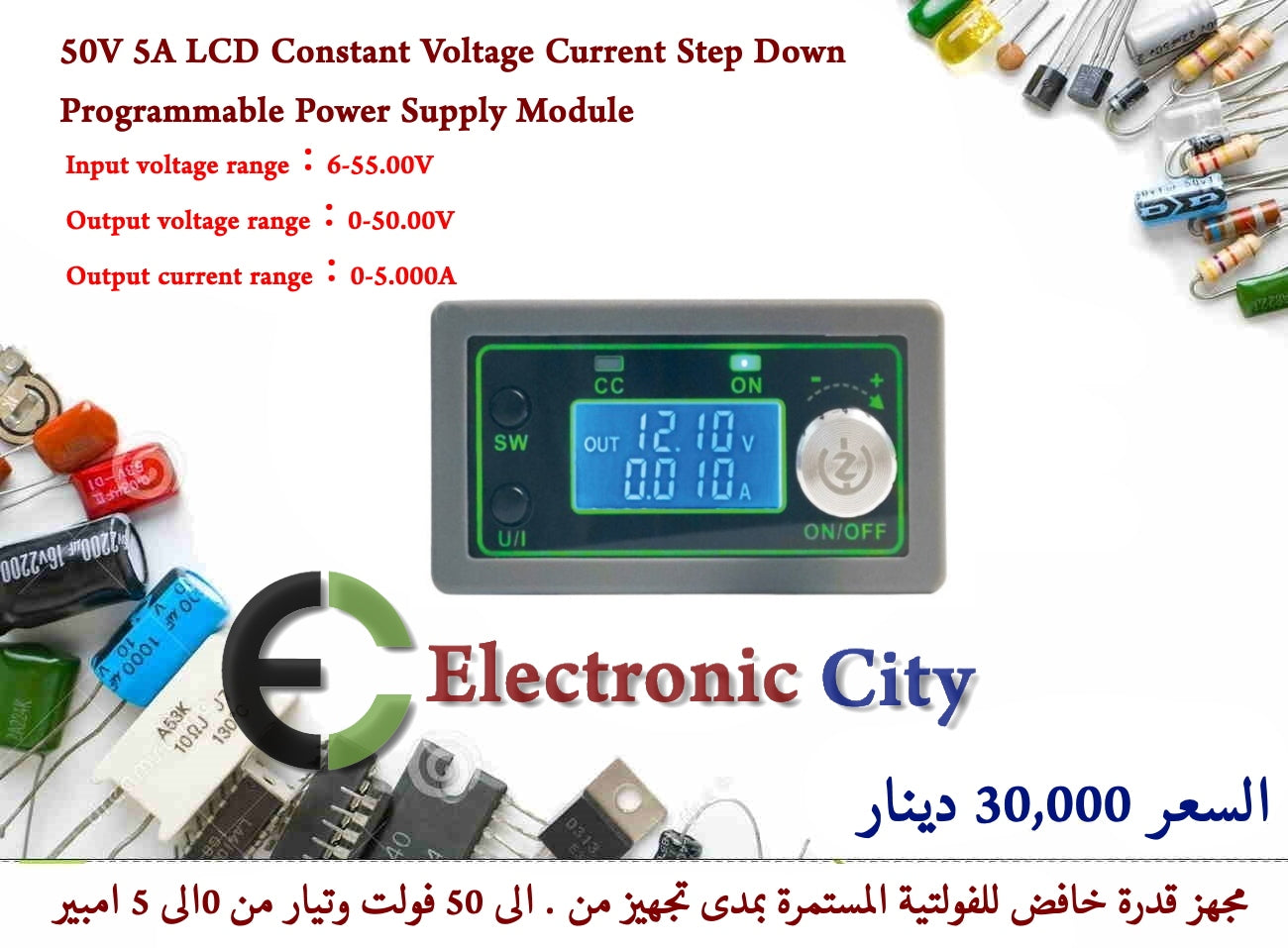

50V 5A LCD Constant Voltage Current Step Down Programmable Power Supply Module #P8 XJ0006

50V 5A LCD Constant Voltage Current Step Down Programmable Power Supply Module

مجهز قدرة خافض لفولتية  (0- 50 فولت ) 5 امبير
جهد الدخول 6 الى 55 فولت

يمكن التحكم بالفولتية والتيار الخارج
يحتوي على حماية من الشورت سيركت والاوفر لود وارتفاع درجة الحرارة

يتوفر بسعر 30,000 دينار


Product parameters:

display：LCD
Input voltage range：6-55.00V
Input voltage resolution：0.01V
Output voltage range：0-50.00V
Output voltage resolution：0.01V
Output current range：0-5.000A
Output current resolution：0.001A
Output power range：0-250.0W
Input voltage accuracy：±(1%+5)
Output voltage accuracy：±(0.3%+5)
Output current accuracy：±(0.5%+5)
Typical value of output ripple：150mV Peak value
Normal operating temperature range：-10℃~40℃
Capacity measurement range：0-99.99AH
Statistical error of capacity energy：
±2%
Statistical time range：0-100 hour
Depressurization mode：differential pressure >0.05%+1V
Including packing weight： 73g
Product size:79X43X42mm

Soft start: Yes
Protection mechanism:
Input anti reverse connection;
Input undervoltage protection (5.8-50v adjustable, default 5.8v)
Output overvoltage protection (0-51.00v adjustable, default 51V)
Output over-current protection (0-5.100a adjustable, default 5.1a)
Output over power protection (0 - 260W adjustable, default 260W)
Timeout protection (0 - 100h adjustable, off by default)
Over capacity protection (0 – 99.99ah adjustable, off by default)
