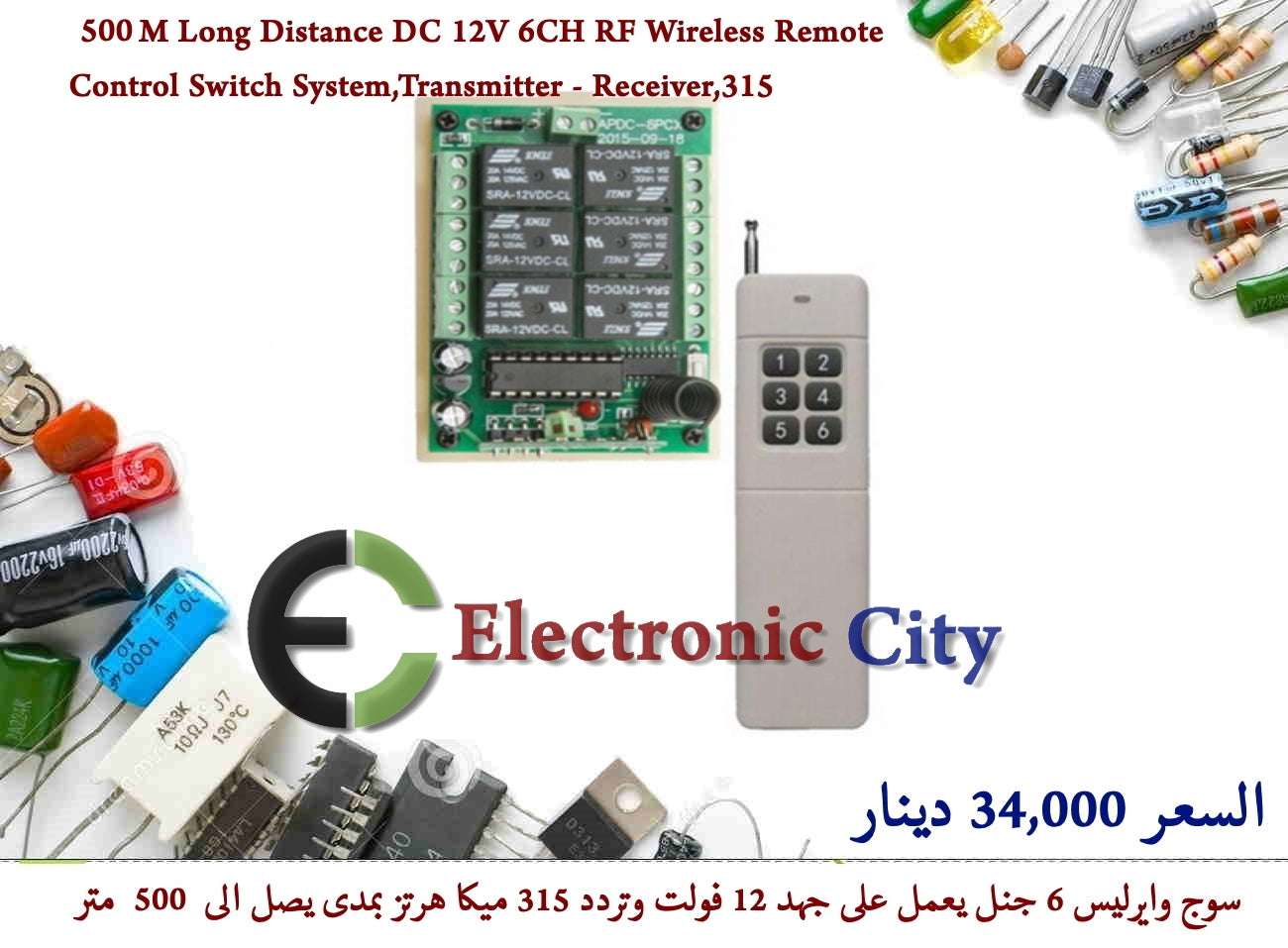

500M Long Distance DC 12V 6CH RF Wireless Remote Control Switch System ,Transmitter - Receiver,315 #N7 X-HX0112A

500M Long Distance DC 12V 6CH RF Wireless Remote Control Switch System ,Transmitter - Receiver,315

واير لس سوج 6 جنل بمدى عالي يصل الى 500 متر
يعمل على جهد 12 فولت  وتردد 315 ميكا هرتز

يتوفر بسعر 34,000 دينار



Specifications:
Control Lights, TVs, Motors, Fans, Cameras, Video signals, Audio signals, electrically operated Doors/ Locks/ Windows.
1.Transmitter
Channel: 6 CH
Remote Control Distance:0-500 M  ( Ideal Distance without any block and signal interfere , it would rise and fall about 10%-90% with the block and signal interference.)
Encode: PT2262
Frequency:315
Size: 91mm x 39mm x 15mm
Power Supply: 1 X 12V 23A Battery (with battery)
2.Receiver
Decode: Fixed code, soldering code
Power Supply (Operating Voltage): DC 12V
Current: 6 mA
Sensitivity:-105 dBm
Operating Temperature:-40‘C - 80’C
1)Toggle/Self-Lock: (Press Button 1 to learn) Press->On; Press again->Off
Press one button for one time is working/ON , press the same button again is stop/OFF .
2)Latched/Inter-Lock: (Press Button 2 to learn) Press->On; Press other button->Off
3)Momentary/Jog: (Press Button 4 to learn) Press and hold->On; Release->Off
Keep pressing one button is working /ON. Loosen your finger is stop/OFF.
4)Momentary & Toggle: (Press Button 3 to learn)  3 Buttons are Momentary and 3 Buttons are Toggle.
5)Toggle & Momentary: (Press Button 5 to learn)  Channel 1 is Toggle , other 5 Channels are Momentary.
(Original Setting is  Momentary , change it by yourself.)
3.Learn code and Remove Code
Learning code:Press the learning button about 2 seconds until the indicator turns on.then press the key (choose 1 2 3 4 5) to learn,the receiver indicator flashes about 4 times,it means learning is finished.
Clear code:Press the learning button about 8 seonds until the indicator flashes 2 times to urn off. it means clear is finished.

pacote inclued:
A:
1 x Receiver(with cover)
B:
1x Transmitter(no battery )
C:
1 x Receiver(with cover)
1x Transmitter(no battery )
D:
1 x Receiver(with cover)
2x Transmitter(no battery )
E:
1 x Receiver(with cover)
3x Transmitter(no battery )
F:
1x Receiver(with cover)
4x Transmitter(no battery )
