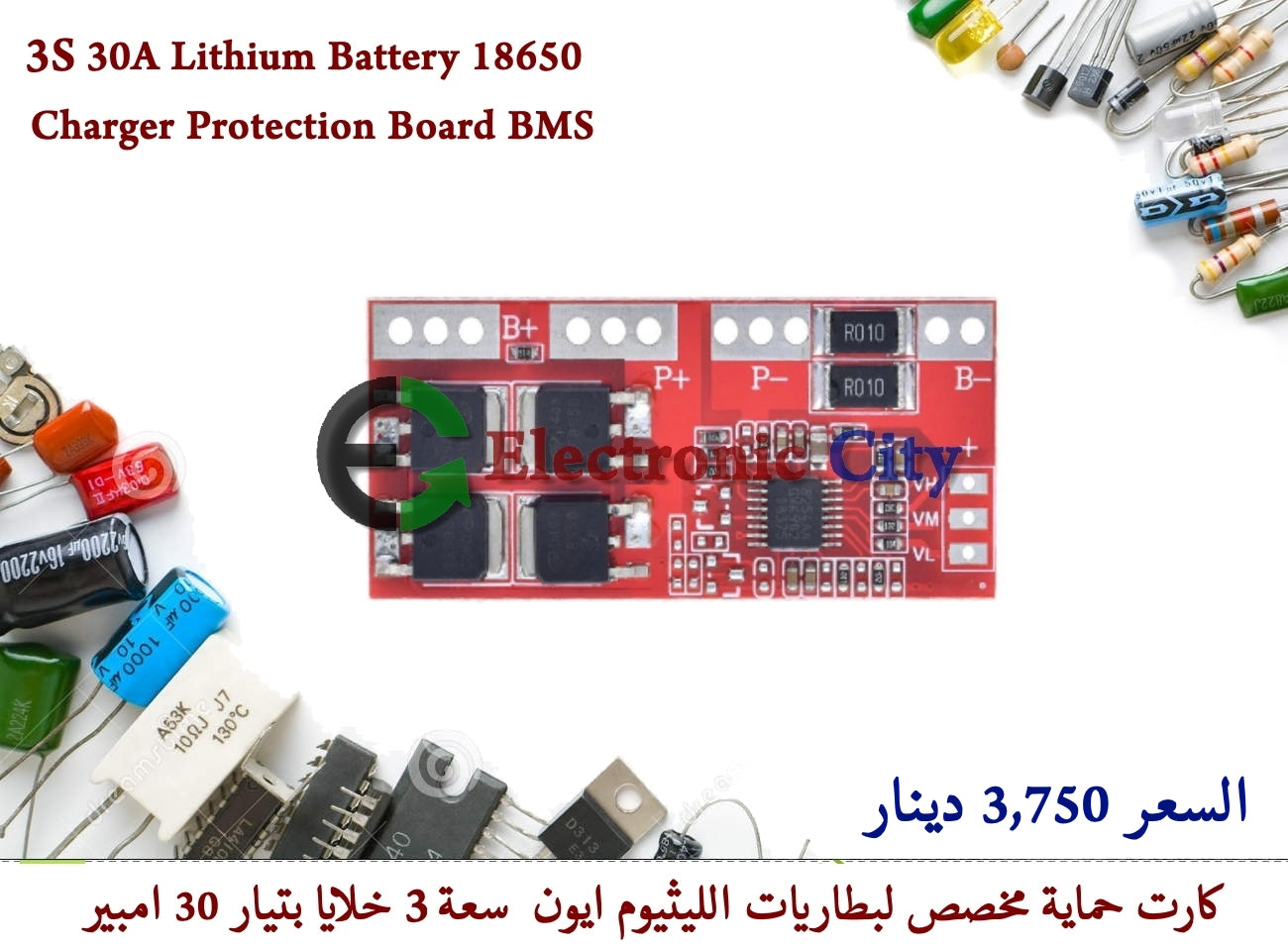

3S 30A Lithium Battery 18650 Charger Protection Board BMS #f2 012412

3S 30A Lithium Battery 18650 Charger Protection Board BMS #f2 012412

Regular price 3,750 IQD
Regular price Sale price 3,750 IQD
Sale تم نفاذ المنتج

3S 30A Lithium Battery 18650 Charger Protection Board BMS #f2 012412

كارت حماية مخصص لبطاريات الليثيوم ايون بتيار 30 امبير يحتوي يستخدم في مجال العدد اليدوية



سعر القطعة 3,750 دينار

Specification:
Module:3S Li-ion Lithium Battery Protection Board
Overcharge detection voltage :4.25±0.025V
Overcharge Lift the voltage:4.15±0.05V
Over discharge detection voltage :2.50±0.08V
Over discharge Lift the voltage:3.00±0.1V
Overcurrent current:30A
Working current:15A(Natural cooling 10.A, add heat sink 15A, the maximum instantaneous current 30A)
Remove protection condition automatic recovery, without activation
Protections:
Short circuit protection
Overcharge protection
Over-discharge protection
Overcurrent protection
Operating temperature: -40-85°
Size: Approx. 50*22*4mm
