Electronic City المدينة الالكترونية

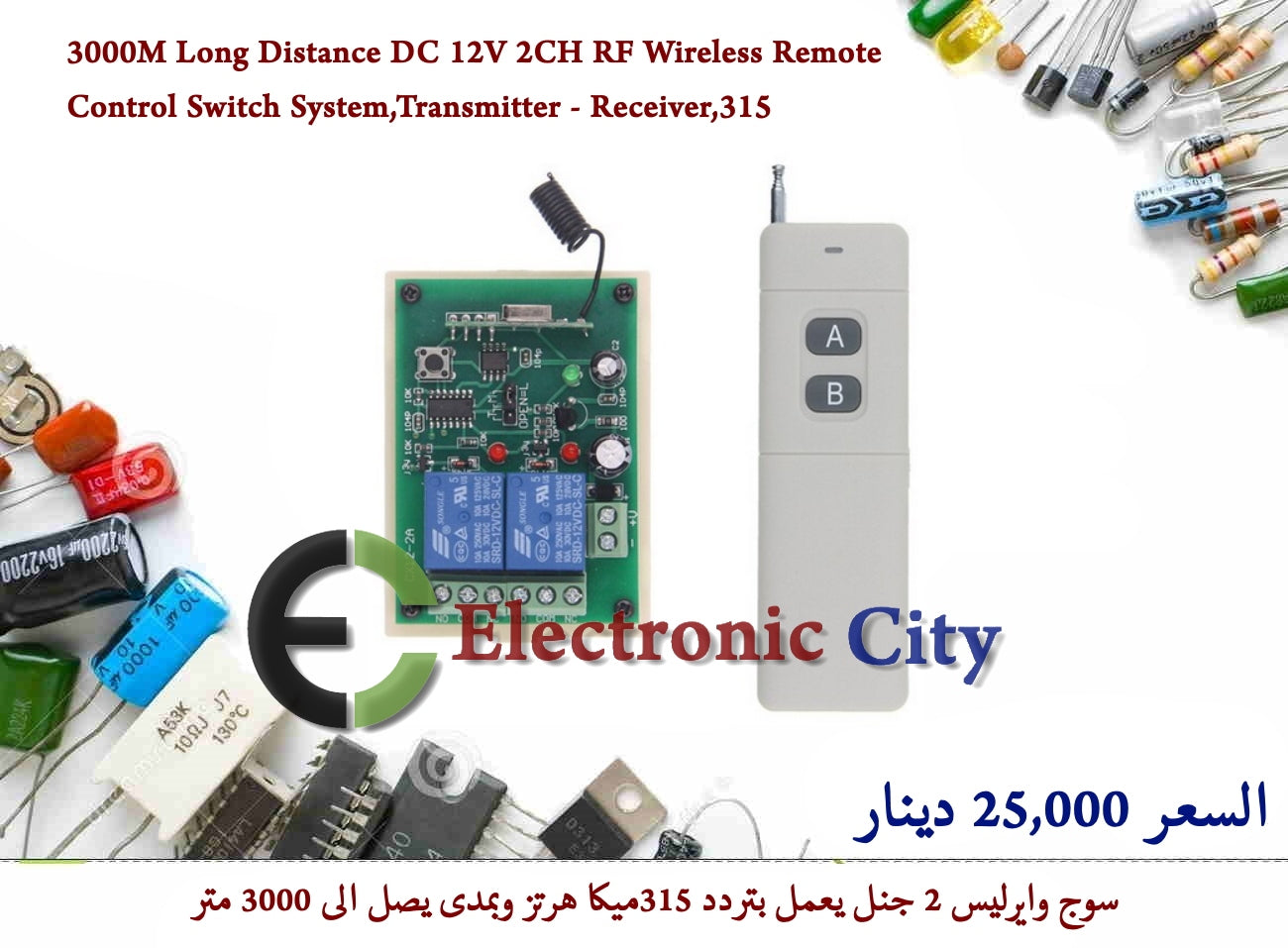

3000M Long Distance DC 12V 2CH RF Wireless Remote Control Switch System ,Transmitter - Receiver,315 #N7 X-HX0111A
3000M Long Distance DC 12V 2CH RF Wireless Remote Control Switch System ,Transmitter - Receiver,315 #N7 X-HX0111A
Regular price
25,000 IQD
Regular price
Sale price
25,000 IQD
Unit price
per
Couldn't load pickup availability
3000M Long Distance DC 12V 2CH RF Wireless Remote Control Switch System ,Transmitter - Receiver,315
سوج واير ليس 2 جنل بمدى عالي يصل الى 3000 متر في المناطق المفتوحة
يعمل على جهد 12 فولت وبتردد 315 ميكا هرتز
يتوفر بسعر 25,000 دينار
Specifications:
Control Lights, TVs, Motors, Fans, Cameras, Video signals, Audio signals, electrically operated Doors/ Locks/ Windows.
1.Transmitter
Channel: 2 CH
Remote Control Distance:0-3000 M ( Ideal Distance without any block and signal interfere , it would rise and fall about 10%-90% with the block and signal interference.)
Encode: PT2262
Frequency:315
Size: 150mm x 42mm x 26mm
Power Supply: 1 X 6F22 9V Battery (NOT included)
2.Receiver
1)Toggle/Self-Lock: Press->On; Press again->Off
press one button for one time is working/ON .press the same button again is stop/OFF .(1 channel switch(receiver) need 1 button remote control (transmitter).
2)Latched/Inter-Lock: Press->On; Press other button->Off
press one button is working/ON ,press another button is stop/OFF . ( 1 channel switch( receiver) need 2 buttons remote control (transmitter).
3)Momentary/Jog: Press and hold->On; Release->Off
Keep pressing one button is working /ON. loosen your finger is stop/OFF .1 channel switch(receiver) need 1 button remote control (transmitter )
(Original Setting is Momentary,can change it by yourself.)
Decode: Fixed code, soldering
Power Supply (Operating Voltage): DC 12V
Relay: 10A/250V AC, 10A/125V AC, 10A/30V DC, 10A/28V DC
Work Voltage Range of Relay: AC 110-240V or DC 0-28V
Sensitivity:-105 dBm
Operating Temperature:-40'C~+80'C
Current:Standby≤10mA,Working ≤80mA
3.Package Included
1 x Receiver (with cover)
1/2/3 x Transmitter (no battery inside)
4.Learn code and Remove Code
1). Learn:press the learning button .the indicator from on to off ,press key A,the indicator flashes and turns off .it means key A learning is successful.
press the learning button .the indicator from on to off ,press key B,the indicator flashes and turns off .it means key B learning is successful.
2).Remove :press the learning button about 5-8 seconds , the indicator turn on to off , it means the Code has been removed successfully.
سوج واير ليس 2 جنل بمدى عالي يصل الى 3000 متر في المناطق المفتوحة
يعمل على جهد 12 فولت وبتردد 315 ميكا هرتز
يتوفر بسعر 25,000 دينار
Specifications:
Control Lights, TVs, Motors, Fans, Cameras, Video signals, Audio signals, electrically operated Doors/ Locks/ Windows.
1.Transmitter
Channel: 2 CH
Remote Control Distance:0-3000 M ( Ideal Distance without any block and signal interfere , it would rise and fall about 10%-90% with the block and signal interference.)
Encode: PT2262
Frequency:315
Size: 150mm x 42mm x 26mm
Power Supply: 1 X 6F22 9V Battery (NOT included)
2.Receiver
1)Toggle/Self-Lock: Press->On; Press again->Off
press one button for one time is working/ON .press the same button again is stop/OFF .(1 channel switch(receiver) need 1 button remote control (transmitter).
2)Latched/Inter-Lock: Press->On; Press other button->Off
press one button is working/ON ,press another button is stop/OFF . ( 1 channel switch( receiver) need 2 buttons remote control (transmitter).
3)Momentary/Jog: Press and hold->On; Release->Off
Keep pressing one button is working /ON. loosen your finger is stop/OFF .1 channel switch(receiver) need 1 button remote control (transmitter )
(Original Setting is Momentary,can change it by yourself.)
Decode: Fixed code, soldering
Power Supply (Operating Voltage): DC 12V
Relay: 10A/250V AC, 10A/125V AC, 10A/30V DC, 10A/28V DC
Work Voltage Range of Relay: AC 110-240V or DC 0-28V
Sensitivity:-105 dBm
Operating Temperature:-40'C~+80'C
Current:Standby≤10mA,Working ≤80mA
3.Package Included
1 x Receiver (with cover)
1/2/3 x Transmitter (no battery inside)
4.Learn code and Remove Code
1). Learn:press the learning button .the indicator from on to off ,press key A,the indicator flashes and turns off .it means key A learning is successful.
press the learning button .the indicator from on to off ,press key B,the indicator flashes and turns off .it means key B learning is successful.
2).Remove :press the learning button about 5-8 seconds , the indicator turn on to off , it means the Code has been removed successfully.
