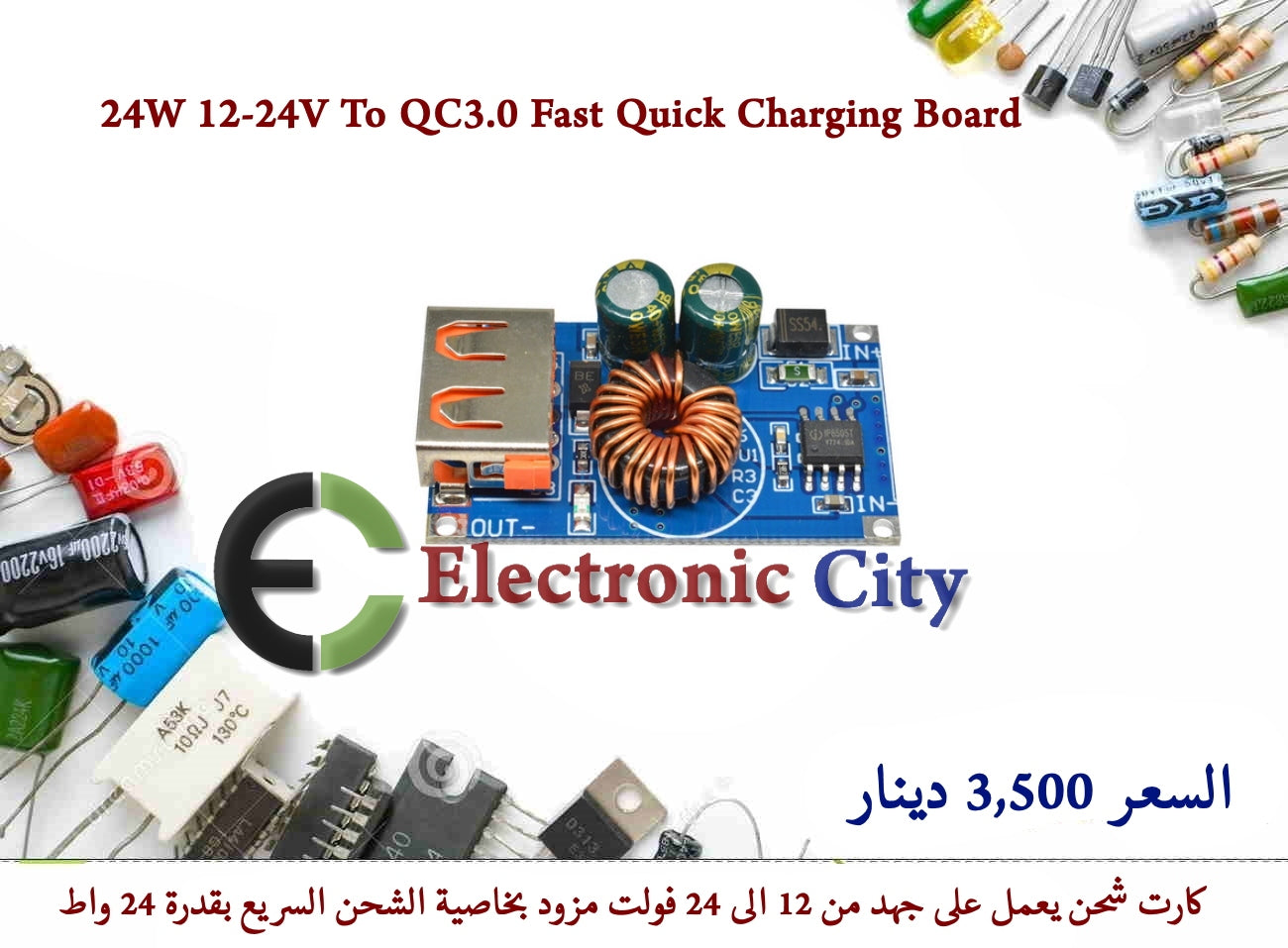

24W 12-24V To QC3.0 Fast Quick Charging Board #G3 X13114

24W 12-24V To QC3.0 Fast Quick Charging Board

كارت شحن يعمل على حهد من 6 الى 32 فولت يدعم خاصية الشحن السريع بقدرة 24 واط متوافق مع جميع الاجهزة التي تدعم خاصية الشحن السريع

يتوفر بسعر 3,500 دينار

 Specification:



Input voltage range: 6V-32V

Output voltage: default 5V, automatically adjust between 3-12V after triggering fast charge

Output power: maximum 24W (5V /3.4A, 9V /2.5A, 12V /2A, etc.)

Output voltage cable compensation function

Conversion efficiency: 90%-97%

Input overvoltage, undervoltage protection

Input overcurrent protection

Output overcurrent, short circuit protection

Machine over temperature protection

Support fast charge agreement

BC1.2, for Apple, for Samsung agreement

QC2.0 and 3.0

MTK PE1.1/PE2.0

for Huawei Fast Charge Protocol FCP, does not support mate9 (SCP)

Spreadtrum Fast Charge Protocol SFCP

Size: 37 * 20 *10 mm
