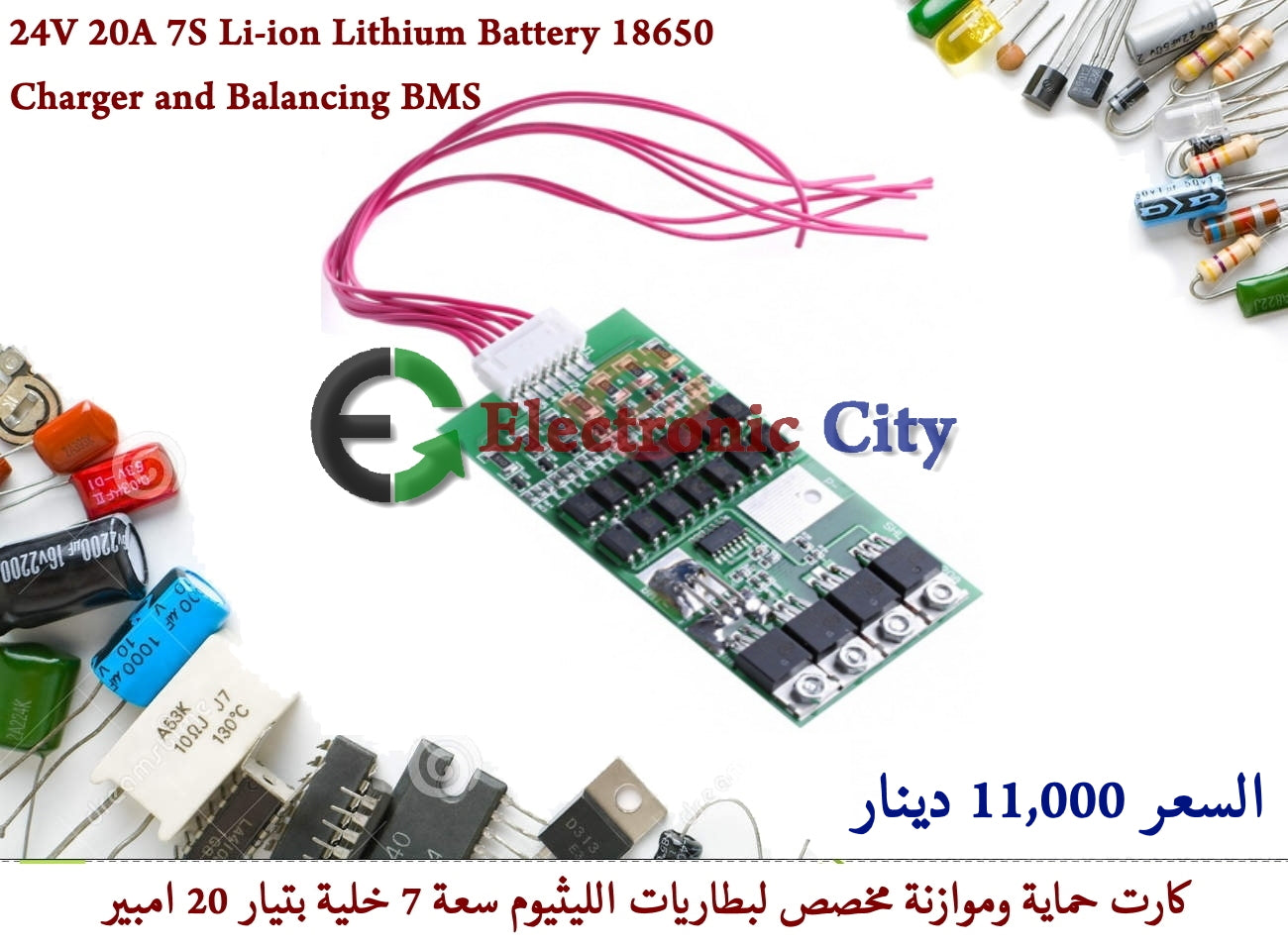

24V 20A 7S Li-ion Lithium Battery 18650 Charger and Balancing BMS #F2 011947

24V 20A 7S Li-ion Lithium Battery 18650 Charger and Balancing BMS

كارت حماية وموازنة في نفس الوقت
مخصص لبطاريات الليثيوم ايون بسعد 7 خلايا وتيار 20 امبير

يتوفر بسعر 11,000 دينار




 Description:
Material: Electrical components
Equilibrium current: 80 mA(VCELL=4.20V)
Supported battery type: 7 cells 4.2V Lithium ion battery
Balancing the locus of control: 4.18±0.03 V
Overcharge threshold: 4.3±0.05 V
Overcharge time delay: 75mS
Overcharge release: 4.1±0.05 V
Discharge threshold: 2.4±0.08 V
Discharge delay: 5mS
Working current: 20 A
Over current threshold: 30 A
Static power: ＜500uA
Overcharge protection function:Yes
Discharge protection function:Yes
Over current protection function:Yes
Balanced protection function:Yes
Over-current release: Disconnect the load release
Short circuit protection function: Yes(Disconnect the load can be recovery.)
