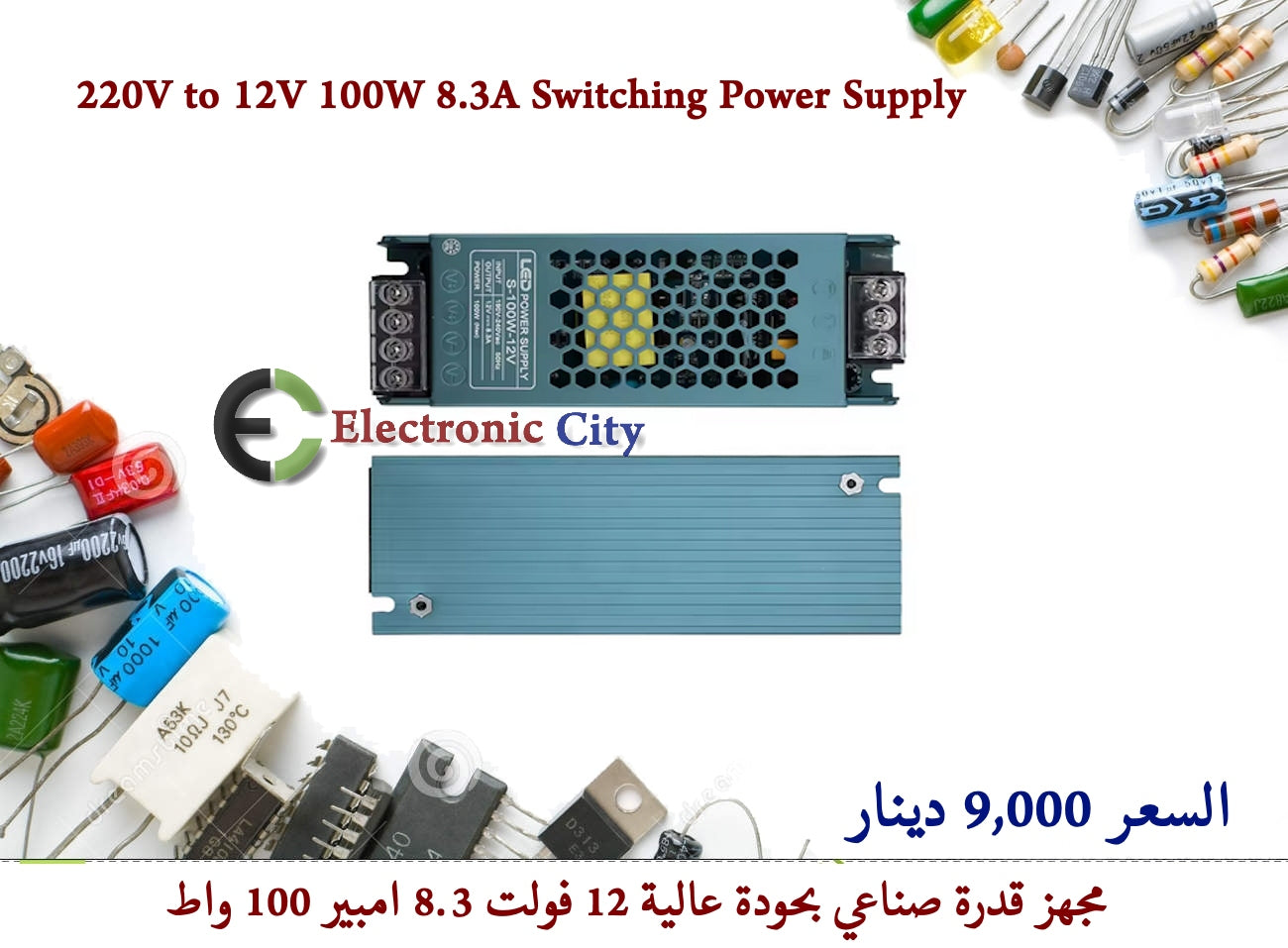

220V to 12V 100W 8.3A Switching Power Supply 012684

220V to 12V 100W 8.3A Switching Power Supply

مجهز قدرة صناعي بجودة عالية
12 فولت 8.3 امير 100 واط

Features：
1. Using high-quality materials, durable and long-lasting
2. Shell hollow design, made of thickened materials, sturdy and safe, with good compressive strength
3. Use terminals that are resistant to aging, impact, and high temperature; Protective covers at both ends can reduce dust and effectively protect electrical safety
4. High quality aluminum shell, combined with honeycomb holes for faster heat dissipation, ensures long-lasting power operation
5. Choose a high-frequency transformer with a wide wire diameter and sufficient power
6. Widely applicable, suitable for various LED advertising light boxes, light boards, etc
Parameter:
Product Name: LED Driver Power Supply
Input voltage: AC190V-240V
Output voltage: DC12V
Power: 100W
Working temperature: 0-60 ℃
Storage temperature: -20~60 ℃
Kind reminder:
AC: AC power
DC: Direct current
L: Connect to the mains power line
N: Connected to the mains zero line
V+: Output positive pole
V -: Output negative pole
ADJ: Output voltage fine-tuning
FG: Connected to the casing
Attention:
Input end: can be used without distinguishing between zero and live wires
Ground wire: To ensure safety and reduce interference, please ensure that the grounding port can be grounded
Output terminal: Do not install the positive and negative poles upside down
When the output terminals+V and - V are connected to LED lights, if the LED lights do not light up, please replace them with+V and - V
