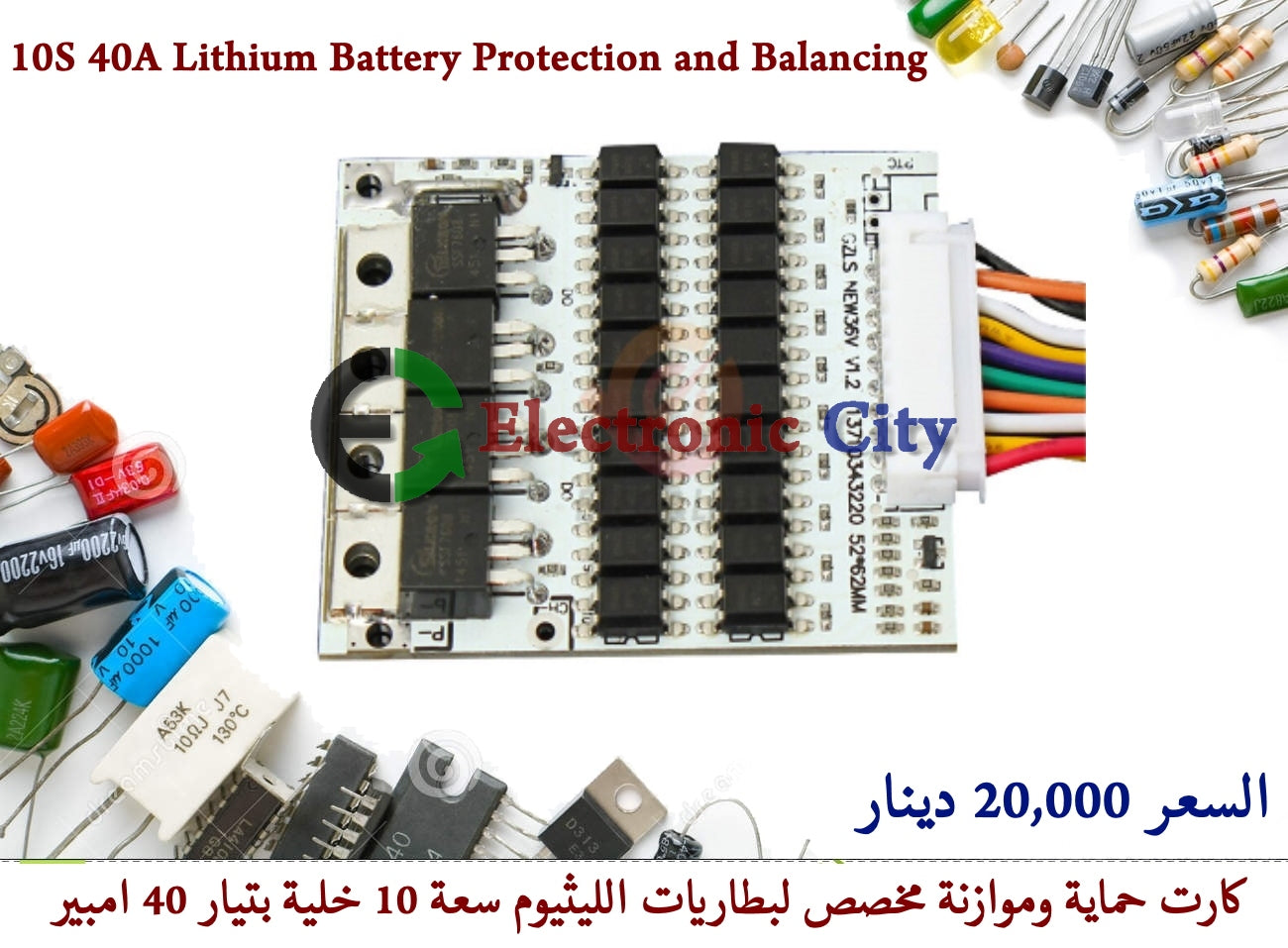

10S 40A Lithium Battery Protection Board and Balancing #F1 012287
10S 40A Lithium Battery Protection Board and Balancing #F1 012287
Regular price
20,000 IQD
Regular price
Sale price
20,000 IQD
Unit price
per
10S 40A Lithium Battery Protection Board and Balancing
كارت حماية وموازنة خاص ببطاريات الليثيوم ايون سعة 10 خلايا بتيار 40 امبير
يتوفر بسعر 20,000 دينار
Features:
Dimensions: 53 * 63MM
Applicable: 36V 10S lithium battery protection board
Type of batteries : lithium cobalt / manganese lithium / ternary materials
Single overcharge protection voltage 4.25V ± 0.05V (4.20-4.35V / / 0.05V per upgrade )
Single overcharge recovery voltage: 4.10-4 .00 V
Single Over-discharge protection voltage: 2.50V ± 0.1V (2.50-3.0V / / every .05 V into the class )
Single Over-discharge recovery voltage: 2.80V ± 0.1V
Protection Current consumption: ≤ 300UA
Short circuit protection current: 40A ± 3A
Short circuit protection time: 500MS
Temperature protection: 55 / 65 / 75 degrees
Discharge Current: 30A
The maximum instantaneous current: 40A
Single balanced voltage: 4.19V ± 0.02V
Single balanced current: ≤ 55MA
Charging current: ≤ 10A
