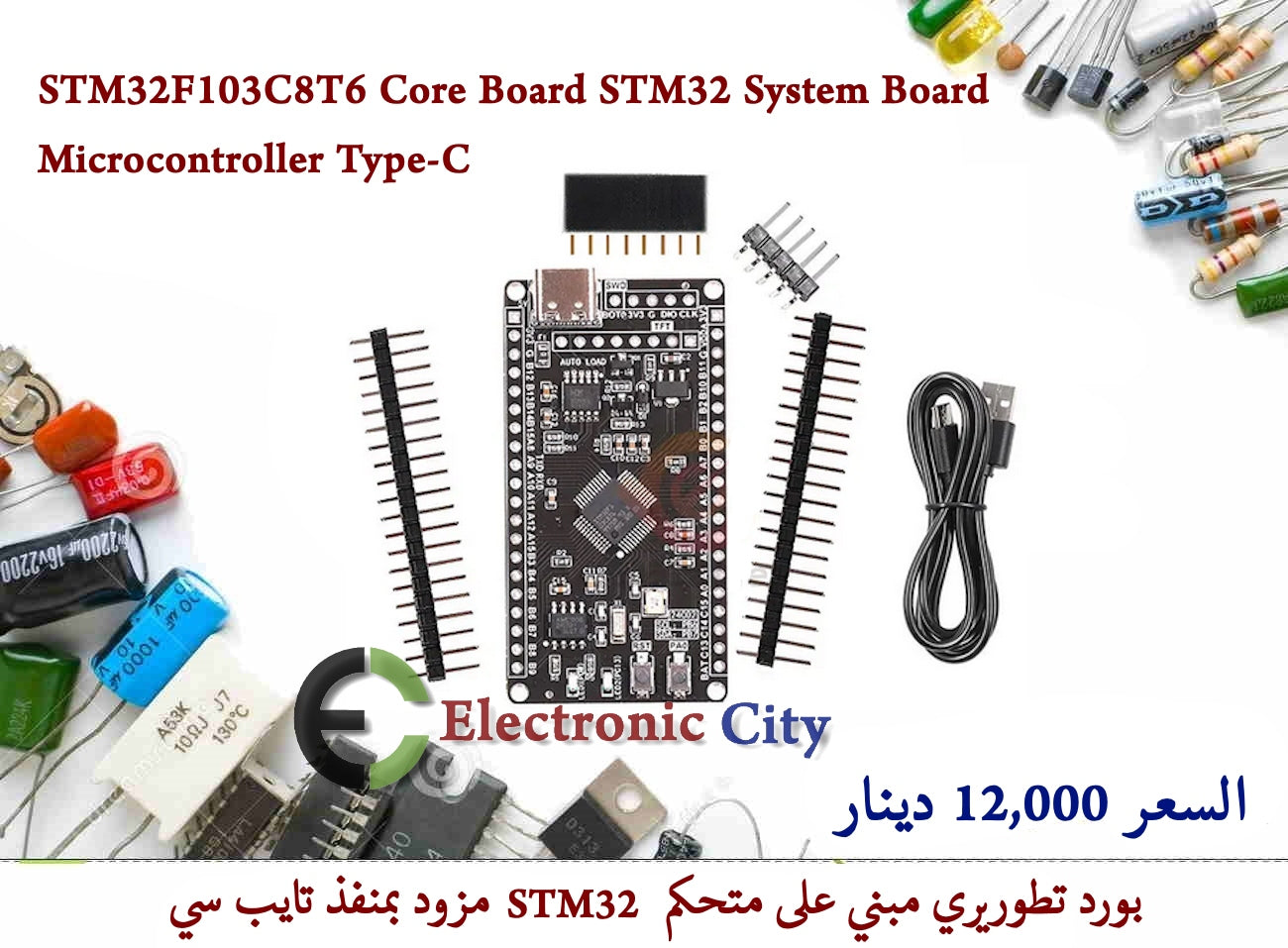

STM32F103C8T6 Core Board STM32 System Board Microcontroller Type-C #Q12 GJBG0002-002

12,000د.ع

المنتج مؤمن خلال التوصيل

المواصفات

STM32F103C8T6 Core Board STM32 System Board Microcontroller Type-C

بورد تطويري مبني على شريحة STM32 (STM32F103C8T6 )

تتوفر بسعر 12,000 دينار

Features:

1.Black plate making process, beautiful layout, high-quality GPIO all lead out, and free welding of pins;

2.Entry level configuration STM32 chip (STM32F103C861) LQFP48 package, 72M main frequency, 64-FLASH, 20K-RAM;

3.Equipped with power indicator light, onboard 8M crystal oscillator/RTC crystal oscillator, onboard programmable, and onboard 24CO4 data storage for convenient storage;

4.USB serial port one click download, convenient for program updates, supporting our store's OLED and TFT LCD screens, plug and play;

5.SWD debugging interface, suitable for various general-purpose simulators, with the motherboard equipped with reset buttons and user operation keys;

6.Introduction to Delivery Development Environment/Simple Routine/STM32 Development Materials.

Parameter Description:

High speed crystal oscillator: 8MHz

Low frequency crystal oscillator: 32.768K

Data storage: 24CO2

Power supply+programmable LED light

All CPU-IO outputs

2.54mm integer multiple spacing pin

TFT LCD interface: supports connection to 1.44 inch full color LCD and 1.8 inch full color LCD

12,000د.ع
