DC 3V-30V 3A Touch switch sensing module #N1 012498
2,000د.ع
المنتج مؤمن خلال التوصيل
المواصفات

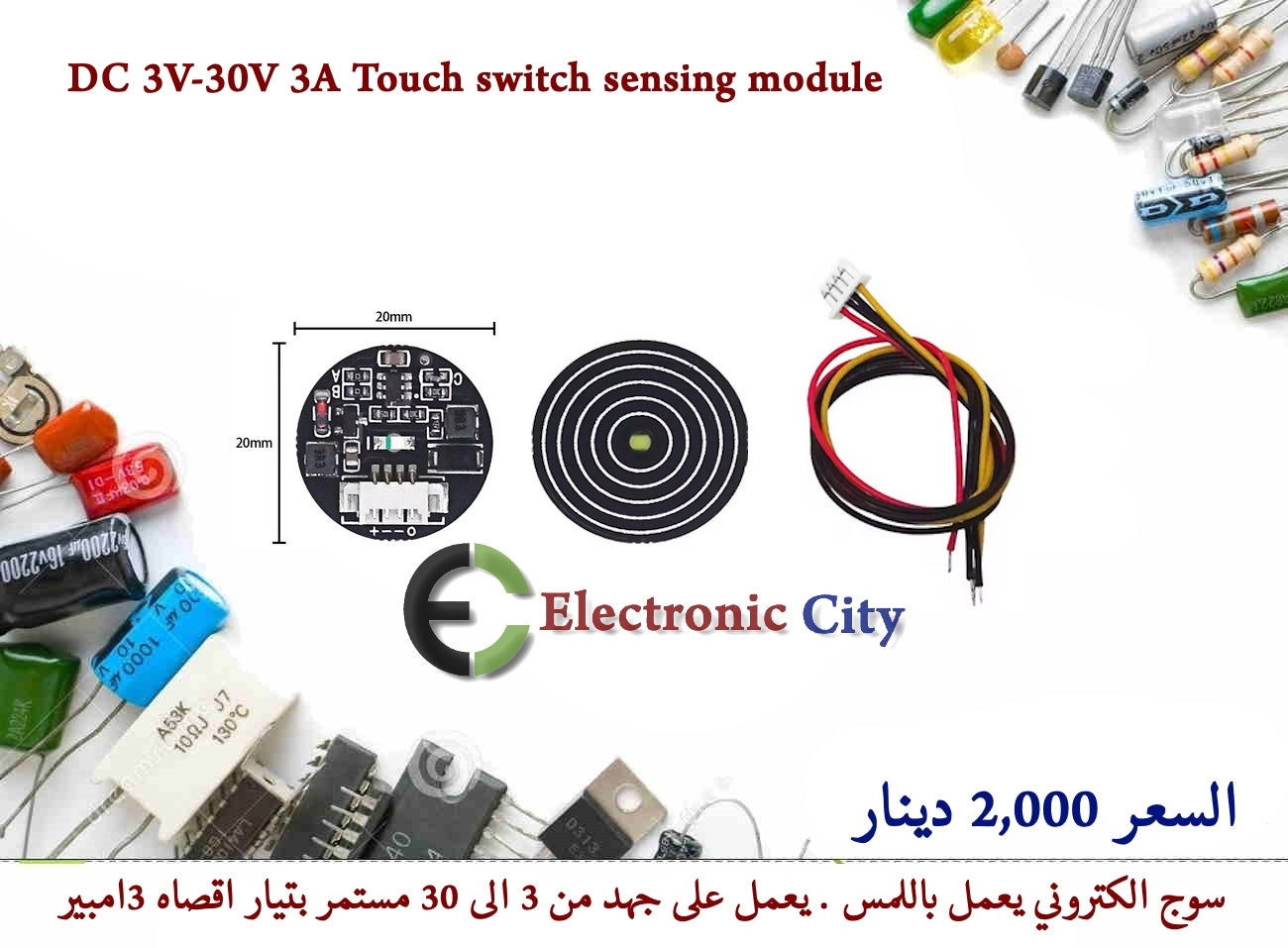

DC 3V-30V 3A Touch switch sensing module
سوج الكتروني يعمل باللمس
يعمل على جهد من 3 الى 30 فولت مستمر
وتيار خرج اقصاه 3 امبير
يتوفر بسعر 2,000 دينار
ABC three custom function description
*A (default 0R resistance)
Select the output status after power-on
When there is 0R resistance at point A, the output is turned off after power-on.
When there is no 0R resistance at point A, the voltage is directly output after power-on
*B (default 0R resistance)
Latch mode, click mode
Latch mode when point B has 0R resistance (click on/off)
Point B without 0R resistance is the point mode (touch has output, release no output)
*C Sensitivity adjustment
Adjust the distance of touch sensing, default is the maximum distance (7-8mm)
If you want to reduce the sensitivity, you can install a capacitor of 1~50PF according to the actual situation, the smaller the capacitor, the higher the sensitivity, and the larger the capacitor, the lower the sensitivity
