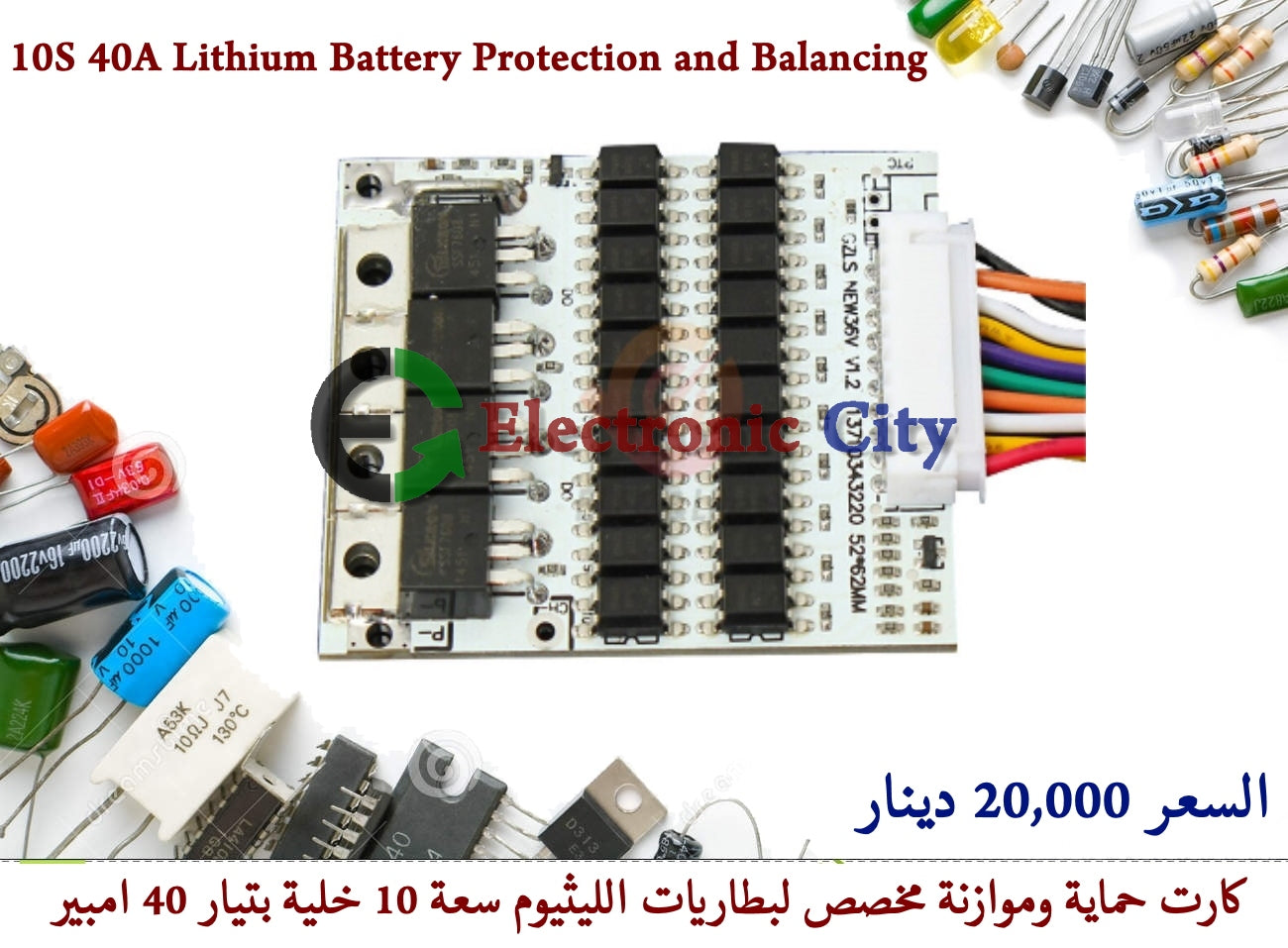

10S 40A Lithium Battery Protection Board and Balancing #F1 012287

10S 40A Lithium Battery Protection Board and Balancing

كارت حماية وموازنة خاص ببطاريات الليثيوم ايون سعة 10 خلايا بتيار 40 امبير

يتوفر بسعر 20,000 دينار




Features:
Dimensions: 53 * 63MM
Applicable: 36V 10S lithium battery protection board
Type of batteries : lithium cobalt / manganese lithium / ternary materials
Single overcharge protection voltage 4.25V ± 0.05V (4.20-4.35V / / 0.05V per upgrade )
Single overcharge recovery voltage: 4.10-4 .00 V
Single Over-discharge protection voltage: 2.50V ± 0.1V (2.50-3.0V / / every .05 V into the class )
Single Over-discharge recovery voltage: 2.80V ± 0.1V
Protection Current consumption: ≤ 300UA
Short circuit protection current: 40A ± 3A
Short circuit protection time: 500MS
Temperature protection: 55 / 65 / 75 degrees
Discharge Current: 30A
The maximum instantaneous current: 40A
Single balanced voltage: 4.19V ± 0.02V
Single balanced current: ≤ 55MA
Charging current: ≤ 10A
